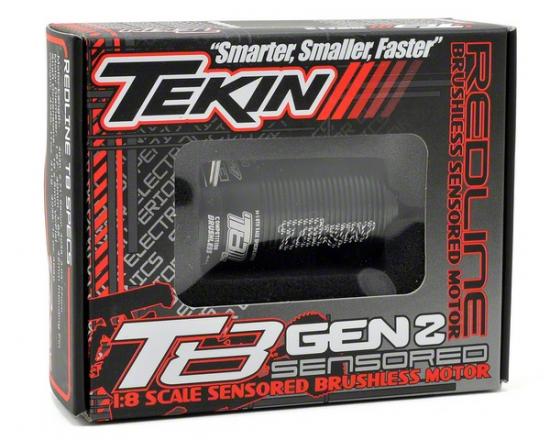

Tekin T8 Gen2 4030 1:8 BL Motor 1700kv Sensored/Sensorless 40x69mm

The Tekin Redline T8 GEN2 4030 1700kV brushless motor (TT2358) is engineered for 1/8 scale buggy competition, delivering smooth, pro-level control with robust power. Operating in both sensored and sensorless modes, it offers reliable on-track performance and tuning flexibility. Pair it with Tekin’s RX8 Electronic Speed Control for a cohesive power system solution.

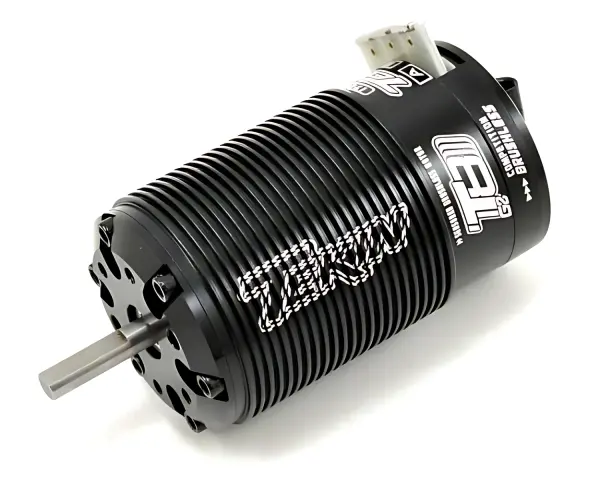

Built around a CNC-machined 6061-T6 billet aluminium ribbed heatsink can, the T8 GEN2 is designed to manage heat effectively. High current solder tabs and a rebuildable design support long-term serviceability, while a neodymium sintered magnet and precision engineering focus on efficient energy conversion. A dual-plug sensor wire harness further enhances installation options.

Compact 40mm diameter sizing (42mm including fins) and a 69mm can length make this 4030-class motor a strong choice where space and weight balance matter. A 19 x 5mm shaft with flat aids secure pinion fitment. The 1700kV rating is well-suited to typical 1/8 buggy gearing when targeting strong acceleration and controlled top speed.

Features

• CNC machined 6061-T6 billet aluminium ribbed heatsink can
• Sensored and sensorless operation
• High current solder tabs
• Rebuildable design
• Neodymium sintered magnet
• Precision engineered for maximum energy conversion
• Dual-plug sensor wire harness

Specifications

• KV rating: 1700
• Shaft dimensions: 19 x 5mm with flat
• Motor diameter: 40mm (42mm including fins)
• Motor length: 69mm

Suggested Compatibility

• 1/8 scale buggy platforms
