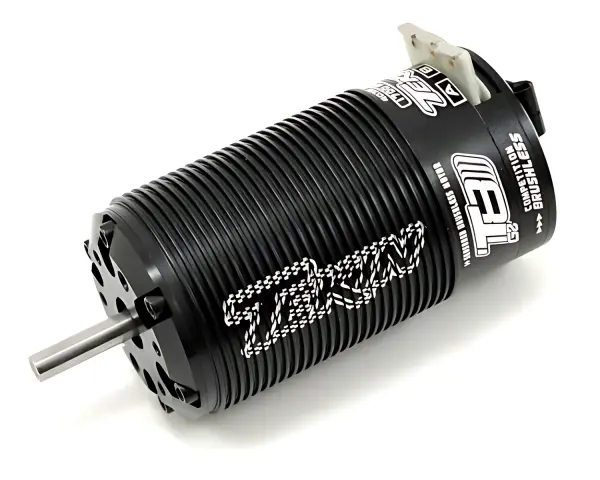

Tekin T8 Gen2 4038 1:8 BL Motor 1700kv Sensored/Sensorless 40x77mm

The Tekin Redline T8 GEN2 4038 1700kV is a 1/8th scale truggy competition brushless motor that delivers pro-level controllability and reliable on-track performance. It offers true sensored operation for smooth throttle response, with the flexibility to run sensorless when required. Housed in a CNC-machined 6061 T6 ribbed heatsink can, the T8 GEN2 combines power and efficiency in a robust, rebuildable package. Part number TT2367.

Pair the T8 GEN2 with Tekin’s RX8 Electronic Speed Control for a matched power system. Key sizing includes a 40mm diameter can (42mm including fins), 77mm length and a 19 x 5mm shaft with flat. High-current solder tabs and a dual-plug sensor harness support straightforward installation and maintenance.

Suggested compatibility: 1/8 scale truggy race platforms.

Features

• CNC machined 6061 T6 billet aluminium ribbed heatsink can
• Sensored and sensorless operation
• High current solder tabs
• Rebuildable design
• Neodymium sintered magnet
• Precision engineered for maximum energy conversion
• Dual-plug sensor wire harness

Specifications

• KV rating: 1700
• Shaft dimensions: 19 x 5mm with flat
• Motor diameter: 40mm (42mm including fins)
• Motor length: 77mm
