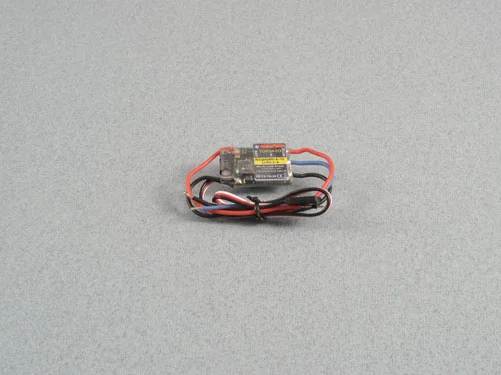

Fusion Tornado BL 8A ESC N6–12 / Li 2–4 (P-FS-TBL08)

The Fusion Tornado BL 8A (P-FS-TBL08) is a compact, lightweight brushless electronic speed controller designed for versatile RC use. It supports 6–12 NiCd/NiMH cells or 2–4 Li-Po cells and features a built-in 5.5V BEC to power your receiver and servos. Suggested compatibility spans aircraft, helicopter, boat and car applications via selectable modes.

Features

• Compact and light weight
• 'Cool Power' FET technology
• Safe Start to help prevent accidental motor start-up
• Low Voltage Cut-Off based on selected battery type (NiCd, NiMH, Li-Po)
• Designed in conjunction with Fusion brushless motors; suggested compatibility with a wide range of brushless motors
• Advanced programming available with the optional programmer

Programmable Without Optional Programmer

• Battery Type: Li-Po / NiCd / NiMH
• Direction of Rotation: Normal / Reverse
• Brake (Air): On / Off
• Governor (Heli): On / Off
• Reverse (Car, Boat): On / Off
• Model Type (Air/Heli): Aircraft / Helicopter
• Model Type (Boat/Car): Boat / Car

Key Specifications

• Continuous current: 8A
• Peak current: 12A
• NiCd/NiMH cells: 6–12
• Li-Po cells: 2–4
• BEC: 5.5V (max 2A)
• Dimensions: 35 x 22 x 7 mm
• Weight: 15 g
