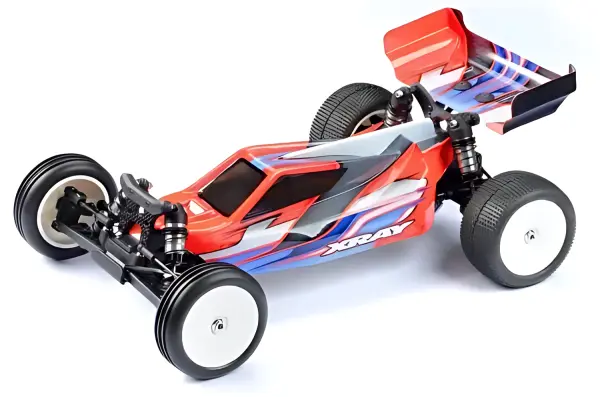

XRAY XB2D 27 Dirt Edition RC Buggy Model XR320023

XRAY XB2’27 All-new Features

• Modified chassis to accommodate the optional narrow suspension holder
• Countersunk aluminum components for easier installation with the optional steel chassis
• Graphite ball joints reduce friction & ensure smoother operation under load
• +2mm longer steering arms for increased steering response
• Modified steering plates to accommodate the longer steering arms
• Carbon steering block extensions repositioned rearward for increased steering response
• Longer titanium shock standoffs for improved shock angle & optimized suspension geometry, included only in carpet version.

Chassis

The proven XB2 2.5mm aluminum chassis design has been further refined for 2027 with a modified suspension mounting area that accommodates the new optional narrow suspension holder.

The new mounting configuration expands the XB2 chassis tuning possibilities and allows racers to further adjust the suspension geometry and vehicle characteristics to suit different track conditions.

The XB2C continues to use the mid-length 2.5mm chassis to provide excellent stability in higher-traction conditions, maximizing cornering speed and consistency.

The XB2D features the short 2.5mm chassis designed to maximize rear traction on lower-traction dirt tracks, improving forward acceleration and stability on rough and irregular surfaces.

Both chassis plates are CNC-machined from high-quality 2.5mm Swiss 7075 T6 aluminum and feature strategically milled sections to optimize chassis flex, traction, stability and overall handling.

Steel Chassis Ready

For 2027, selected aluminum components feature a new countersunk design to make installation of the optional steel chassis easier and more convenient.

The updated components allow the mounting hardware to sit properly within the aluminum parts when the steel chassis is installed, creating a cleaner assembly and simplifying the chassis conversion.

This detail makes switching between the standard aluminum chassis and the optional steel chassis quicker and easier, allowing racers to adapt the XB2 to different track conditions.

Heavy Duty Titanium Turnbuckles

The XB2 now features ultra-lightweight & strong titanium turnbuckles all made in-house in Europe.
The titanium turnbuckles enhance performance in all conditions.
The turnbuckles are very durable thanks to their heavy-duty design and the premium titanium materials.

Steering system

The XB2’27 steering system has been refined with new +2mm longer steering arms and redesigned steering plates. Together, these updates provide more direct steering response, increased precision and a more connected steering feel.

New +2mm longer steering arms provide a more direct and responsive steering characteristic while maintaining smooth and predictable control throughout the corner.

The steering plate have been redesigned to work with the new longer steering arms and optimized steering geometry.

Together, the updated steering arms and steering plates create a more responsive steering system while maintaining the adjustability required to fine-tune the XB2 for different track surfaces and traction conditions.

The steering system retains generous clearance around all components for easy maintenance and quick set-up changes.

Steering Blocks

The XB2’27 features new carbon steering block extensions with revised geometry that repositions the steering linkage further rearward for increased steering response and precision.

The revised steering link position provides a more direct and responsive steering feel while maintaining smooth and predictable handling throughout the corner.

The included steering blocks are moulded from XRAY’s stiffest Graphite composite material to further increase steering response and precision.

Different steering block hardness alternatives are available to fine-tune steering characteristics for different track conditions.

Titanium Shock Mounts

The XB2C’27 features new longer titanium shock standoffs designed to improve the rear shock angle and optimize suspension geometry.

The revised shock position provides more effective suspension movement and helps improve overall handling, consistency and traction in high-traction conditions.

Machined from premium titanium, the shock standoffs combine low weight, high strength and maximum durability.

The XB2C’27 is equipped with the new longer titanium shock standoffs, while the XB2D’27 continues to use the standard-length titanium shock standoffs.

Suspension Holders

The suspension holder design maximizes durability. Each respective kit features optimized geometry out of the box, ready to hit the track.

The XB2C comes with a 1-degree D-block while the XB2D includes the 3-degree D-block. Thus, the Carpet kit features less toe-in, to free up the rear on high traction tracks. The Dirt kit has more toe-in, to generate more rear traction on a loose surface. The blocks also allow for a wider track width adjustment range for both kit versions.

The aluminum suspension holders feature Integrated Suspension Settings (I.S.S.™) for quick & easy suspension geometry set-up.

Machined from premium Swiss 7075 T6 aluminum and black coated.

Rear Roll Center Holder

The aluminum rear roll center holder is included in each kit. Its milled area acts as a centering guide for the anti-roll bar collar to eliminate play and improve the precision of the anti-roll bar movement.

The holder provides multiple camber link pivot ball mounting positions for fine tuning the rear suspension roll center.

Shock Towers

The rear 6-dot shock tower in the XB2C improves stability and prevents the rear suspension from collapsing during high speed cornering.

Shock towers feature low but responsive geometry for both front and rear suspension assemblies. Lowering the shocks’ upper mounting point increases stability and cornering speed and gives a more precise feeling when changing direction. With increasing car speeds and traction levels on carpet, the lowered shock locations increase stability and improve the overall handling of the car.

Both front & rear shock towers complement the big bore shocks and suspension geometry of the XB2.

Front & rear shock towers are machined from premium-grade carbon fiber that is lightweight & strong, with multiple shock adjustment positions.

Shock Mounting Adapter

XRAY’s unique lower shock mounting adapters offer two mounting alternatives to create different stability characteristics while lowering the overall shock placement and CG. The inner shock mounting position increases reactivity of the car, while the outer position increases stability. The Shock Mounting Adapters are suggested for higher traction conditions and as such are included in XB2C only.

Big Bore Shocks

The shock absorbers feature a 1mm shorter shock cap. The shorter shock cap provides greater up-travel during suspension compression to maximize suspension performance in certain conditions and set-ups.

The big bore 13.2mm shock bodies and shock shafts have been shortened to match the lower shock towers and achieve the desired geometry while maintaining proper suspension travel.

The big bore shocks improve overall handling, jump landings, and bump absorption. The X-rings provide smooth operation & superior dust resistance. Two different piston thicknesses are included in the kit for tuning along with blank pistons for additional tuning possibilities.

The big bore shocks improve landings and provide better control over surface unevenness and bumps to improve traction.

There are two different thickness pistons (2.0 and 2.5mm) included in the kit in pre-drilled and blank alternatives.

The super-efficient pre-oiled X-rings ensure smooth operation and prevent dust inside the shock assembly.

The shock absorbers are universal for both Dirt and Carpet editions.

Shock Springs

4-dot front & rear springs are included in the XB2C to improve box-stock performance on most carpet tracks. The stiffer spring combination works together with the shock geometry to provide more consistent handling on carpet and other very high traction conditions.

The full range of conical springs are compatible with Big Bore but also Shorter Big Bore shocks.

The XB2C includes 4-dot front and rear springs; the XB2D includes 1-dot springs for both front and rear.

The XB2 springs, like all other XRAY springs, are manually measured, selected, and matched into pairs to guarantee precisely equal length and damping characteristics.

Each spring is laser-engraved with marks to clearly indicate its firmness.

Shock Adjustments

The XB2C features a -6mm lower shock spring collar to reach lower ride height settings needed on smooth high traction surfaces.
The spring collars and lower ball joints are available in various sizes to allow easy adjustment of ride height and droop.

The spring collars are available in 4 different heights: 0mm, -2mm, -4mm, and -6mm. This allows for a wider range of ride height adjustments without requiring a different spring length. Using a lower collar will lower the minimum ride height for a given spring length.

The ball joints are available in 3 different lengths: 0mm, +2mm and +4mm. This allows for a convenient droop adjustment. Using a longer ball joint will increase the overall shock length and will increase the suspension droop at full extension.

Shock Pistons

The piston choices were chosen for ideal fit and dampening in the bore shock bodies. The  2-hole pistons (1.6 and 1.8mm) are included in 2.0mm or 2.5mm thickness alternatives. In addition, two sets of blank pistons in both thickness alternatives are included for individual custom modification.  All pistons are made from Delrin and are molded using ultra-high precision moulds.

Wings

To further improve consistency on lower traction dirt tracks, a wider rear wing is included in the XB2D kit.  The wider rear wing provides more overall downforce, increases traction and enhances rear stability.

The rear wing generates exceptional traction and jump stability while offering a long lifespan. The wing features pre-marked mounting holes for easy installation.

A rear wing is included in both Carpet & Dirt editions. The “Lush” rear wing has high levels of downforce & low drag to improve overall performance. The wing generates high levels of traction but maintains easy jumping characteristics. The wing has pre-marked mounting holes and a design that significantly increases lifespan.

Made from strong Lexan™ material, the wing is supported on the wing mounts by extended flat shims to better support and extend the life of the wing. Lush Thick wing is available as option for even better toughness.

The front and rear wings are included in both XB2 versions:

The front Wide Ribbed wing works perfectly with the Epsilon body to increase front downforce, while the rear wing generates maximum traction and provides jump stability.

Both front & rear wings feature pre-marked mounting holes for easy installation.

Gear Differential

Lighter diff outdrives reduce rotational mass, improving acceleration, braking, and drivetrain efficiency.
The Carpet Edition’s gear diff unified drive shaft lengths for ball and gear differentials, requiring no additional parts to swap between differential types. The revised external diff parts made the reduced width possible. Steel gears are included for maximum durability.

The gear diff comes with steel satellite gears for improved efficiency and increased lifespan.

The gear differential is suggested for medium to high traction conditions as it increases on-power steering and is beneficial on all carpet tracks.

Ball Differential

The XB2D ball differential offers great performance, durability, and easy maintenance. HUDY Super Diff Grease included in the XB2D for the most consistent smooth & longest-lasting ball differential assembly.

The externally adjustable ball differential outdrives are machined from HUDY Spring Steel™ and additionally hardened for extra durability and a longer lifespan. A high-quality carbide thrust bearing and carbide balls are included for ultra-smooth operation. The outdrive adapters are designed for use with 2.5mm pin drive shafts.

The ball differential is suggested for all types of dirt tracks and for bumpy Astro tracks and is included in the XB2D only.

Wheel Hubs

The XB2C comes with wider offset wheel hubs - rear 5 slot & front 2 slot, for a more consistent handling on all carpet conditions.

Ultra-lightweight 12mm wheel hex drive hubs are CNC-machined from Swiss 7075 T6 black-coated aluminum. These ultra-true hex hubs have a clamping design which ensures ultra- solid mounting of the wheel on the hub.

The rear alu hex hubs are specially machined to reduce rotating weight while guaranteeing wobble-free wheel mounting.

To adjust track-width, optional offset wheel hex drive hubs are available.

Flat Chassis Brace

The bottom aluminum Flat Chassis Brace is XRAY’s innovative concept in the off-road category to adjust flex to match the traction levels of the track. This brace is mounted directly onto the chassis and is connected with the rear gearbox and RF suspension holder.
The Flat Chassis Brace is significantly lower, lighter, and allows for extremely simple yet powerful flex adjustments.
The flex of the brace is adjustable by adding or removing screws to create the perfect flex characteristics for any conditions.
Two types of Flat Chassis Braces are available, each one specifically for either the 5 or 3 gear transmissions.

Side Braces

Longer side braces match the chassis design.  The longer braces extend the longitudinal chassis flex control to improve consistency on the track.
The left side brace also allows for a fan to be mounted directly to the brace for enhanced motor cooling.
The side braces support the one-piece chassis design and connect with the front end. The flex of the side braces was optimized to improve front stability & rear traction.  The braces feature several mounting holes for the battery holders to provide sufficient range of battery position choices.
The side braces are available in two different hardness alternatives. Both Dirt and Carpet edition comes with medium stiffness and optional Graphite braces are suggested for extra high traction conditions.
The tough composite side braces also work great for using double-sided Velcro™ tape to mount the body to the chassis and seal against dirt.

Universal Gearbox Concept

XRAY presents a unique Universal Gearbox platform design that allows using either the updated 3 gear 3G Gearbox or the optional 5 gear 5G Gearbox without changing the chassis plate of the Carpet or Dirt version of the XB2.

3G Gearbox

Updated 3G Gearbox integrates with the lower Flat Chassis Brace. The weight bias of the 3G transmission creates a balance between steering and stability that is well suited for a wide variety of track conditions on dirt, clay, turf or carpet.
The 3G Gearbox is included in both XB2C and XB2D, with the universal design allowing easy & fast changes between 3G and optional 5G without changing the chassis.

Super-narrow, ultra-low CG gearboxes (LCG) features quick & easy diff access. The narrower design of the gearbox reduces weight and moves all parts closer to the chassis centerline.

Slipper Clutch

Both Carpet and Dirt versions come with unique 2-pad slipper assemblies that share the same top shaft, slipper pads and spring nut.

The XB2C includes the ventilated slipper plates to provide additional cooling to dissipate the excess heat created on carpet.

The XB2D includes solid slipper plates with larger engagement area for smoother slippage to help generate more traction.

Carpet tracks are typically very high traction, and the minimal wheel spin places higher stress on the slipper components and benefits from the additional cooling from the ventilated slipper plates to maintain consistent performance throughout a run.

Dirt and clay tracks are usually lower traction with more wheel spin compared to carpet racing, and do not generate the same heat in the slipper clutch. The solid slipper plates with larger engagement area for smoother slippage help to generate more traction.

The slipper pads are made from ultra-efficient SLS material with very-high slip efficiency, allowing very precise slip adjustment.

All slipper plates are machined from premium Swiss 7075 T6 and additionally hardened before a final black surface treatment. The plates have a machined relief which decreases the friction surface to assist with clutch slip adjustment. With this plate design, pressure is focused on the circumference of the clutch pads for increased efficiency.

Motor Mount

The unified motor mount for the 3G Gearbox takes advantage of the additional chassis clearance and lowers the motor position for lower CG.
The super lightweight motor mounts are machined from Swiss 7075 T6.

The molded composite gear protector prevents contact between the spur gear and the body. Moulded from strong, lightweight material, the cover helps to protect the body shell and spur gear, and it allows the body to be mounted lower without interference.

Front Suspension Arms

The arm has more clearance for the C-hub that expands the range of wheelbase adjustments.
The shock mounting location uses an eccentric pivot ball to move the lower shock mount forward or backward, creating different shock angles that affect traction and corner speed.
The arm also features a mounting location for the front anti-roll bar.
These arms are available in three different hardness alternatives: Medium, Hard and Graphite; each suitable for particular track conditions.

Rear Suspension Arms

Rear suspension arms add a inside shock mounting position for additional geometry choices, improving the XB2's ability to adapt to any track conditions.
The XB2C includes arms of the stiffest Graphite composite material to make the car more precise and consistent in higher traction conditions.
The XB2D includes arms of Hard composite material that is more flexible than Graphite, generating more rear-end grip in lower traction conditions.
The rear suspension arms are available in three hardness alternatives: Medium, Hard and Graphite; each suitable for particular track conditions.

Caster Blocks

Caster blocks are moulded from XRAY’s stiffest Graphite composite mixture which helps to increase steering response. Different caster block hardness choices are available to fine tune the set-up for all different track conditions.

The caster blocks are very lightweight, yet their construction makes them very stiff & rigid. The caster can be adjusted with values 0°, 2.5° or 5° by using included caster bushings.
There are four different caster blocks available – medium (option), hard (option), graphite (included) and aluminum (option), each one suitable for different track conditions.

Active Differential

The unique XRAY Active Differential is a high-performance, adjustable gear differential for XB2 ... vastly improving the buggy's speed and handling characteristics. The special design of the internal components using different angled segments allows the diff gears to engage on-power to increase the forward traction, making it faster and easier to drive.

While the XRAY Active Differential is a performance option for serious racers who want to gain an edge on superior speed and handling, it is also of great benefit to drivers of all levels that want a more predictable and easy-to-drive car in all racing conditions.

Rear Uprights

Rear Uprights are moulded from XRAY’s stiffest Graphite composite mixture to enhance performance in typical medium to high traction conditions found at most tracks. The rear lowered roll center position ensures stability and reduces collapse of the suspension in high-speed corners.

Rear uprights feature aluminum roll center mounts with multiple upper roll center positions

The upper roll center is adjusted at the camber linkage via shims (up/down & in/out), while the lower roll center is adjustable via eccentric inserts for 9 different positions (up/down & in/out).

The multi-function uprights have the upper roll center position in the middle of the axis of the driveshaft joint to help generate more traction and increase stability.

There are four different uprights available: medium (optional) hard (optional), graphite (included), and aluminum (optional), each suitable for particular track conditions.

Anti-Roll Bars

The rear anti-roll bar mounting system is redesigned to use the center-fitted locking collar to eliminate side play and improve efficiency of the anti-roll bar movement. The locking collar is now used on both front and rear anti-roll bars.

Both front and rear anti-roll bars enhance weight transfer control, and are height adjustable using the end links to perfectly engage at the same time.

The anti-roll bars are suggested primarily for high traction conditions and are included only in XB2C.  Anti-roll bar wires of different thicknesses are available for fine-tuning with the wire thickness laser-engraved on each bar for easy identification.

Servo Mount

To increase strength, rigidity and to provide more predictable, precise & more consistent steering, the servo mounts are now made from aluminum and feature a carbon connecting top plate that also serves as a transponder holder.

Electronics Plate

Electronics plate is included for convenient ESC and receiver installation. This makes for easy mounting as well as quick removal of the electronics during maintenance. The plate position can be shifted to the front or rear to move the electronics for a simple weight bias adjustment.

The XB2C includes the Stainless-Steel Plate that is ideal for higher traction conditions, where more front weight bias is needed to slow front to rear weight transfer upon acceleration.

The XB2D includes the Carbon Fiber Plate that is deal for lower traction dirt conditions. The carbon plate reduces weight over the front axles and shifts the weight bias more to the rear.

Motor Cooling

Multiple cooling fan mounting locations allow fine tuning weight bias, adapting to electronics placement on the chassis, or installing multiple fans for additional cooling.
Optional cooling fans can be mounted using the composite holder in front of the motor or using the left side guard's integrated mounting points.

The composite holder attaches to the chassis using one screw and one locating pin to minimize vibrations and increase fan lifespan.

High Traction Body

The lightweight version of the Epsilon 2C body for high traction conditions was updated to fit the wider chassis, longer side guards, and provide clearance for the 3G and optional 5G gearboxes.
The shape of the Epsilon 2C body enhances stability and corner speed for maximum pace.
For high competition racing, the XB2C now includes the lightweight version of the body to lower CG of the car, resulting in more dynamic & improved handling. Available also in a thicker standard weight version.

Low Traction Body

The lightweight version of the Epsilon 2D body for low traction conditions was also updated to fit the wider chassis, longer side guards, and clear both the 3G and optional 5G gearboxes.
The shape of the Epsilon 2D body increases rear traction and calms overall handling to help improve consistency.
For high competition racing, the XB2D now includes the lightweight version of the body to lower CG of the car, resulting in more dynamic & improved handling. Available also in a thicker standard weight version.

Front End

The front end of the XB2 was specifically designed to be unified for both Carpet & Dirt versions.

Battery Holder

The side braces allow mounting the battery holders in an extra forward position to move the battery weight as far forward as possible. This additional weight balance alternative expands the weight balance adjustment range to help achieve the best performance on any track condition.

Tweak-free fully adjustable battery holder is integrated into the side guards allowing easy and fast battery position adjustments, as well as simple battery installation through the smart quick-release system.

The battery pack can be easily moved front/rear to adjust the balance of the car. When the rear motor brace is removed, the battery pack can be moved completely rearward to maximize the rear weight bias and generate extra traction through the rear suspension.

The height of the battery backstop is adjustable for different battery sizes.

The battery holder is mounted to the chassis through one connecting screw on each side brace to eliminate any effect on chassis flex.

The battery holder is universal for both Dirt and Carpet editions.

Extra forward battery position to move weight as far forward as possible.

Front Upper Deck

The bridge style upper deck helps to optimize flex from side to side and front to rear while also providing clearance for the steering system. The upper deck also accommodates the anti-roll bar collar for improved functionality and allows mounting the shock absorbers behind the shock tower for better protection in a crash.

Front Roll Center

The front roll center holder features the two most widely used roll center positions that are suitable for all track conditions. The roll center block connects to the one-piece chassis and bridge upper deck to form a strong front structure.

The design of the roll center holder mounts the front anti-roll bar directly on the holder.

The front roll center holder is universal for both Carpet and Dirt Editions.

Arm Mount

The updated arm mount is an important part of the suspension, connecting the lower arms to the chassis plate. The included composite mount has a 0° kick-up angle, resulting in overall kick-up matching the integrated chassis kick-up of 22°.

Optional aluminum and brass arm mounts are available for weight balance or kick-up adjustment. The aluminum arm mount also includes a provision for a 10g Tungsten Weight for additional weight balance choices.

Drive Shafts

To simplify the spare parts compatibility, the required drive shafts length is unified between the Gear Diff and Ball Diff. Thanks to the gear diff design, the 77mm long drive shafts now fit both differentials.

Manufactured from world-renowned HUDY Spring Steel™ the drive shafts feature 2.5mm drive pins for maximum drivetrain efficiency. The drive shafts are some of the thinnest, yet most durable drive shafts used in electric off-road cars. Treated with a proprietary hardening process, the drive shafts provide unbeatable lifespan and reliability.

Unified 77mm length fits both Ball Diff & Gear Dif.

Included in both Carpet & Dirt Editio

2.5mm PIN FOR MAXIMUM DRIVETRAIN EFFICIENCY

Wheels

Slim front wheels with standardized narrow offset are designed for carpet racing and are included in the Carpet Edition. The wheels feature a countersunk center area to allow the wheel nut to sit deeper in the wheel.

The wheels are perfect for high-competition racing. They feature internal reinforcement ribs to provide stability and resist deformation, yet they are made from a flexible material to provide durability and withstand impacts.

The side of the wheel is aerodynamic for maximum performance. The wheels were designed to provide maximum traction.

The wheels feature a 12mm internal hex.

Easy Diff Access

Gear box features super easy access to the differential. Both gear boxes for Dirt and Carpet edition have the super easy diff access by removing only 6 screws.

Each gear box incorporates all the finest details and craftsmanship. All parts fit together perfectly, and the super-easy access to the rear differential will be appreciated by every racer. The durable gear box houses the differential with all the transmission components and serves as the mounting point for the rear roll center holder, motor plate, and rear shock tower.

Diff Height Adjustment

The gear box features differential height adjustment. There are 6 height adjustment positions available using the included eccentric bushings. The ideal position will vary depending on the track conditions, ride height and the size of the tires used.

Spur Gear

Precision-molded spur gears are made from XRAY's exclusive secret blend of composite material, allowing the gear to run true yet be robust enough to handle high-performance brushless motors. The spur gears are designed to have the lowest possible weight while staying strong and light. Each gear is stamped with the tooth number for easy identification.

The XB2 is equipped with an 78T spur gear which suits the majority of tracks. For additional tuning, optional 75T, 81T, and 84T spur gears are available.

Wheelbase & Weight Balance Adjustment

Outer suspension pins holding the front caster block and rear uprights feature wheelbase shims for quick & easy wheelbase and weight balance adjustment. Using included shims in rear and in front, both front and rear blocks can be moved forward or rearward to adjust weight balance depending on track condition.

By moving the arms to the front, the balance & weight of the car are transferred more to the rear; this is recommended for medium- and high-traction conditions. By moving the arms to the rear, the balance & weight of the car are transferred more to the front.

Chassis Balance

Chassis design focuses on balanced weight distribution and weight transfer. The chassis features pre-drilled holes for additional weights for optimum car balancing. Centerline holes are pre-drilled for easy balancing with the HUDY Chassis Balancing Tool #107880.

Ball-bearings

The XB2 features greased ball-bearings for front steering blocks & rear uprights to increase lifespan in dusty conditions. The remaining bearings are degreased and oiled with AeroShell® Fluid 12 for maximum smoothness and long life.

A full set of 22 high-speed ball-bearings are used throughout the drivetrain to ensure maximum efficiency.

Silicone Oils

HUDY Exclusive Silicone Oils are manufactured in Europe and each batch is laboratory tested and calibrated to ensure the highest possible consistency and quality from batch to batch. Based on the industry-standard cSt rating, the new line of oils will be easy to identify, adjust, and feel.

When following any set-up sheets by XRAY or XRAY team drivers, you can be sure that the oils you will get for your car are exactly same as those used by the factory racing team, thus ensuring very exacting set-ups and handling.

HUDY Chem Series.

Graphite Grease

The XB2 includes premium HUDY Graphite Grease which is a high-performance, advanced-technology semi-fluid lubricant which incorporates both extreme pressure additives and finely-dispersed graphite for load carrying. It is intended primarily for the lubrication of rotating parts and loaded gears. In addition to providing outstanding load carrying, it is formulated to have excellent adhesion and resistance to "fling-off" under extreme conditions. The grease reduces wear and increases parts life.
HUDY Graphite Grease #106210 .

Adjustment Possibilities

The extensive range of adjustment possibilities includes: caster, camber, toe, kick-up, anti-squat, ride height, downstops, track-width, lower roll center, upper roll center, roll center position, bump steer, wheelbase, Ackermann, adjustable shocks, adjustable rear diff, adjustable slipper clutch, and adjustable XRAY Multi-Flex™.

Set-up Book

The XB2 is one of the most adjustable electric 2WD off-road cars in the world. Whether you are a hardcore racing enthusiast or a club-level sportsman, you can very easily adjust the XB2 to suit your racing style, track type, and track conditions.

To fully understand the set-up possibilities, we recommend the legendary HUDY Set-up Book, loaded with over 40 pages of high-quality pictures and easy-to-understand RC car set-up explanations. Whether you are a novice driver or an experienced racer, you can easily learn many set-up tips & tricks and improve your set-up skills, ultimately translating into improved racing performance with your XB2. The HUDY Set-up Book is available for download exclusively at www.hudy.net

• Brand: XRay
• Part No: XR320023
• Barcode: 8581703200239
• Scale: 1:10
• Vehicle Type: Buggy
• Power Source: Electric - No Motor
• Surface Type: Off Road
• Build Level: Unassembled (Kit)
