ZTW Seal 200A 8S SBEC Brushless ESC ZTW6200300
Brand: ZTW
Part No: ZTW6200300
Out of stock
Request Stock NotificationFinance options available at checkout.
You May Also Need
Add-ons and accessories that go with the ZTW Seal 200A SBEC 8S ESC
Description

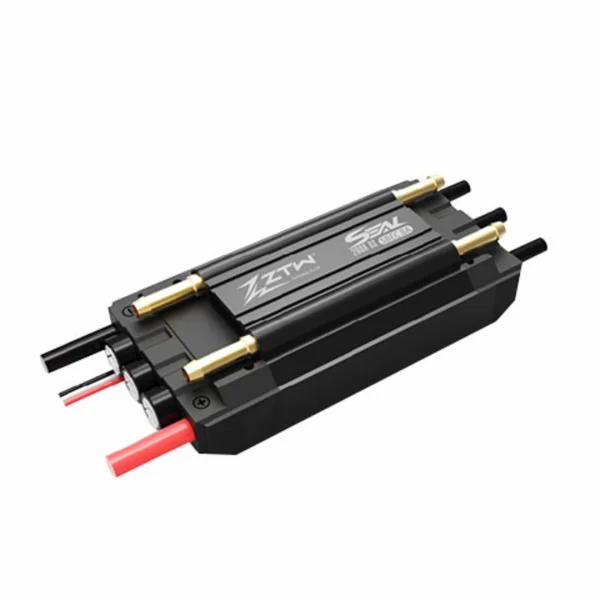

The ZTW Seal 200A SBEC 8S ESC (ZTW6200300) is a water-cooled marine brushless speed controller for radio-controlled models. It uses FETs designed to offer lower resistance and reduced heat dissipation, while additional water pipes increase the cooling area around the controller. This arrangement helps dissipate heat more quickly and supports higher power levels during operation.
The controller is rated for a normal continuous current of 200A and a burst current of 300A. It supports battery configurations from 5 to 24 NiMH cells or 2S to 8S LiPo batteries. The integrated SBEC provides a 6V output at 8A for the receiver and connected servos. A microcontroller with efficient control code provides fast motor synchronisation and accurate throttle control.
Features
The power leads use 10 AWG wire with 160mm red and black cables, while the three motor leads use 10 AWG wire with 160mm orange, yellow and blue cables. A 300mm black, red and white signal cable is fitted with a standard JR male connector. Water cooling is intended for marine installations where the controller is connected to a suitable cooling circuit.
Specifications
- Normal continuous current: 200A
- Burst current: 300A
- Battery support: 5–24 NiMH cells or 2S–8S LiPo
- BEC output: 6V, 8A
- ESC size: 97 x 49 x 27mm
- Weight: 230g
- Power and motor wire gauge: 10 AWG
The box contains one ZTW Seal 200A ESC. The controller is supplied with its power wires, motor wires and receiver signal lead as part of the fitted wiring.
Secured by Stripe
ZTW Seal 200A SBEC 8S ESC Manuals & Guides
Manuals & Guides
Specifications
Beautifully designed and manufactured, the new SEAL marine range of water-cooled brushless speed controllers by ZTW use new FETs that offer less resistance and less heat dissipation. ZTW has added additional water-pipes to increase the cooling area and so dissipate heat faster and with greater efficiency. The result enables higher power levels without fear of burning out the controller. Add to this a well-designed MCU with efficient code that makes for a faster sync and accurate control, and within this competitively priced package is a recipe for performance, reliability, and longevity.
ZTW Seal 200A Sbec 8S Esc Key Features:
- Beautifully designed and manufactured, the new SEAL marine range of water-cooled brushless speed controllers by ZTW use new FETs that offer less resistance and less heat dissipation. ZTW has added additional water-pipes to increase the cooling area and so dissipate heat faster and with greater efficiency. The result enables higher power levels without fear of burning out the controller. Add to this a well-designed MCU with efficient code that makes for a faster sync and accurate control, and within this competitively priced package is a recipe for performance, reliability, and longevity.
- Water cooling
- Normal Continuous Current 200A
- Burst Current 300A
- Battery 5-24 NiMh / 2-8 Lipo
- BEC output 6V 8A
- Power Wires 10 AWG, 160mm-Red/160mm-Black
- Motor Wires 10 AWG, 160mm-Orange/Yellow/Blue
- Signal Wires Black/Red/White 300mm with Normal JR Male
- ESC size - L=97mm W=49mm H=27mm
What's in the Box:
- 1x ZTW Seal 200A ESC
ZTW Seal 200A Sbec 8S Esc Tech Specs:
- Weight: 230g / 8.11oz
- Shipping Weight: 0.42kg / 0.92lbs
- Product Height: 27mm / 1.06in
- Product Width: 97mm / 3.82in
- Product Length: 49mm / 1.93in
Key Info:
- Brand: ZTW
- Part No: ZTW6200300
- Barcode: 5051121229738
