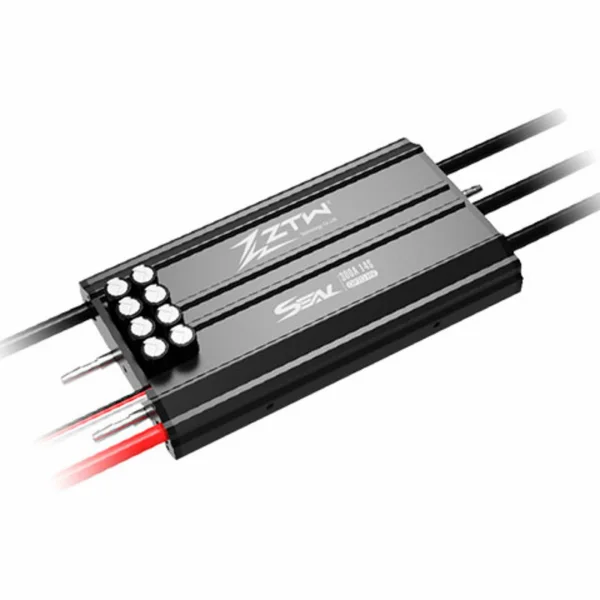

ZTW Seal 300A Opto HV 14S Brushless ESC ZTW6300400
Brand: ZTW
Part No: ZTW6300400
Out of stock
Request Stock NotificationFinance options available at checkout.
You May Also Need
Add-ons and accessories that go with the ZTW Seal 300A Opto HV 14S ESC
Description
The ZTW Seal 300A Opto HV 14S ESC, part number ZTW6300400, is a water-cooled brushless marine speed controller for high-voltage radio-controlled boats and models. It forms part of ZTW’s SEAL marine range and is designed around water cooling to manage heat during operation. Additional water pipes increase the cooling area, while the controller’s FETs are specified to offer reduced resistance and heat dissipation. This arrangement supports the controller’s stated current ratings and high-voltage battery range.
An MCU running efficient control code provides faster synchronisation between the ESC and motor, together with accurate throttle control. The controller is specified for a normal continuous current of 300A and a burst current of 1000A. Its battery range covers 18–42-cell NiMH packs or 6–14-cell LiPo packs. The power and motor leads use 6 AWG cable, with the signal lead supplied with a standard JR male connector.
Features
- Water-cooled brushless marine speed controller
- Additional water pipes for increased cooling area
- 300A normal continuous current and 1000A burst current
- Supports 18–42 NiMH or 6–14 LiPo battery packs
- 6 AWG power and motor wires with a 300mm signal lead
What’s Included
- ZTW Seal 300A OPTO ESC
- Four mounting clamps and screws
- Water pipe with flexible spring
Specifications
- Weight: 640g
- Product dimensions: 146mm long × 84mm wide × 29mm high
- Power wires: 6 AWG, 160mm red and 160mm black
- Motor wires: 6 AWG, 160mm orange, yellow and blue
- Signal wire: black, red and white, 300mm, standard JR male
Secured by Stripe
ZTW Seal 300A Opto HV 14S ESC Manuals & Guides
Manuals & Guides
Specifications
Beautifully designed and manufactured, the new SEAL marine range of water-cooled brushless speed controllers by ZTW use new FETs that offer less resistance and less heat dissipation. ZTW has added additional water-pipes to increase the cooling area and so dissipate heat faster and with greater efficiency. The result enables higher power levels without fear of burning out the controller. Add to this a well-designed MCU with efficient code that makes for a faster sync and accurate control, and within this competitively priced package is a recipe for performance, reliability, and longevity.
ZTW Seal 300A Opto Hv 14S Esc Key Features:
- Beautifully designed and manufactured, the new SEAL marine range of water-cooled brushless speed controllers by ZTW use new FETs that offer less resistance and less heat dissipation. ZTW has added additional water-pipes to increase the cooling area and so dissipate heat faster and with greater efficiency. The result enables higher power levels without fear of burning out the controller. Add to this a well-designed MCU with efficient code that makes for a faster sync and accurate control, and within this competitively priced package is a recipe for performance, reliability, and longevity.
- Water cooled
- Normal Continuous Current 300A
- Burst Current 1000A
- Battery 18-42 NiMh / 6-14 Lipo
- Power Wires 6 AWG, 160mm-Red/160mm-Black
- Motor Wires 6 AWG, 160mm-Orange/Yellow/Blue
- Signal Wires Black/Red/White 300mm with Normal JR Male
What's in the Box:
- 1x ZTW Seal 300A OPTO ESC
- 4x Mounting clamps and screws
- 1x Water pipe with flex spring
ZTW Seal 300A Opto Hv 14S Esc Tech Specs:
- Weight: 640g / 22.58oz
- Shipping Weight: 0.98kg / 2.15lbs
- Product Height: 29mm / 1.13in
- Product Width: 146mm / 5.75in
- Product Length: 84mm / 3.31in
Key Info:
- Brand: ZTW
- Part No: ZTW6300400
- Barcode: 5051121229769
