Description

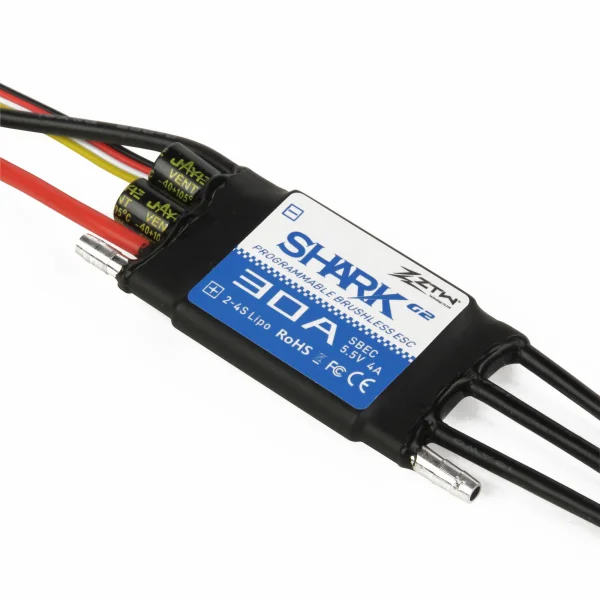

The ZTW Shark 30A SBEC ESC G2 (2-4 Cells) (Water-cooled), part number ZTW9030211, is a programmable brushless marine ESC. Designed for R/C model boats, it supports 2-4 cell battery setups and combines water cooling with a waterproof construction. The built-in switch-mode BEC supplies the receiver and steering servo without requiring a separate BEC unit.
A 32-bit microprocessor provides faster signal processing, smooth start-up and accurate throttle response. The controller supports high-RPM brushless motors and offers two selectable running modes: forward and reverse, or forward only. Programming can be carried out using a phone app or an LCD programming card, allowing the operating settings to be adjusted for the model.
Protection And Operation
The ESC includes over-temperature, low-voltage and phase-loss protection. A signal-loss function shuts the throttle down if the radio signal is interrupted, while power arming protection helps prevent the motor from starting accidentally when the system is switched on. High-throttle safety also prevents the ESC from arming the motor unless the throttle control is fully closed.
The water-cooling system is intended to dissipate heat during operation, and the compact controller is suited to installations where available space is limited. Its waterproof design and marine application make it suitable for suggested use in radio-controlled boats.
Specifications
- Continuous current rating: 30A
- Battery range: 2-4 cells
- Cooling: Water-cooled
- Weight: 31g
- Dimensions: 62 x 30 x 9mm
- Application: R/C model boats
Secured by Stripe
ZTW Shark 30A SBEC ESC G2 (2-4 Cells) (Water-cooled) Manuals & Guides
Specifications
Designed specifically to provide a solid, hassle-free performance, Shark programmable brushless marine ESCs offer high quality components programmed with ZTW s mature software at a price that ll have you reaching for your bank card. Now sporting super-fast 32-bit processing power, each controller is water-cooled, waterproof and packs a built-in switch-mode BEC. But that's not all. Featuring over temperature protection, a high-throttle safety function (that prevents the ESC from arming the motor if the throttle stick is not fully closed) and two running modes, there really isn t a better alternative for those who seek an affordable fit 'n' forget solution.
ZTW Shark 30A SBEC ESC G2 (2-4 Cells) (Water-cooled) Key Features:
- Designed specifically to provide a solid, hassle-free performance, Shark programmable brushless marine ESCs offer high quality components programmed with ZTW s mature software at a price that ll have you reaching for your bank card. Now sporting super-fast 32-bit processing power, each controller is water-cooled, waterproof and packs a built-in switch-mode BEC. But that's not all. Featuring over temperature protection, a high-throttle safety function (that prevents the ESC from arming the motor if the throttle stick is not fully closed) and two running modes, there really isn t a better alternative for those who seek an affordable fit 'n' forget solution.
- Super smooth start up and accurate throttle linearity.
- 32-bit microprocessor affords greater processing power and faster input signals.
- 100% waterproof.
- Water-cooling system ensures ultra efficient heat dissipation.
- Light and compact.
- Over temperature protection.
- Low voltage protection.
- Phase loss protection.
- Auto throttle shut down in signal loss situation.
- Supports high RPM motors.
- Power arming protection (prevents the motor from accidentally running when switched on).
- Programmable via phone app or LCD program card.
- Two running modes forward / reverse and forwards only.
ZTW Shark 30A SBEC ESC G2 (2-4 Cells) (Water-cooled) Tech Specs:
- Weight: 31g / 1.09oz
- Shipping Weight: 0.05kg / 0.10lbs
- Product Height: 9mm / 0.35in
- Product Width: 30mm / 1.18in
- Product Length: 62mm / 2.44in
- Application: R/C model boats
Key Info:
- Brand: ZTW
- Part No: ZTW9030211
- Barcode: 5051121263312
