Description

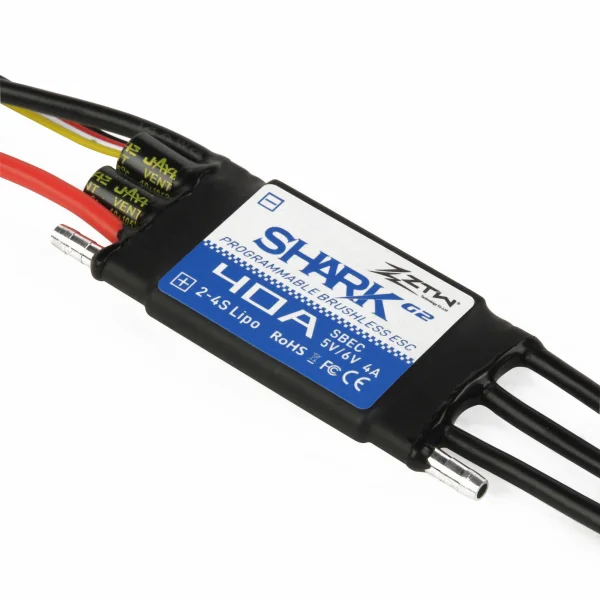

The ZTW Shark 40A SBEC ESC G2 (2-4 Cells) (Water-cooled), part number ZTW9040211, is a programmable brushless marine electronic speed controller for R/C model boats. It is designed for use with 2-4 cell battery setups and combines water cooling with a built-in switch-mode BEC in a compact controller.
A 32-bit microprocessor provides faster input signal processing, while the controller is configured for smooth motor start-up and accurate throttle response. The ESC is waterproof and includes a water-cooling system to help manage heat during operation. Programming is available through a phone app or an LCD program card, allowing the controller to be configured for the intended boat setup.
Features
The Shark G2 provides two running modes: forward and reverse, or forward only. Its protection functions include over-temperature protection, low-voltage protection and phase-loss protection. Signal-loss protection can shut the throttle down automatically, while the arming safety function prevents the motor from starting if the throttle is not fully closed when power is applied. High-RPM motor support is also included.
The built-in SBEC supplies receiver power without requiring a separate BEC, helping keep the installation compact. Water cooling, waterproof construction and the controller's 40A rating make this ESC suited to brushless marine installations where these features are required.
Specifications
- Application: R/C model boats
- Battery support: 2-4 cells
- Rated current: 40A
- Weight: 40g
- Dimensions: 75 x 32 x 9mm
- Processing: 32-bit microprocessor
- Programming: Phone app or LCD program card
- Running modes: Forward/reverse and forward only
Secured by Stripe
ZTW Shark 40A SBEC ESC G2 (2-4 Cells) (Water-cooled) Manuals & Guides
Specifications
Designed specifically to provide a solid, hassle-free performance, Shark programmable brushless marine ESCs offer high quality components programmed with ZTW s mature software at a price that ll have you reaching for your bank card. Now sporting super-fast 32-bit processing power, each controller is water-cooled, waterproof and packs a built-in switch-mode BEC. But that's not all. Featuring over temperature protection, a high-throttle safety function (that prevents the ESC from arming the motor if the throttle stick is not fully closed) and two running modes, there really isn t a better alternative for those who seek an affordable fit 'n' forget solution.
ZTW Shark 40A SBEC ESC G2 (2-4 Cells) (Water-cooled) Key Features:
- Designed specifically to provide a solid, hassle-free performance, Shark programmable brushless marine ESCs offer high quality components programmed with ZTW s mature software at a price that ll have you reaching for your bank card. Now sporting super-fast 32-bit processing power, each controller is water-cooled, waterproof and packs a built-in switch-mode BEC. But that's not all. Featuring over temperature protection, a high-throttle safety function (that prevents the ESC from arming the motor if the throttle stick is not fully closed) and two running modes, there really isn t a better alternative for those who seek an affordable fit 'n' forget solution.
- Super smooth start up and accurate throttle linearity.
- 32-bit microprocessor affords greater processing power and faster input signals.
- 100% waterproof.
- Water-cooling system ensures ultra efficient heat dissipation.
- Light and compact.
- Over temperature protection.
- Low voltage protection.
- Phase loss protection.
- Auto throttle shut down in signal loss situation.
- Supports high RPM motors.
- Power arming protection (prevents the motor from accidentally running when switched on).
- Programmable via phone app or LCD program card.
- Two running modes forward / reverse and forwards only.
ZTW Shark 40A SBEC ESC G2 (2-4 Cells) (Water-cooled) Tech Specs:
- Weight: 40g / 1.41oz
- Shipping Weight: 0.06kg / 0.12lbs
- Product Height: 9mm / 0.35in
- Product Width: 32mm / 1.26in
- Product Length: 75mm / 2.95in
- Application: R/C model boats
Key Info:
- Brand: ZTW
- Part No: ZTW9040211
- Barcode: 5051121263329
