Description

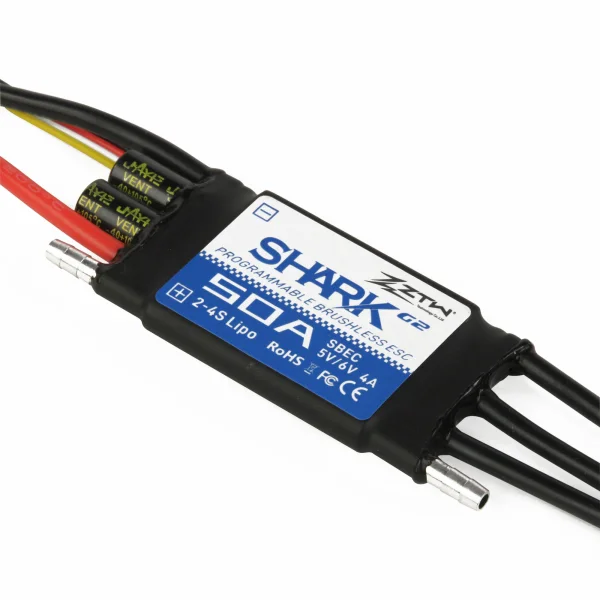

The ZTW Shark 50A SBEC ESC G2 (2-4 Cells) (Water-cooled), part number ZTW9050211, is a programmable brushless marine ESC for R/C model boats. It is designed for use with 2–4-cell power systems and combines a water-cooling system with a built-in switch-mode BEC. The controller is waterproof and uses a 32-bit microprocessor to process input signals quickly.
The ESC provides smooth motor start-up and accurate throttle linearity for controlled operation. It supports high-RPM motors and offers two selectable running modes: forward and reverse, or forwards only. Settings can be adjusted using a phone app or an LCD programming card, allowing the controller to be configured for the intended model boat setup.
Protection And Operation
Several protection functions are built into the Shark controller. Over-temperature protection helps manage excessive heat, while low-voltage and phase-loss protection monitor operating conditions. Automatic throttle shut-down responds to signal loss, and power arming protection prevents the motor from starting accidentally when the ESC is switched on. A high-throttle safety function also prevents the motor from arming unless the throttle stick is fully closed.
The water-cooling arrangement is intended to dissipate heat during operation, while the light, compact format makes the controller suitable for installations where available space is limited. Suggested compatibility is with R/C model boats using a brushless motor and a 2–4-cell battery system.
Specifications
- Application: R/C model boats
- Weight: 41 g
- Dimensions: 75 x 32 x 9 mm
- Power system: 2–4 cells
- Running modes: forward/reverse and forwards only
Secured by Stripe
ZTW Shark 50A SBEC ESC G2 (2-4 Cells) (Water-cooled) Manuals & Guides
Specifications
Designed specifically to provide a solid, hassle-free performance, Shark programmable brushless marine ESCs offer high quality components programmed with ZTW s mature software at a price that ll have you reaching for your bank card. Now sporting super-fast 32-bit processing power, each controller is water-cooled, waterproof and packs a built-in switch-mode BEC. But that's not all. Featuring over temperature protection, a high-throttle safety function (that prevents the ESC from arming the motor if the throttle stick is not fully closed) and two running modes, there really isn t a better alternative for those who seek an affordable fit 'n' forget solution.
ZTW Shark 50A SBEC ESC G2 (2-4 Cells) (Water-cooled) Key Features:
- Designed specifically to provide a solid, hassle-free performance, Shark programmable brushless marine ESCs offer high quality components programmed with ZTW s mature software at a price that ll have you reaching for your bank card. Now sporting super-fast 32-bit processing power, each controller is water-cooled, waterproof and packs a built-in switch-mode BEC. But that's not all. Featuring over temperature protection, a high-throttle safety function (that prevents the ESC from arming the motor if the throttle stick is not fully closed) and two running modes, there really isn t a better alternative for those who seek an affordable fit 'n' forget solution.
- Super smooth start up and accurate throttle linearity.
- 32-bit microprocessor affords greater processing power and faster input signals.
- 100% waterproof.
- Water-cooling system ensures ultra efficient heat dissipation.
- Light and compact.
- Over temperature protection.
- Low voltage protection.
- Phase loss protection.
- Auto throttle shut down in signal loss situation.
- Supports high RPM motors.
- Power arming protection (prevents the motor from accidentally running when switched on).
- Programmable via phone app or LCD program card.
- Two running modes forward / reverse and forwards only.
ZTW Shark 50A SBEC ESC G2 (2-4 Cells) (Water-cooled) Tech Specs:
- Weight: 41g / 1.45oz
- Shipping Weight: 0.06kg / 0.12lbs
- Product Height: 9mm / 0.35in
- Product Width: 32mm / 1.26in
- Product Length: 75mm / 2.95in
- Application: R/C model boats
Key Info:
- Brand: ZTW
- Part No: ZTW9050211
- Barcode: 5051121263336
