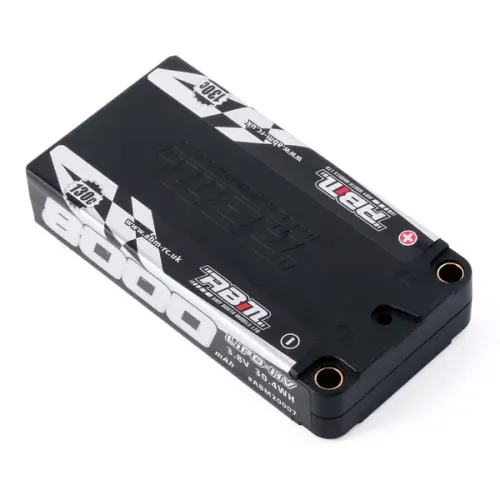

ABM 1S LiPo Race Battery 8000mAh 130C – BRCA Approved

The Amy Booth Models (ABM) LiPo Race Battery ABM20007 is a BRCA Approved 1S pan car style hard-case pack with 5mm discharge tubes and a 2mm balance port. Housed in a sonic-welded ABS+PC case and rated at a nominal 3.8v, this battery is engineered for stable performance with low impedance and robust construction.

Key Features

• Configuration: 1s Pan Car Style
• Battery pack weight: 145 ± 5.6g
• Length: 92.5mm +0/-1mm
• Width: 46.9mm +0/-1mm
• Thickness: 18mm +0/-1mm
• Casing material: ABS+PC
• Casing nominal thickness: 1.0mm
• Casing sealing: Sonic-welding
• Discharge point: dia. 5mm tubes (positive / negative terminals)
• Charging port: dia. 2mm tube balance

Ratings

• Nominal Voltage: 3.8v
• Nominal Capacity: 7900-8100mAh
• Nominal Impedance: .9-1.3 mOhm per cell
• Charging method: CC/CV mode (high quality LiPo chargers only)
• Charge cutoff voltage: 4.20V ±0,05V
• Charging current: 8.0 amps(typical)
• 2C charging possible, with special attention for accurate cutoff
• Discharge cutoff voltage: 3.1V ±0,05V
• Discharge continuous: 65c
• Discharge pulse (max): 130c (less than 6sec. for each pulse)
• Discharge Temp range: -20~+60 deg-C
• Charging Temp range: 0~ +45 deg-C
• Storage Temperature: -20~+45 deg-C
• Storage Humidity: 65 ±20% RH

Part Number: ABM20007.
