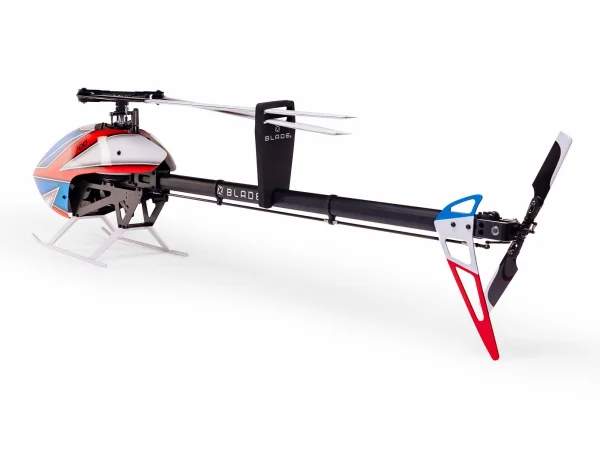

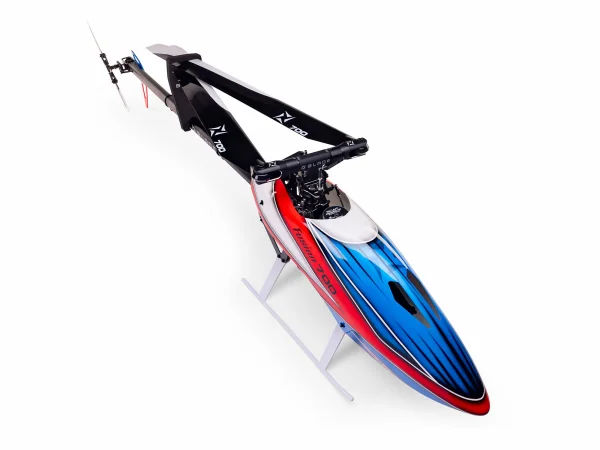

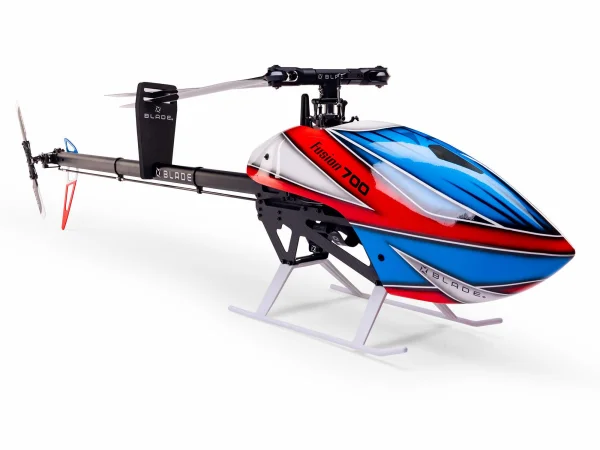

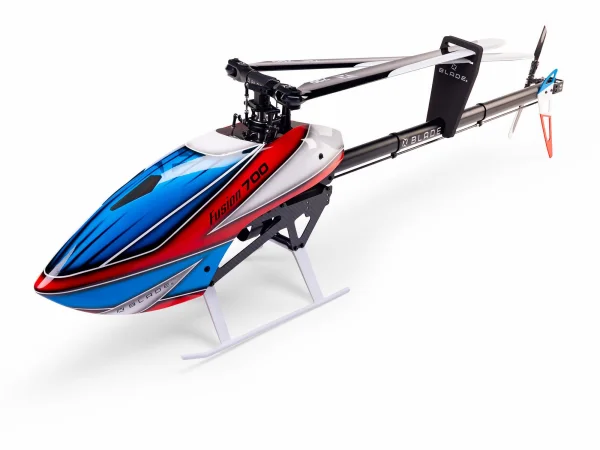

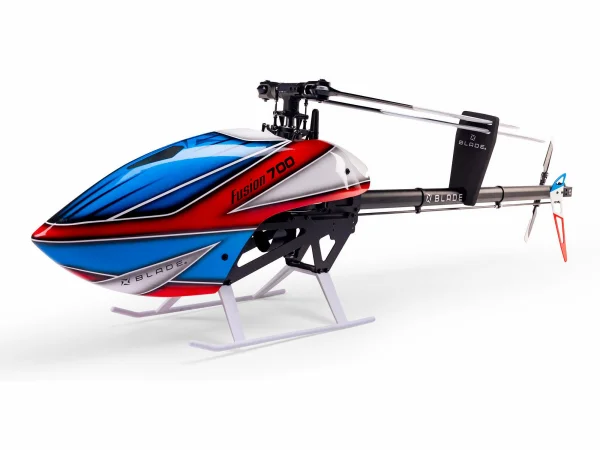

Blade Fusion 700 Kit with Motor and Blades

Like the Fusion series models that came before it and are still available with spare parts support since 2018, the top-of-the-line Blade® Fusion 700 blends the lines between convenience and capabilities, plus quality and value. The extremely strong carbon fiber and aluminum airframe is ready to pair with the included blades and motor, and popular 12S battery setups, to deliver exhilarating performance with power to spare. Now you can make the dream of owning a 700-sized helicopter with cutting-edge capabilities – along with incredible durability and reliability – a reality!

• Extremely strong and durable carbon fiber and aluminum airframe design
• High-strength steel 15mm main shaft and 10mm spindle with metal head components
• Ovalized aluminum tail boom eliminates the need for boom supports
• 8mm wide belt for the driven tail featuring adjustable tension
• High-strength steel 6mm tail shaft paired with a metal bell crank and grips

• Efficient Delrin® helical main gear paired with a steel pinion for quiet and reliable performance
• Compatible with popular and common 12S 4000–5000mAh LiPo battery setups
• Aluminum tail case with a metal tail drive pulley
• 5mm diameter carbon fiber tail pushrod for precise tail control
• Orange-painted canopy, carbon fiber tail fin and black landing gear available separately to customize and personalize the look

Blade Fusion 700 Kit with Motor and Blades Specfications:

• Main Rotor Blade Length: 27.56" (700 mm)
• Speed Control: Sold Separately
• Charger: Sold Separately
• Receiver: Sold Separately
• Completion Level: Kit
• Main Blade Material: Carbon Fiber
• Main Rotor Diameter: 62" (1575 mm)
• Product Height: 14.88" (378 mm)
• Recommended Motor Battery: 12S 44.4V 4000mAh to 5000mAh LiPo (SPMX-1091)
• Tail Blade Material: Carbon Fiber
• Tail Rotor Blade Length: 4.13" (105 mm)
• Approximate Assembly Time: 5-7 Hours
• Tail Drive: Belt Drive
• Canopy/Body Material: Fiberglass
• Product Weight: With recommended battery: 12.5lb (5670g)
• Power Type: Electric
• Servos: Sold Separately
• Skill Level: Level 4
• Swashplate Type: 120 Degree CCPM
• Main Motor Type: Brushless
• Main Rotor Head Type: Collective Pitch Flybarless
• Product Width: 8.5" (216 mm)
• Tail Rotor Diameter: 11.5" (292 mm)
• Battery: Sold Separately
• Gear Ratio: 9.33-10.18
• Main Frame Material: Carbon Fiber
• Motor Size: 4735-540Kv 10-Pole
• Product Length: 54.5" (1384 mm)

• (1) Blade Fusion 700 Helicopter Kit
• (1) Spektrum Avian 4735-540Kv 10-Pole Brushless Outrunner Motor (included)
• (1) Blade 700mm Carbon Fiber Main Rotor Blade Set (included)
• (1) Blade 105mm Carbon Fiber Tail Rotor Blade Set (included)
• (1) Foam Blade Holder (included)
• (1) Blade Fusion 700 Kit Manual

• (1) Full-range 6+ channel Transmitter
• (1) Flybarless Control System with Built-In and/or External Receiver
• (1) 120A+ 12S Brushless Helicopter Compatible ESC
• (3) High-Torque Standard Sized Cyclic Servos
• (1) High-Speed Standard Sized Tail Servo
• (2) 6S 22.2V or (1) 12S 44.4V 4000–5000mAh LiPo battery with EC5 or IC5 Connector
• (1) Compatible Lipo Charger

• Brand: Blade
• Part No: BLH13075
• Barcode: 0660132892180
• Size: 400+
• Flying Style: Collective Pitch
• Power: Electric
• Build Level: Kit (Unassembled)
