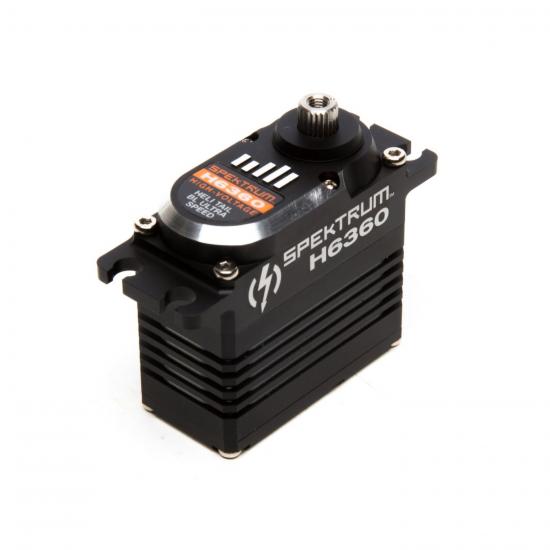

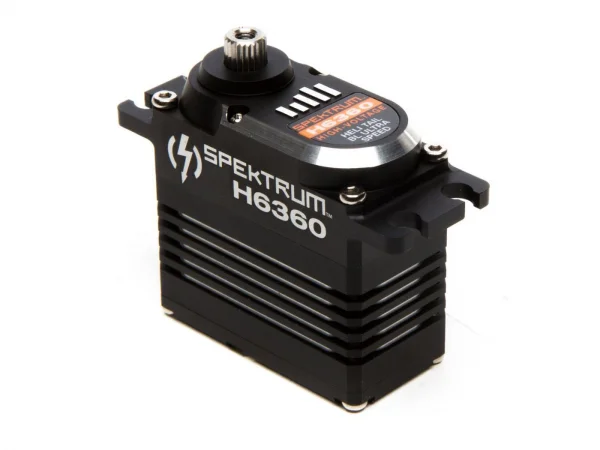

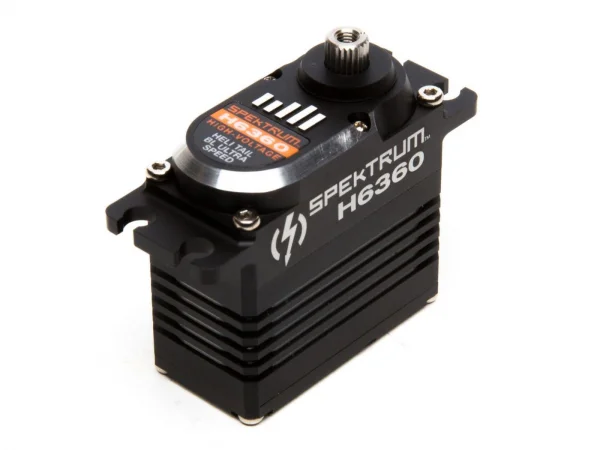

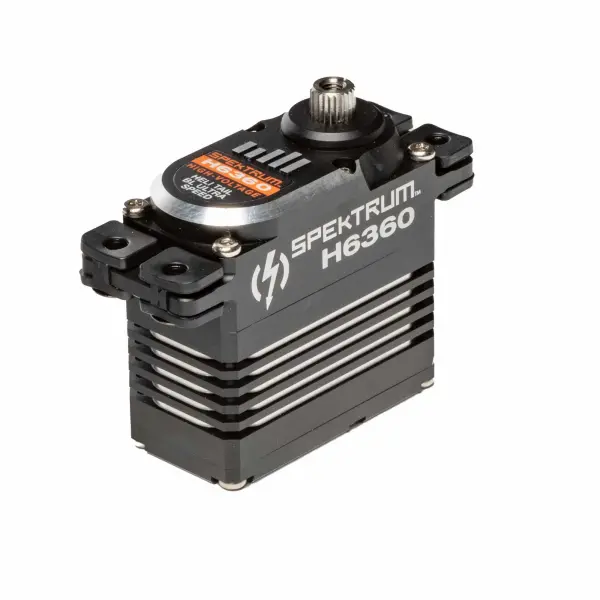

H6360 Mid Torque Ultra Speed Heli Tail HV Servo

Spektrum™ high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software integrate with powerful brushless motor technology to offer ultra-smooth, blindingly fast performance more efficiently than servos with conventional motors. Heavy-duty servo lead-wire includes the convenience of a quick-release cable connection. The all-aluminum case provides the ultimate solution in durability and heat dissipation. Precision metal gears satisfy even the most critical heli pilot who wants hassle-free control.

The Spektrum H6360 tail servo uses this solid foundation, to achieve blinding transit speeds of .04 sec with an outstanding balance of durability and value, in addition to the peace-of-mind that sophisticated error correction and over-current/temperature protection offers. It’s a brilliant feature combination that makes this servo an outstanding tail-rotor control choice for of 550- to 700-class electric and nitro helis.

H6360 Mid Torque Ultra Speed Heli Tail HV Servo Specfications:

• Application: : Heli Cyclic
• Bearing: : Dual
• Bushing Or Bearing: : Bearing
• Connector Type: : Universal
• Connector Wire Gauge: : 22 AWG
• Connector Wire Length: : 6 in and 12 in
• Deadband: : 2 - 3 µs
• Gear Material: : Metal
• Gear Type: : Metal

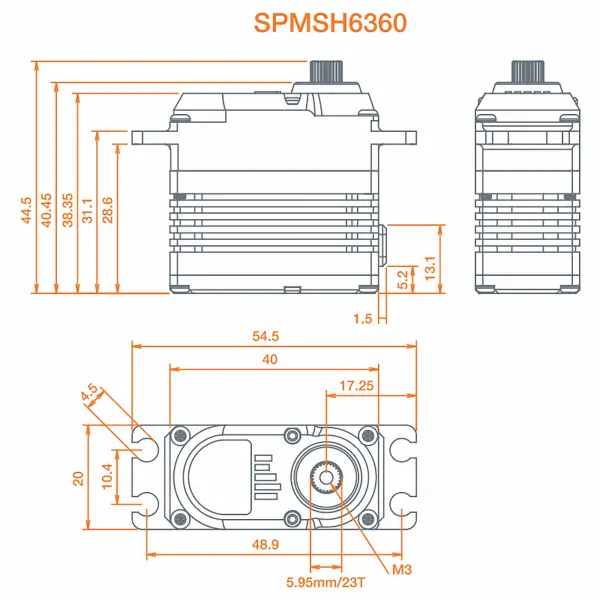

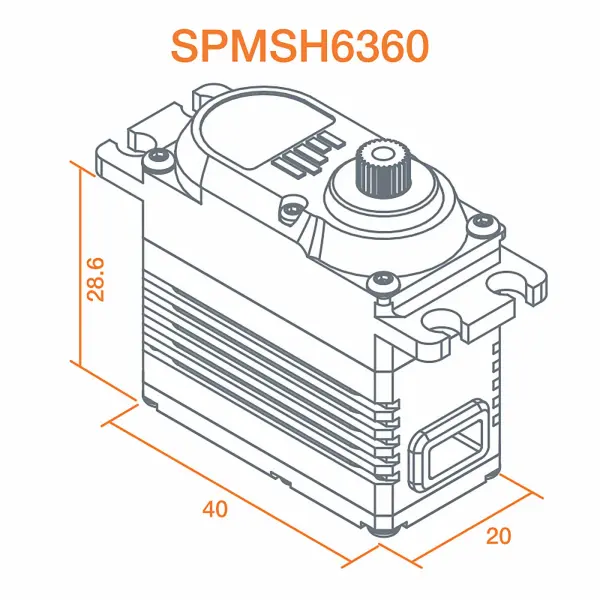

• Height: : 1.49 in (37.8mm)
• Length: : 1.57 in (40mm)
• Motor Type: : Brushless
• Servo Operating Voltage: : 6.0 - 8.4V (HV)
• Servo Size Category: : Standard
• Servo Type: : Digital
• Speed: : 0.04 sec/60 deg @ 8.4V
• Spline Count: : 23 Teeth
• Torque: : 104.9 oz-in (7.56 kg-cm) @ 8.4V
• Type: : Digital
• Weight: : 2.6 oz (73.6 g)
• Width: : 0.79 in (20mm)

• Brand: Spektrum
• Part No: SPMSH6360
• Barcode: 0605482366684
• Fitment: Option Part
• Fitment: Standard Part
