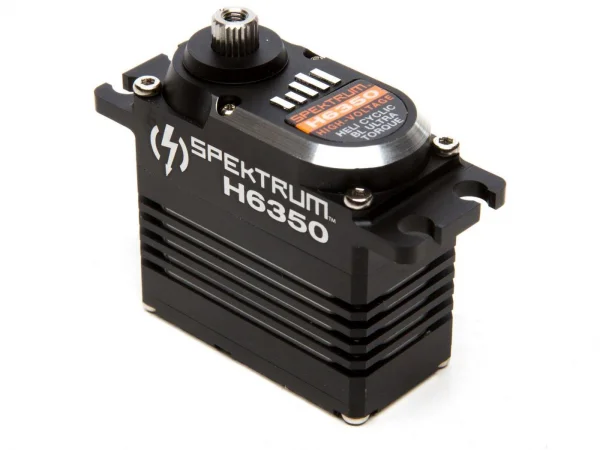

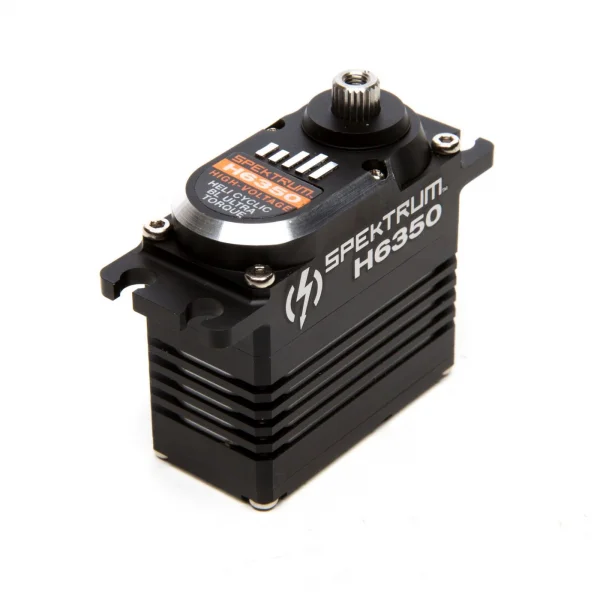

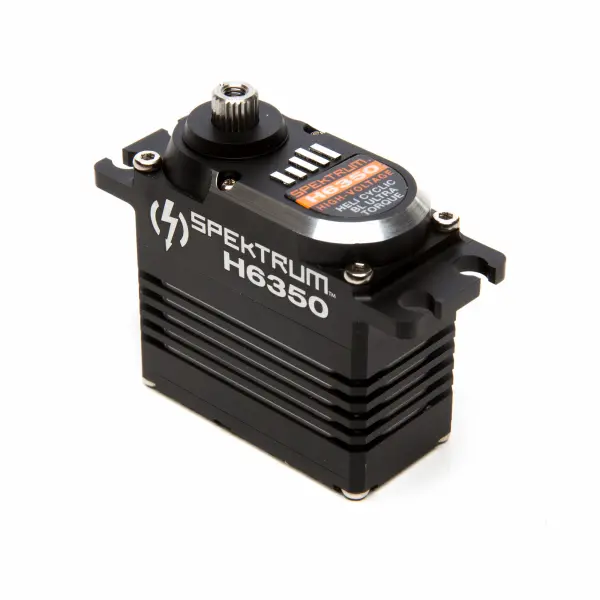

Spektrum H6350 Ultra Torque HV Heli Cyclic Servo
Brand: Spektrum
Part No: SPMSH6350
Supplier Stock: Expected August 15th
Request Stock NotificationFinance options available at checkout.
Fits These Models (6)
Description
The Spektrum H6350 Ultra Torque High Speed Heli Cyclic HV Servo (SPMSH6350) delivers dependable power and digital precision for demanding swashplate control. A high-voltage brushless motor, precision metal gears and an all‑aluminium case combine to provide ultra-fast response, durability and excellent heat dissipation. Sophisticated error correction plus over‑current and temperature protection add peace of mind, while a heavy‑duty lead with a quick‑release cable connection simplifies installation.
Key Features
- High-voltage brushless motor for rapid, efficient cyclic response
- All‑aluminium case for strength and improved heat dissipation
- Precision metal gears with dual bearings for smooth, reliable operation
- Heavy‑duty servo lead with quick‑release cable connection
- Digital control with advanced error correction and protection
- Standard-size footprint to suit heli cyclic applications
Specifications
- Connector Type: Universal
- Servo Operating Voltage: 6.0–8.4V (HV)
- Maximum Speed: 0.062 sec/60° @ 8.4V
- Maximum Torque: 416.4 oz‑in (30.0 kg‑cm) @ 8.4V
- Motor Type: Brushless
- Servo Type: Digital
- Gear Type: Metal
- Bearings: Dual
- Wire Gauge: 22 AWG
- Connector Wire Length: 6" (152 mm)
- Size Category: Standard
- Deadband: 2 µs, 3 µs
- Material: Metal

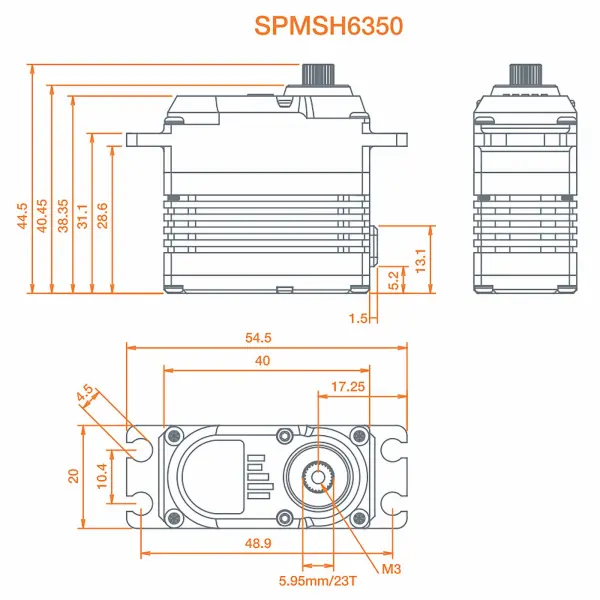

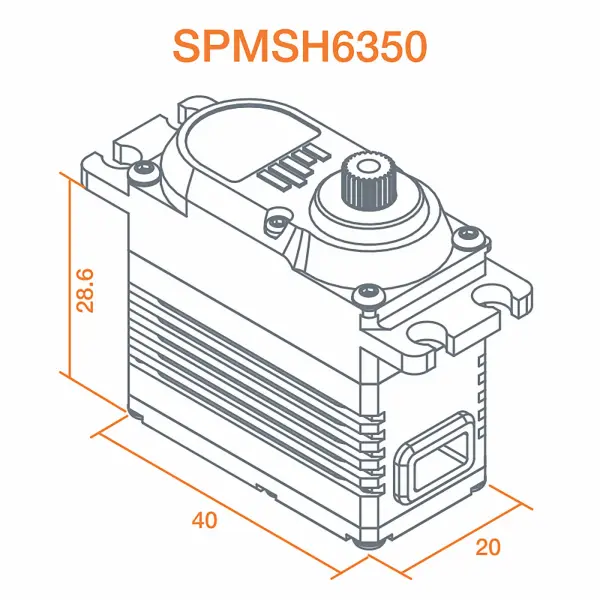

- Length: 1.57" (40 mm)
- Width: 0.79" (20 mm)
- Height: 1.49" (38 mm)
- Weight: 2.54 oz (72 g)
- Programmable: No
- Application: Heli Cyclic
Suggested Compatibility
- 550–700 class electric and nitro helicopters for swashplate/cyclic control (suggested compatibility)
Secured by Stripe
H6350 Ultra Torque High Speed Heli Cyclic HV Servo Manuals & Guides
Manuals & Guides
Specifications
Spektrum™ high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software integrate with powerful brushless motor technology to offer ultra-powerful/ultra-fast heli performance more efficiently than servos with conventional motors. Heavy-duty servo lead-wire includes the convenience of a quick-release cable connection. The all-aluminum case provides the ultimate solution in durability and heat dissipation. Precision metal gears satisfy even the most critical heli pilot who wants hassle-free control.
The Spektrum H6350 cyclic servo uses this solid foundation, to achieve an outstanding balance of performance, durability and value, in addition to the peace-of-mind that sophisticated error correction and over-current/temperature protection offers. It’s a brilliant feature combination that makes this servo an outstanding swashplate control choice for 550- to 700-class electric and nitro helicopters.
H6350 Ultra Torque High Speed Heli Cyclic HV Servo Specfications:
- Connector Type: Universal
- Maximum Servo Speed: 0.062 sec/60° @ 8.4V
- Product Length: 1.57" (40 mm)
- Bearing: Dual
- Bushing Or Bearing: Bearing
- Gear Type: Metal
- Wire Gauge: 22 AWG
- Material: Metal
- Programmable: No
- Servo Size Category: Standard
- Motor Type: Brushless
- Maximum Servo Torque: 416.4 oz-in (30.0 kg-cm) @ 8.4V
- Connector Wire Length: 6" (152 mm)
- Product Width: 0.79" (20 mm)
- Servo Operating Voltage: 6.0 - 8.4V (HV)
- Deadband: 2µs, 3µs
- Part Type: Electronics
- Product Application: Heli Cyclic
- Product Height: 1.49" (38 mm)
- Servo Type: Digital
- Application: Heli Cyclic
- Product Weight: 2.54oz (72g)
Key Info:
- Brand: Spektrum
- Part No: SPMSH6350
- Barcode: 0605482128084
- Fitment: Option Part
- Fitment: Standard Part
