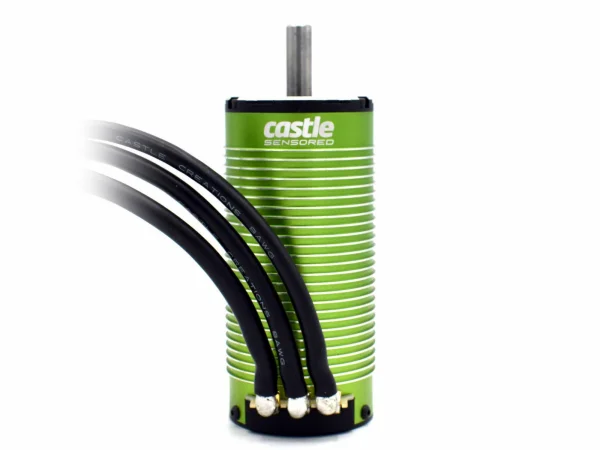

Castle Creations Motor - 4-Pole - Sensored Brushless 1721-1260Kv

Castle Creations Motor - 4-Pole - Sensored Brushless 1721-1260Kv

Brand: Castle Creations

Part No: M-CC060-0100-00

£275.99 RRP £299.99
Pre-Order
Request Price Match Ask a Question Write a Review

The Castle Creations 1721-1260Kv Sensored 4-Pole Brushless Motor (part M-CC060-0100-00) is engineered for serious large-scale bashers seeking exceptional speed, torque and thermal efficiency. Precision-machined components, high-strength magnets and advanced winding techniques deliver reliable, consistent performance in demanding conditions.

Key Features

  • 4-pole, 12-slot design for high efficiency and reduced heat.
  • Optimised sensor alignment removes the need for mechanical timing adjustments, providing uniform timing and torque in both directions.
  • Oversized NMB bearings with vibration damping for extended bearing life.
  • High-strength, high-temperature neodymium sintered magnets with a Kevlar wrap to maintain rotor integrity under harsh running.
  • Proprietary low-resistance windings for cooler running and consistent power delivery.

What Makes It Different?

The 1721-1260Kv is the more conventional, “sane” counterpart to the 1721-2400Kv speed-focused motor. Built on the same platform, it offers stronger punch and cooler operation than the 1717-1260Kv, making it a moderate yet powerful step up from typical 1717-size options.

Recommended ESC

Manufacturer recommends pairing with the Castle Mamba XLX2. This motor is also available packaged as a combo with the XLX2.

Suggested Compatibility

  • 1717-size motor platforms such as Traxxas X-Maxx and ARRMA 8S vehicles.

Specifications

  • Motor Type: Brushless
  • Sensored: Yes
  • Poles: 4
  • RPM/Volt (Kv): 1260Kv
  • Input Voltage: 3S-8S
  • Wire Gauge: 8 AWG
  • Outer Diameter: 1.87" (47 mm)
  • Length: 3.984252" (101 mm)
  • Weight: 1.71 lb (27.36 oz)
  • Water-Resistant: Yes
  • Forward: Yes
  • Reverse: Yes
  • Programmable: Yes
  • Speed Control: Sold separately

In The Box

  • (1) 1721-1260Kv Brushless Sensored 4-Pole Motor
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Introduction

This powerful and efficient motor is designed to deliver exceptional speed, torque, and acceleration, making it the perfect choice for serious large-scale bashers who demand nothing but the best. Built with precision-machined components, high-strength magnets, and advanced winding techniques, this motor is engineered to deliver reliable and consistent performance in even the most challenging conditions.

Features
  • 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT.
  • OPTIMIZED design eliminates the need for mechanical timing adjustments as sensor alignment method delivers uniform timing and torque in both directions, automatically.
  • Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible.
  • High-strength, high-temperature grade neodymium sintered magnets combined with a high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions.
  • Proprietary winding techniques produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor.
What makes this motor different than the other 17 series motors?

GREAT QUESTION! The 1721-1260kv is the “sane brother” to the 1721-2400kv. Where the 1721-2400kv is made for one thing, SPEED, the 1721-1260kv is built on the same platform, but at a more conventional Kv. It packs more punch and runs cooler than its baby brother the 1717-1260kv. This makes it the perfect moderate, yet powerful, upgrade to the 1717 size motors that come stock in the Traxxas X- Maxx and Arrma 8s vehicles.

What ESC do we recommend?

The 1721-1260Kv is an excellent companion for the Mamba XLX2 which is already packaged together for purchase as a combo.

Castle Creations Motor - 4-Pole - Sensored Brushless 1721-1260Kv Specfications:

  • Product Weight: 1.71 lbs. / 27.36 oz
  • Water-Resistant: Yes
  • Forward: Yes
  • Reverse: Yes
  • Wire Gauge: 8 AWG
  • Product Length: 3.984252" (101 mm)
  • Motor Type: Brushless
  • Speed Control: Sold Separately
  • Input Voltage: 3s-8s
  • RPM/Volt (Kv): 45,000 RPM
  • Sensored: Yes
  • Outer Diameter: 1.87" (47 mm)
  • Programmable: Yes

In The Box
  • (1) 1721-1260Kv Brushless Sensored 4 Pole Motor


Key Info:
  • Brand: Castle Creations
  • Part No: M-CC060-0100-00
  • Barcode: 0819326010712
