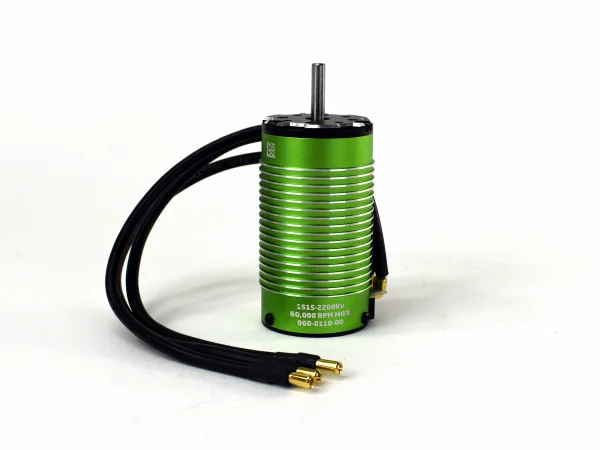

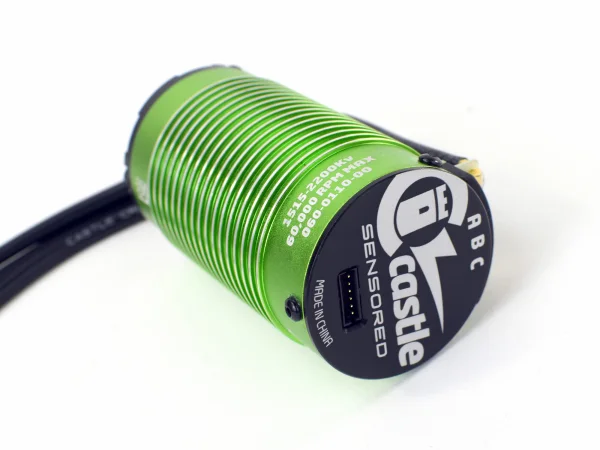

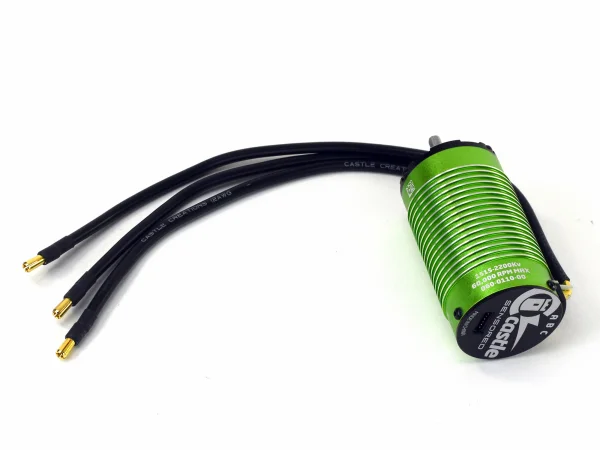

Castle Creations Motor - 4-Pole Sensored Brushless 1515-2200Kv V2 12-AWG - 4mm
Castle Creations Motor - 4-Pole Sensored Brushless 1515-2200Kv V2 12-AWG - 4mm
Castle Creations Motor - 4-Pole Sensored Brushless 1515-2200Kv V2 12-AWG - 4mm
Castle Creations Motor - 4-Pole Sensored Brushless 1515-2200Kv V2 12-AWG - 4mm
Castle Creations Motor - 4-Pole Sensored Brushless 1515-2200Kv V2 12-AWG - 4mm
Castle Creations Motor - 4-Pole Sensored Brushless 1515-2200Kv V2 12-AWG - 4mm

Castle Creations Motor - 4-Pole Sensored Brushless 1515-2200Kv V2 12-AWG - 4mm

Brand: Castle Creations

Part No: M-CC060-0110-00

£211.59 RRP £229.99
Pre-Order
Request Price Match Ask a Question Write a Review

The Castle Creations 1515-2200Kv V2 sensored brushless motor (part no. M-CC060-0110-00) brings a complete rotor and stator redesign to improve magnetic flux, delivering higher efficiency, smoother start-up, reduced temperatures and longer run times. This eBuggy-focused variant is factory-fitted with 12AWG silicone leads and 4mm bullet connectors for a tidy, low-resistance install.

Input voltage range is 2S–6S LiPo (4S max when paired with Mamba X or Cobra 10 ESCs). The 4-pole, 12-slot architecture, precision sensors and Castle’s timing strategy provide consistent torque and a clean, connected throttle feel across the rev range.

Key Features

  • Redesigned rotor and stator assemblies for improved magnetic flux
  • Reduced magnetic cogging and residual drag brake
  • Increased efficiency for lower temperatures and longer run times
  • Smoother start-up from a stop
  • Rebuildable design: replace front end bell/bearing or rotor/shaft assemblies
  • High-strength Kevlar wrap and 180°C grade neodymium sintered magnets
  • Oversized NMB bearings and high-temperature, high-purity copper windings
  • High-performance 0.2 mm lamination stacked stator
  • Oversized, low-resistance, gold-plated solder tabs
  • Sensor board with temperature-stabilised sensors; ROAR-standard sensor port
  • CNC-machined T6 aluminium front and rear end bells
  • Updated, modern aesthetic; designed and supported in Kansas, USA

Technology Highlights

  • QUIETSENSE sensor shielding for precise, noise-resistant feedback
  • SMARTSENSE hybrid control: sensored starts with ultra-efficient sensorless running
  • Optimised sensor alignment eliminates the need for mechanical timing adjustment

Applications & Suggested Compatibility

Suggested compatibility includes 1:8 scale buggies and on-road vehicles, plus 1:10 scale monster trucks up to 4.08 kg when paired with Castle Mamba X or Cobra 10 ESCs.

  • Vehicle examples (suggested compatibility): Tekno EB48, Losi 8IGHT-XE, Mugen MBX8R, Kyosho Inferno MP10e, Associated RC8B4

Notes

  • Rotor Replacement 011-0130-00 is not compatible with this V2 motor.
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Overview
Castles commitment to excellence drives us to refine the user experience, optimize performance, and ensure that every aspect of our products is meticulously designed to provide the utmost satisfaction. Let's face it, even the best products have room for refinement, which is why we are excited to introduce the newly redesigned 1515-2200Kv V2, a new spin on one of the most popular motors we have ever produced! The rotor and stator have been completely redesigned to improve magnetic flux. This results in higher efficiency, smoother start-up, reduced temperatures, and longer run times!

You might be familiar with the brute 1:8 scale version of the 1515-2200Kv V2 (10AWG wire and 6.5mm bullets) that has overpowered buggies, truggies, on-road vehicles for years. Now we are offering our modified eBuggy version (paired with Mamba X 1:10 scale ESC, click here for details), tailored with pre-soldered 4mm bullet connections and 12AWG wire!

Note: 011-0130-00 Rotor Replacement is NOT compatible with the V2 motor. Anew rotor replacement will be available in the future. Check back here for updates. 1515-2200Kv V2 FEATURES:

Application
Ideal for 1:8 scale buggies on-road vehicles and 1:10 scale monster trucks up to 4.08Kg when paired with the Mamba X or Cobra 10 ESCs.
Vehicle Examples
Tekno EB48, Losi 8IGHT-XE, Mugen MBX8R, Kyosho Inferno MP10e, Associated RC8B4
Motor Features
  • Input Voltage range: 2s-6s LiPo (4s max with Mamba X or Cobra 10)
  • Redesigned rotor and stator assemblies.
  • Reduced magnetic cogging, producing less residual drag brake.
  • Increased efficiency, resulting in lower temperatures and longer run times.
  • Smoother start-up, reducing cogging or stuttering when starting from a stop.
  • Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
  • High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
  • Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
  • Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
  • High-Performance 0.2mm Steel Lamination Stacked Stator
  • Oversized, low-resistance, gold-plated solder tabs
  • Sensor board with High Quality Temperature-Stabilized Sensors
  • T6 Aluminium CNC Machines Front/Rear End bell
  • Proudly Designed and Supported in Kansas, USA

  • The IMPROVED 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT.
  • QUIETSENSE technology shields the sensors from magnetic field noise generated from the motor coils and keeps your motor and ESC in sync at all times. Use of a Flux Shield in conjunction with secondary Sense Magnets delivers even HIGHER PRECISION and MORE EFFICIENT startups.
  • Our OPTIMIZED design eliminates the need for mechanical timing adjustments. Our sensor alignment method delivers uniform timing and torque in both directions, automatically.
  • REBUILDABLE design allows users to replace front end bell/bearing assembly or rotor/shaft assembly.
  • ROAR standard sensor port and labeled connections.
  • Updated modern and sleek design; looks as cool as it performs.

SMARTSENSE uses the motors sensors to start the motor to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle's ULTRA- EFFICIENT sensorless mode. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at all load points. Using mechanical timing adjustments alone, you can only target one driving condition, such as higher start power or higher top end speed. This sacrifices performance and efficiency during the other driving phases. Electronic timing in SMARTSENSE will advance timing automatically for peak performance during all driving conditions. This allows users to combine the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless drive.




Key Info:
  • Brand: Castle Creations
  • Part No: M-CC060-0110-00
  • Barcode: 0819326013041
