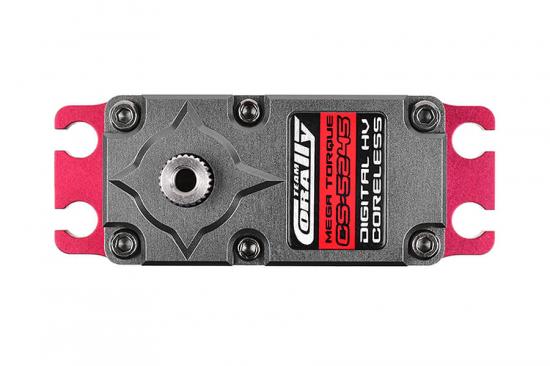

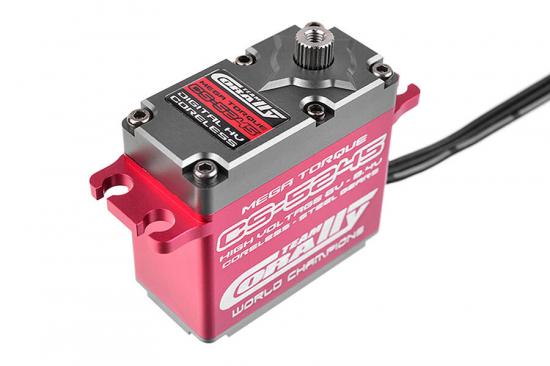

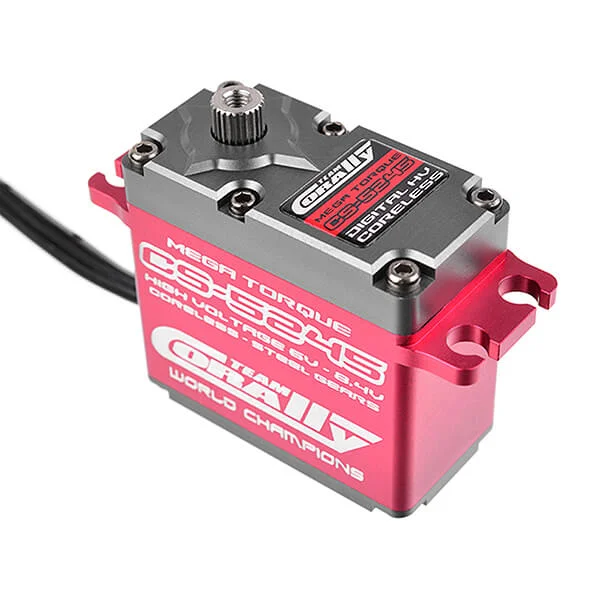

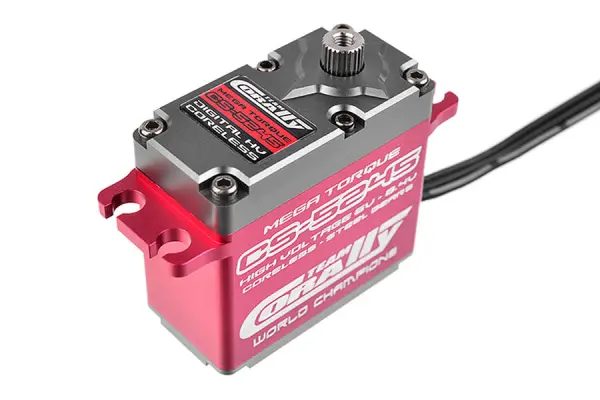

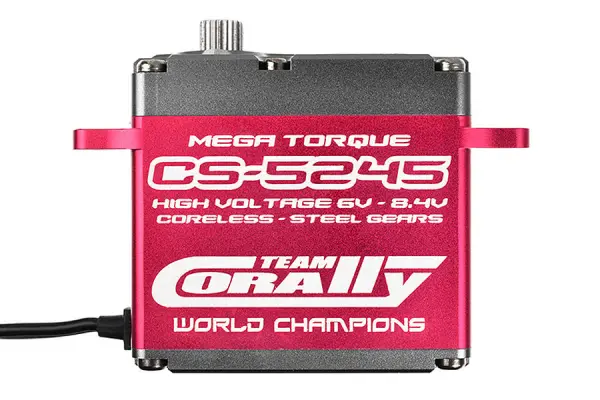

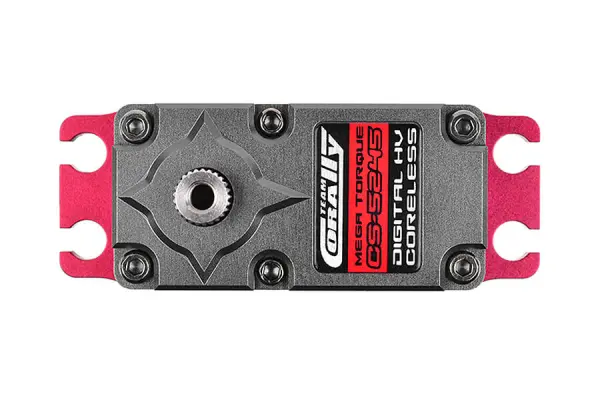

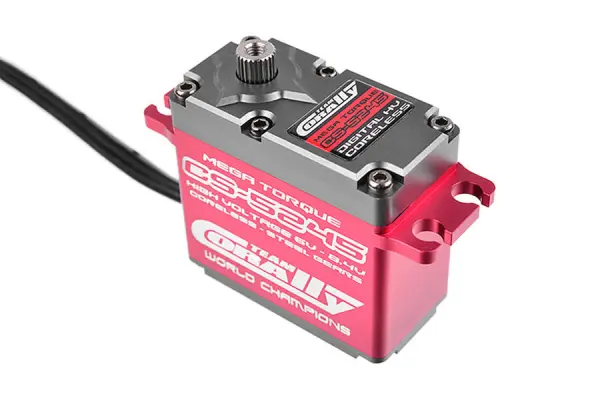

Corally Cs5245 Ultra H/Torque 45Kg Servo Coreless Motor

The Corally CS5245 Ultra High Torque 45kg Coreless Servo (part number C-52005) delivers the authority and precision demanded by serious RC drivers and pilots. Developed with racers in mind, this digital HV servo combines rapid response with robust construction, making it a strong choice where dependable steering or control is essential.

A full CNC-machined alloy case improves rigidity and heat dissipation, while steel gears and ball-raced support bring durability and smooth operation. Running on high voltage from 6.0 to 8.4V, the CS5245 provides quick transit times and powerful torque, aided by a coreless motor for crisp, precise movement.

Features

• Full CNC machined alloy case
• High Voltage 6.0 – 8.4V

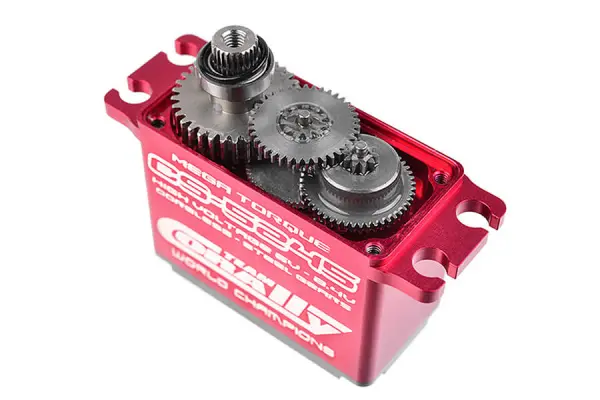

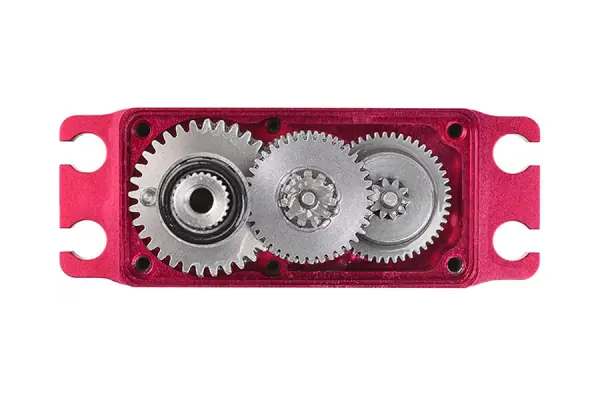

• Steel gears
• Ball Raced
• Coreless motor
• Ultra high torque
• Water resistant

Key Specifications

• Technology: Digital Ultra High Voltage
• Input voltage: 6.0V – 8.4V
• Servo type/size: Standard
• Motor: Coreless
• Gear material: Steel
• Bearings: Ball raced
• Case: CNC alloy
• Spline: 25T

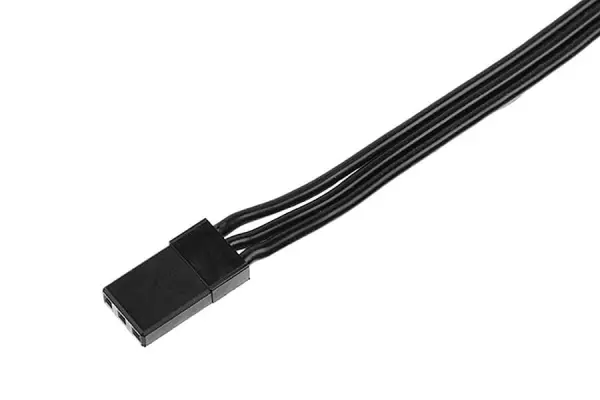

• Connector: JR
• Dimensions (L x W x H): 40.0 x 20.0 x 37.0 mm
• Weight: 73 g
• Speed: 0.12 sec/60° @ 6.0V; 0.11 sec/60° @ 7.4V; 0.10 sec/60° @ 8.4V
• Torque: > 25 kg/cm; 37.5 kg/cm @ 6.0V; 46.9 kg/cm @ 8.4V
• Water protection: Waterproof

Suggested Compatibility

• Monster trucks and crawlers
• RC cars requiring high torque steering
• RC airplanes where high-voltage digital control is suitable

Combining an alloy case, steel gears and HV performance, the Corally CS5245 (C-52005) provides a strong balance of speed, torque and precision for demanding RC applications.
