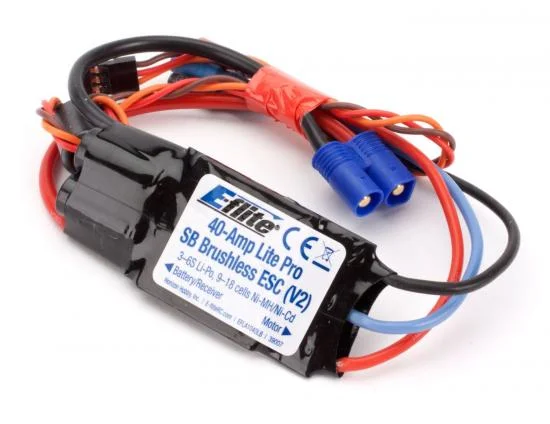

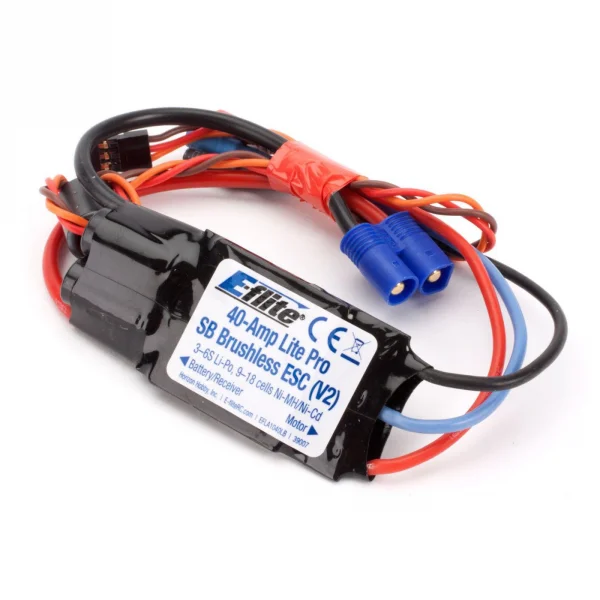

E Flite 40 AMP Lite Pro Switch-Mode BEC Brushless ESC (V2)

The E-flite® 40-Amp Lite Pro Switch-Mode BEC Brushless ESC (V2). This is a high-quality sensorless brushless electronic speed control with an integrated switch-mode BEC that is very lightweight and efficient. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication.

• Up to 40 amps continuous current with proper air flow and 55 amps burst current (15 seconds)
• 5A continuous current, 5V Switch-Mode BEC Circuit (Proper cooling and airflow required)
• Stronger BEC for support of most 3-axis stabilization systems
• Drive up to 7 analog or 6 digital standard-sized servos with the BEC on any recommended input voltage
• 3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
• Programmable motor braking
• Safe power-arm mode prevents accidental starts
• Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage
• Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)
• Programmable soft start for helis and airplanes
• Auto motor shut down if signal is lost or there is interference
• Programmable timing—5 user-selectable ranges, use with a large variety of brushless motors

E Flite 40 Amp Lite Pro Switch-Mode BEC Brushless ESC (V2) Specfications:

• BEC Voltage: 2.5A continuous
• Input Voltage: 10.8?22.2V
• Part Type: Electronics
• Output Connector: 3.5mm Bullet
• Connector Type: EC3
• Brakes: Yes
• Programmable: Yes
• Amperage: 40-60

• Brand: E Flite
• Part No: EFLA1040LB
• Barcode: 605482079171
• Fitment: Option Part
• Fitment: Standard Part
