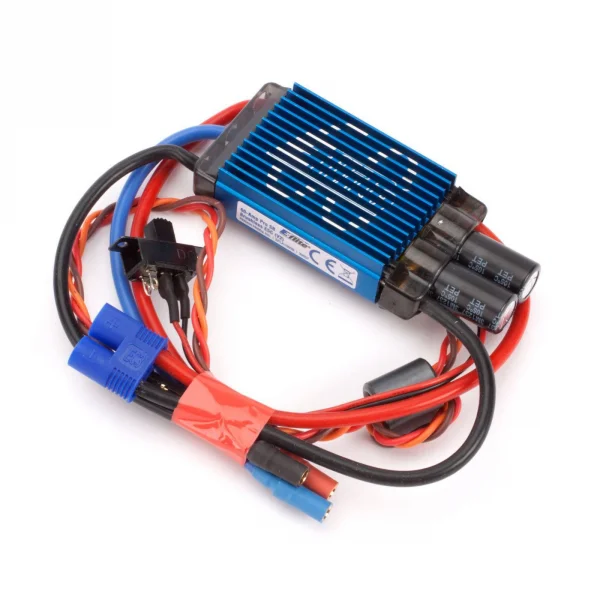

E Flite 60 AMP Pro Switch-Mode BEC Brushless ESC (V2)

The E Flite 60 Amp Pro Switch-Mode BEC Brushless ESC (V2) is a lightweight, efficient sensorless controller featuring an integrated 5A/5V switch-mode BEC. It powers your receiver and servos directly, removing the need for a separate receiver battery and simplifying installation while saving weight.

Delivering up to 60A continuous current (with proper airflow) and 75A burst for 15 seconds, this ESC suits a wide range of sport aeroplanes and helis on 3–6S LiPo. Comprehensive programming options include brake, timing, throttle range and soft start, while safety features such as safe power-arm mode and signal-loss motor shutdown add confidence. Pre-wired EC3 battery and 3.5mm motor bullet connectors make setup straightforward.

Key Features

• Up to 60 amps continuous current with proper airflow and 75 amps burst current (15 seconds)
• 5A continuous current, 5V switch-mode BEC circuit (proper cooling and airflow required)
• Stronger BEC for support of most 3-axis stabilisation systems
• Drive up to 7 analogue or 6 digital standard-sized servos with the BEC on any recommended input voltage
• 3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
• Finned heat sinks
• Programmable motor braking
• Safe power-arm mode prevents accidental starts
• Programmable low voltage cutoff with settings for 3-cell Li-Po (9V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage
• Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)
• Programmable soft start for helis and aeroplanes
• Auto motor shutdown if signal is lost or there is interference
• Programmable timing — 5 user-selectable ranges for use with a large variety of brushless motors
• Utilises smaller MOSFET technology to minimise weight
• Radio system power on/off switch
• Pre-wired connectors: EC3 on battery input and 3.5mm gold bullet connectors on motor output leads

Specifications

• Amperage: 40–60A
• Maximum Burst Current: 75A for 15 seconds
• Brakes: Yes — programmable
• Programmable: Yes
• Input Voltage: 10.8V–22.2V
• Output Connector: 3.5mm bullet
• Wire Gauge: 13 AWG
• Connector Type: EC3
• Part Type: Electronics

Suggested Compatibility

Suggested compatibility includes the Carbon-Z Cub SS (EFL12450/EFL12475) and Carbon-Z Cessna 150 (EFL1450/EFL1475). These applications typically require the DYNC0029 adapter.
