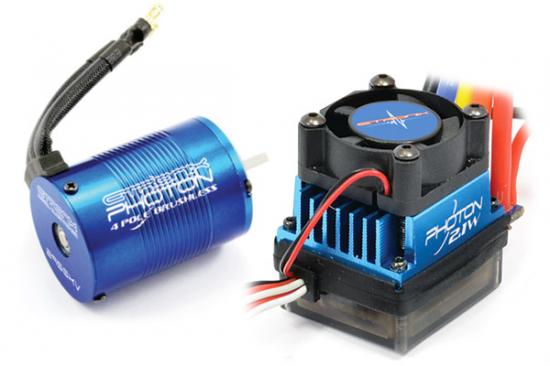

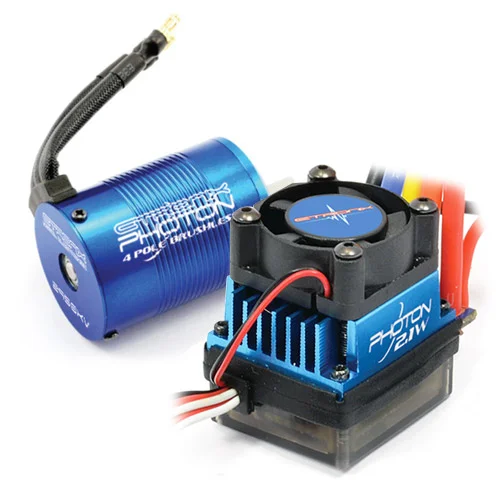

eTronix Photon 2.1 45A ESC Combo With 9.0R 4350Kv Motor
Brand: eTronix
Part No: ET0412
Shadow Stock: Usually ships next day
The eTronix Photon 2.1 45A ESC Combo with 9.0R 4350Kv motor (ET0412) brings sensorless brushless performance in a weatherproof package that is simple to set up and ideal as a first brushless upgrade from a stock brushed system. Designed for broad use across many R/C car applications, it offers a practical balance of power and control.
A supplied ET0107 Photon SBS LED Programming Card enables fine tuning of ten parameters so you can tailor throttle feel, braking and timing to your preference. The system supports 2–3S LiPo or 5–10S NiMH/NiCd and includes a dependable 2A/6V BEC. Please note the motor limit recommendations relative to battery cell count.
ESC Motor Limits
- 2S Battery - 4350KV
- 3S Battery - 2950KV
- 4S Battery - Not Compatible
Adjustable Parameters
- Supplied with (ET0107) Etronix Photon SBS LED Programming Card
- Cutoff Voltage (automatically detects the number of cells)
- Running Mode (forward w/o reverse, forward/reverse, forward with pause then reverse)
- Motor Timing (very low, low, normal, high, very high)
- Initial Acceleration (low, medium, high, very high)
- Throttle Percent Reverse (20% through to 100%)
- Throttle Limit (0% through to 90%)
- Percentage Braking (10% through to 100%)
- Percentage Drag Brake (0% through to 30%)
- Motor Rotation (normal, reverse)
- Neutral Range (deadband setting 2% through to 10%)
Specifications
- 2–3S LiPo
- 5–10S NiMH/NiCd
- 2A 6V BEC Output
- 4-pole sensorless brushless motor
- 45A constant current
- 260A burst current
Suggested Compatibility
- 1/10 buggy
- 1/10 truggy
- 1/10 short course
- 1/10 truck
Secured by Stripe
The convenience and performance of brushless technology is available for everyone with the Photon Sensorless Weatherproof System from Etronix. Simple to set-up and with a range of sensible KV rated motors for most r/c car applications and abilities the Photon is the ideal brushless start-up package or upgrade from a stock brushed set-up. An ideal choice for any 1/10th buggy, truggy, short course or truck application.
With the supplied programmable set up card (ET0107) the user can finely tune ten different parameters within the ESC to suit their particular needs.
When choosing your new ESC/ESC and motor combo, please take note of the relevant motor and battery cell count limits.
ESC Motor Limit:
- 2S Battery - 4350KV
- 3S Battery - 2950KV
- 4S Battery - Not Compatible
- Supplied with (ET0107) Etronix Photon SBS LED Programming Card
- Cutoff Voltage (automatically detects the number of cells)
- Running Mode (forward w/o reverse, forward/reverse, forward with pause then reverse)
- Motor Timing (very low, low, normal, high, very high)
- Initial Acceleration (low, medium, high, very high)
- Throttle Percent Reverse (20% through to 100%)
- Throttle Limit (0% through to 90%)
- Percentage Braking (10% through to 100%)
- Percentage Drag Brake (0% through to 30%)
- Motor Rotation (normal, reverse)
- Neutral Range (deadband setting 2% through to 10%)
- 2-3S Lipo
- 5-10S NiMH/NiCd
- 2A 6V BEC Output
- 4 Pole sensorless brushless motor
- 45A Constant current
- 260A Burst current
Key Info:
- Brand: eTronix
- Part No: ET0412
- Barcode: 5055323967825
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
It would be a bit weak and only 2s lipo and would get hot with that KV i would go for this HW38030207
That ESC has a deans connector on it.
Yes this is a standard 3.2mm shaft.
Its will work but we would highly recommend this system which has more torque and can run on 2s or 3s lipo ,the one you linked will only run on 2s lipo .
wheelspinmodels.co.uk/i/300322/
Yes it will, just keep an eye on the motor temps then if it gets too hot then add a 1/10 size heatsink and fan.
We don't sell HSP, so it's a bit hard to advise. This is a higher KV than your current system - but just bear in mind it is only a 45A ESC. It may be a touch quicker, but if you're after more speed I would look at a higher spec system eg say HW38010204
Sure, no reason why you cannot do that
Yes it would fit a TT01
This is a bit underpowered for a bullet. Take a look at say HW38010203 or HW38010200
It's a bit underpowered for the Slash
9.0R = 4350kv
It's a basic system but yes it would fit and run in that.
Pinion - I'd see how you get on but you will likely need to run a smaller one
Yes as a blitzer beetle uses a 540 size motor
We don't sell HSP so I can't advise 100% - but this is a basic combo, you would want to stick to 2S maximum.
It's a bit underpowered to be honest for a truck of that size.
These come with deans connected.
It'll fit - but is a bit underpowered for a truck of that weight.
A better choice would be say ET0425
It will fit in that car no problem, but we'd recommend a 2S maximum.
It'd be OK on 2S, but 3S would be too much.
No battery connection included.
The motor comes with connections fitted, the other half are included but not fitted so the customer can shorten motor wires and then solder on connections
