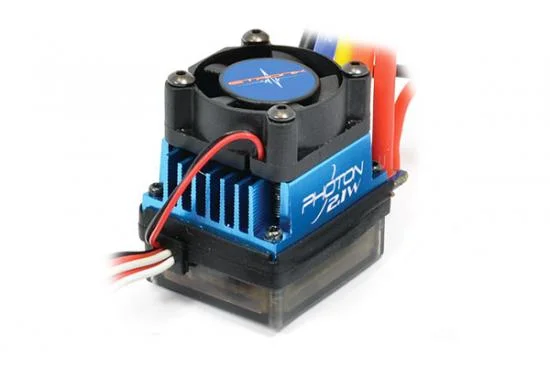

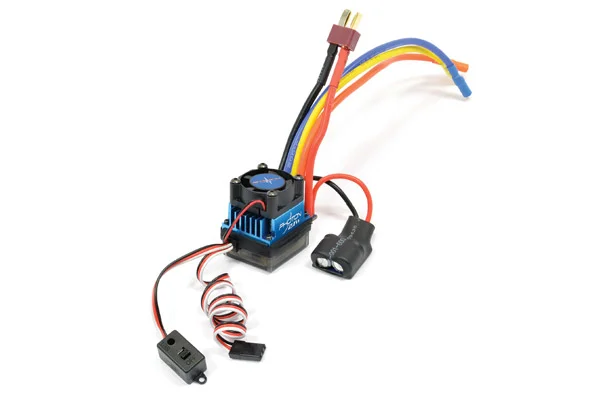

eTronix Photon 2.1W 45 AMP Splashproof Brushless ESC
eTronix Photon 2.1W 45 AMP Splashproof Brushless ESC
eTronix Photon 2.1W 45 AMP Splashproof Brushless ESC
eTronix Photon 2.1W 45 AMP Splashproof Brushless ESC

eTronix Photon 2.1W 45 AMP Splashproof Brushless ESC

Brand: eTronix

Part No: ET0125

£35.09 RRP £38.99

Shadow Stock: Usually ships next day

Collect Instore
Request Price Match Ask a Question Write a Review

The eTronix Photon 2.1W 45 AMP Splashproof Brushless ESC (ET0125) is a compact, robust controller for 1/10th applications. Delivering 45A constant current with 260A bursts and a 2A 6V BEC, it supports 2–3S LiPo or 5–10S NiMH/NiCd packs. Pair it with the optional eTronix ET0107 set-up card (available separately) to fine-tune ten parameters to suit your driving style.

Key Features

  • Splashproof construction
  • Supports sensorless brushless motors, including 4‑pole designs
  • 45A constant current; 260A burst current
  • Integrated 2A 6V BEC
  • Compatible with 2–3S LiPo or 5–10S NiMH/NiCd
  • Compact size for easy installation

Motor and Battery Limits

  • 2S LiPo: up to 4350KV
  • 3S LiPo: up to 2950KV
  • 4S: not compatible

Specifications

  • Dimensions: 45 x 33 x 37 mm (without fan)
  • Weight: 90 g

Programming and Setup

  • Works with the eTronix ET0107 programmable set-up card to adjust ten ESC parameters (card available separately)

Suggested Compatibility

  • Suggested compatibility: 1/10th scale RC cars, buggies and trucks using sensorless brushless power systems within the limits above
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

With systems available ranging from 45A through to 120A there is something within the Photon range for every 1/10th application. With the additional programmable set up card (ET0107) the user can finely tune ten different parameters within the ESC to suit their particular needs. (available separately)

When choosing your new ESC/ESC and motor combo, please take note of the relevant motor and battery cell count limits.


ESC Motor Limit:
  • 2S Battery - 4350KV
  • 3S Battery - 2950KV
  • 4S Battery - Not Compatible
Spec Check:
  • Splashproof
  • 2-3S Lipo
  • 5-10S NiMH/NiCd
  • 2A 6V BEC Output
  • 4 Pole sensorless brushless motor
  • 45A Constant current
  • 260A Burst current
  • Dimensions 45x33x37mm (without fan)
  • Weight 90g



Key Info:
  • Brand: eTronix
  • Part No: ET0125
  • Barcode: 5055323967658
  • Motor Type: Brushless
  • Fitment: Standard Part
  • LiPo Compatible: Yes
Standard Shipping

£3.95 to most of the UK

Express Shipping

£6.95 to most of the UK

Worldwide Shipping

Available at checkout

Reviews
No specific product reviews yet, why not write one?
WRITE A REVIEW
All reviews are subject to moderation
Questions & Answers
Real questions from real customers. Why not ask your own?
Does this come soldered
Oliver / 26th July 2023

No this is the soldered version ET0125FTX

Steve @ Wheelspin Models
Hi, I’m looking for an esc for a surpass hobby C3530 1400kv brushless and sensor less motor (running a RC car). Will this esc do the job? What I’m unsure about is the esc specification says “4 pole” motor - the surpass motor spec sheet says it has 14 poles! I have a quicrun 16bl30 running a 1100kv variant of the C3530 motor (rated at 30 amps) but the amp rating on the 1400kv motor is stated as 35 amps and the quicrun 60 amp esc seems a bit oversized for what I need. I’m also using a 3s lipo battery. Any suggestions would be much appreciated. Thanks, Robert
Robert / 19th February 2023

I would look at something like this and use a higher amp just in case  ET0126

Si @ Wheelspin Models
Hi whats the maximum recommended voltage for this with a 3s lipo and a 2950kv motor in my ftx carnage?
Matthew / 21st March 2021

This is 2S max, and at only 45A is low rated - I wouldn't use this in a heavier truck like the carnage

Ben @ Wheelspin Models
Will it work with my ftx vantage
Stefan / 26th January 2021

Yes if you have the brushless vantage

Ben @ Wheelspin Models
Does this come with banana plug and bullet for motor thank you
Louis / 29th May 2020

ET0125 doesn’t come with any connectors. ET0125FTX is factory fitted with a deans connector for the battery and the same motor bullet/banana connectors as an FTX Carnage Brushless. (3/3.5mm? The exact size I cannot remember).

Ben @ Wheelspin Models
Does the ETO126 E.tronix Photon 2.1w60 have reverse .
Derek Coffin / 22nd January 2020

Yes these have reverse

Ben @ Wheelspin Models
What width are the plugs that connect it to the motor?
Leo Gargiulo / 20th February 2018

The ESC does not come with any connectors as all when purchased at this part number, only the combos come with plugs, 3.5mm ones.



Ben @ Wheelspin Models
what size are the bullet connectors on this ecs and with it work with the maverick strada brushless motor many thanks wayne rogers
Wayne Rogers / 9th November 2017

3.5mm sockets on the motor wires and Deans on the battery.

It should work OK with the Maverick brushless motor, but we have not tried it specifically.

Ben @ Wheelspin Models
