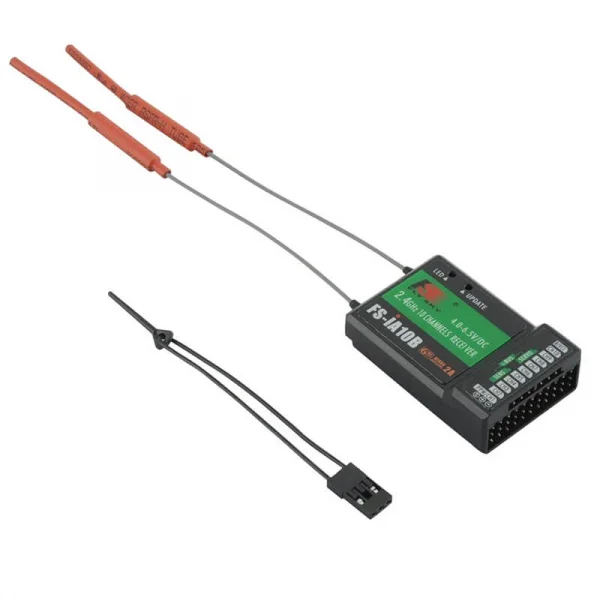

FlySky FS-iA10B 10Ch 2.4GHz Receiver

The FlySky FS-iA10B is a 10-channel 2.4GHz receiver built on the AFHDS 2A protocol, offering versatile signal outputs and RSSI support in a compact package. Dual 150mm copper tube antennas enhance signal reception, while a broad operating voltage of 3.5–9.0V DC suits a range of RC applications. Part number: FS-IA10B.

Key Specifications

• PWM channels: 10
• Wireless frequency: 2.4GHz
• Wireless protocol: AFHDS 2A
• Range: 500–1500m (in the air)
• Antenna type: Dual copper tube antenna (150mm × 2)
• Power input: 3.5–9.0V DC
• RSSI: Supported
• Data ports: PWM / PPM / i.bus / s.bus
• Operating temperature: -10°C to +60°C
• Humidity range: 20%–95%
• Online update: Yes
• Dimensions: 47 × 33.1 × 14.7 mm
• Weight: 19.3 g
• Certification: CE, FCC ID: N4ZFLYSKYIA10

This 10-channel receiver provides flexible connectivity via PWM, PPM, i.bus and s.bus interfaces, making it suitable for multi-channel control setups where range, compact size and protocol support are priorities.
