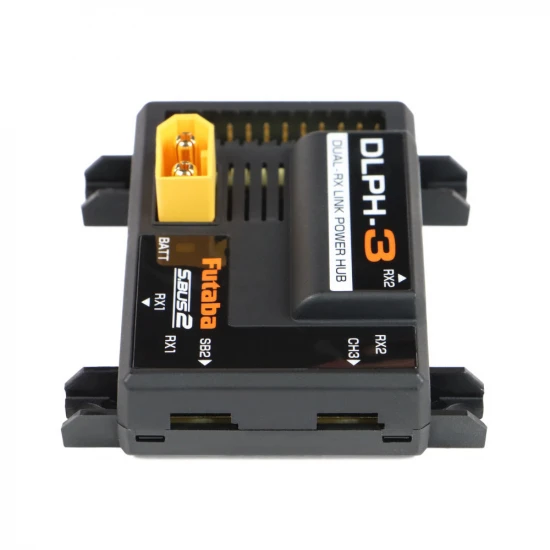

Futaba DLPH-3 10 Channel Dual RX Link Power Hub — image 1 of 8

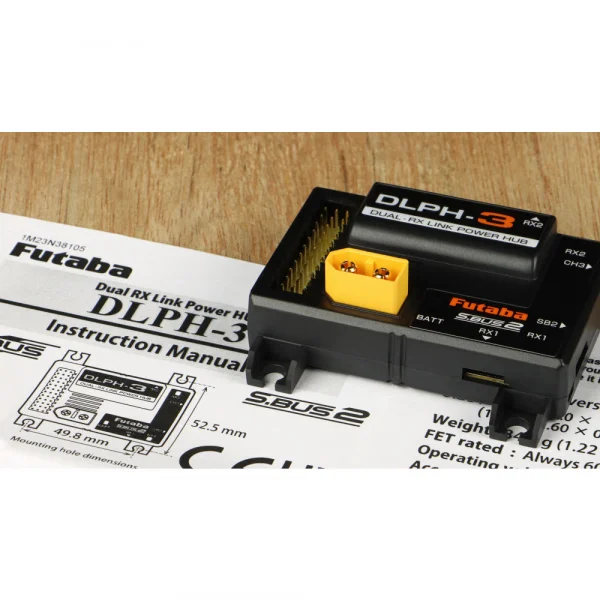

Futaba DLPH-3 10 Channel Dual RX Link Power Hub — image 2 of 8

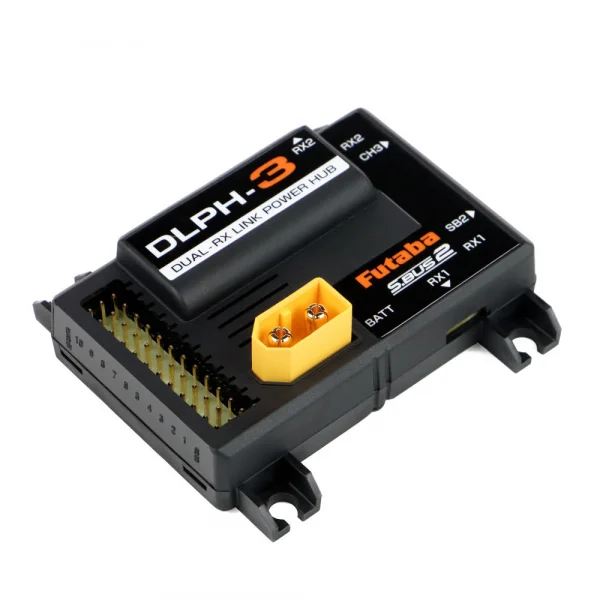

Futaba DLPH-3 10 Channel Dual RX Link Power Hub — image 3 of 8
Futaba DLPH-3 10 Channel Dual RX Link Power Hub — image 4 of 8

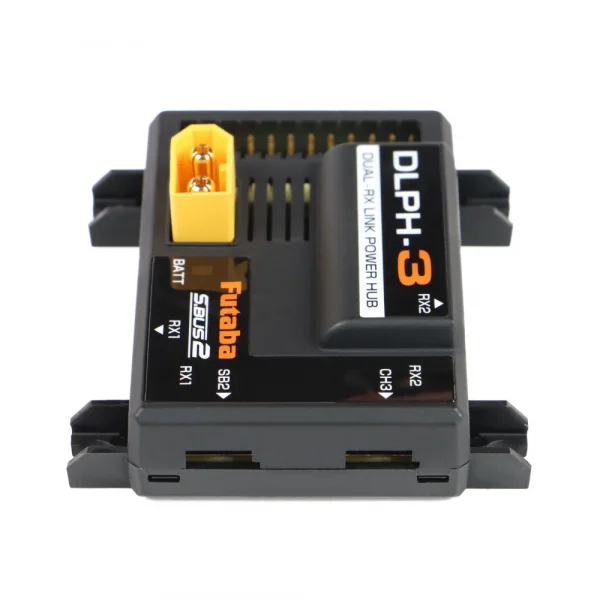

Futaba DLPH-3 10 Channel Dual RX Link Power Hub — image 5 of 8

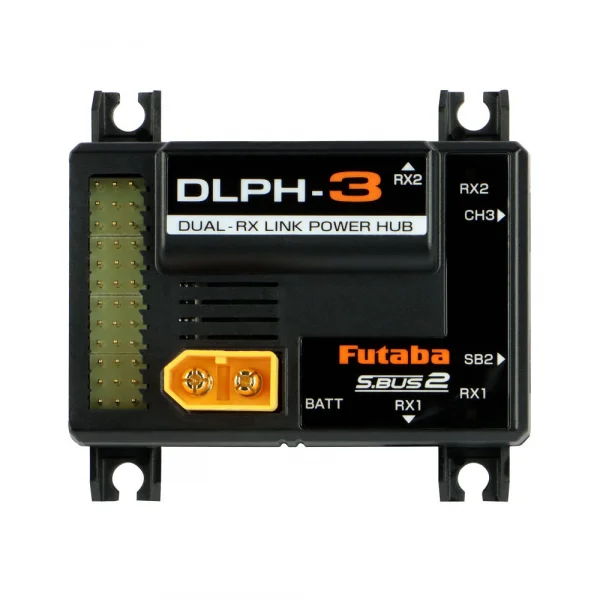

Futaba DLPH-3 10 Channel Dual RX Link Power Hub — image 6 of 8

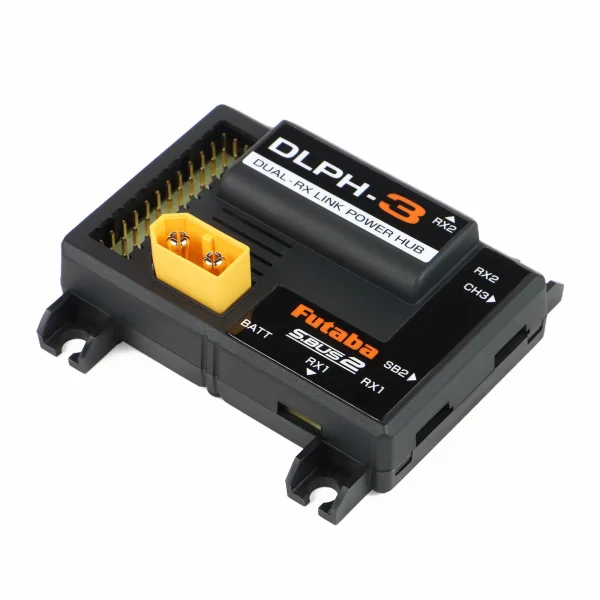

Futaba DLPH-3 10 Channel Dual RX Link Power Hub — image 7 of 8
Futaba DLPH-3 10 Channel Dual RX Link Power Hub — image 8 of 8
Futaba DLPH-3 10 Channel Dual RX Link Power Hub
Futaba DLPH-3 10 Channel Dual RX Link Power Hub
Futaba DLPH-3 10 Channel Dual RX Link Power Hub
Futaba DLPH-3 10 Channel Dual RX Link Power Hub
Futaba DLPH-3 10 Channel Dual RX Link Power Hub
Futaba DLPH-3 10 Channel Dual RX Link Power Hub
Futaba DLPH-3 10 Channel Dual RX Link Power Hub
Futaba DLPH-3 10 Channel Dual RX Link Power Hub

Futaba DLPH-3 10 Channel Dual Rx Link Power Hub

Brand: Futaba

Part No: FUT05102759-3

£107.99 RRP £119.99

Usually ships next day

UK Delivery
Get it by Tuesday 24th Nov (Order within 17h 5m)
Store Collection (Cannock)
Monday 23rd Nov, once stock arrives

Finance options available at checkout.

Popular with customers who buy products like the Futaba DLPH-3 10 Channel Dual RX Link Power Hub

Description

The Futaba DLPH-3 10 Channel Dual RX Link Power Hub, part number FUT05102759-3, is a compact, high-current switching unit designed for large R/C aircraft. It links two Futaba S.Bus or S.Bus2 receivers, so if the main receiver loses signal the back-up receiver takes over seamlessly and helps prevent a control system failure.

The hub can PWM-connect 10 high-voltage servos and its output FET is rated for peak instantaneous current of up to 60A. It manages the distribution of power, telemetry and current in one unit, while supplying a stabilised voltage to both receivers. An optional Futaba GYA573 6-axis gyro can be added through the S.Bus2 system, and the GYA553 is also listed as suggested compatibility.

The hub is intended for 2s LiFe packs and 2s or 3s LiPo packs, and connects to the battery through an XT60 connector. Its telemetry sensor function constantly monitors and reports battery voltage. If the battery level at start-up is below 30 or 40%, the hub will not transfer power to the receivers.

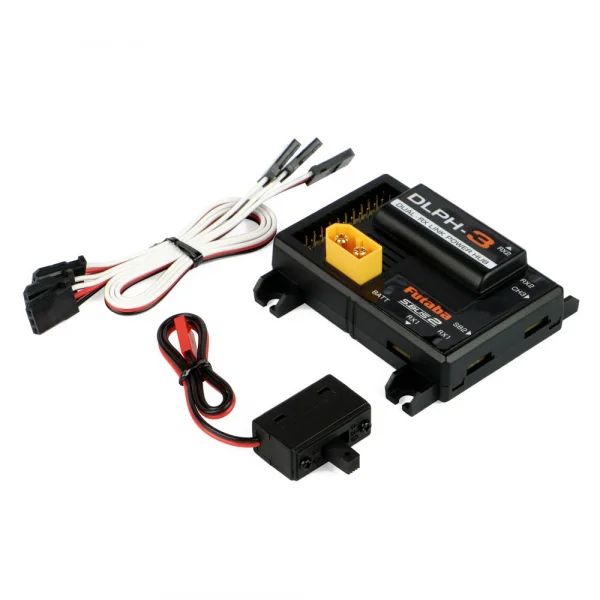

What's Included

  • DLPH-3 power hub
  • Switch harness
  • Mounting set with eyelets, screws and grommets
  • 3 connection leads for receiver and gyro
  • Instruction sheet

Specifications

  • Weight: 34.6 g
  • Length: 66 mm
  • Width: 44 mm
  • Height: 19 mm
  • Battery connector: XT60
  • Colour: Black
  • Recommended age: 14+

Specifications

Futaba’s DLPH‑3 Dual Rx Link Power Hub is a compact, high‑current switching unit designed for large R/C aircraft. It allows pilots to link Futaba S.Bus/S.Bus2 receivers so that if the main receiver loses signal, the back-up receiver will be seamlessly utilised to prevent control system failure.

With the ability to PWM connect 10 high voltage, high performance servos and handle an attendant peak instantaneous current draw of up to 60A, the DLPH-3 is an all-in-one solution to managing the distribution of power, telemetry and current whilst supplying a stabilised voltage to the twin receivers, allowing them to do what they do best and maintain Futaba’s rock-solid and dependable transmission link. This latest DLPH Power Hub also includes an option to add Futaba’s powerful GYA573 6-axis gyro using the S.Bus2 system.

Compatible battery technologies include a 2s LiFe and 2s or 3s LiPo pack with the system’s telemetry sensor function constantly monitoring and reporting the battery voltage. Meanwhile if the DLPH-3 detects a battery level at start-up of less than 30 or 40% it will not transfer power to the receivers.

Futaba DLPH-3 10-channel Dual Rx Link Power Hub Key Features:

  • Connect 10 high performance servos.
  • Dual receiver redundancy.
  • Output FET rated at 60A.
  • Suits LiPo & LiFe batteries.
  • Compatible with GYA553 & 573 gyros (S.Bus2).
  • Auto monitoring of battery voltage.
  • Low battery start-up protection.
  • Industry-recognised XT60 battery connector.
  • Compact size & light in weight.

What's in the Box:

  • 1x DLPH-3 intelligent Power Hub.
  • 1x Switch harness.
  • 1x Mounting set (eyelets, screws & grommets).
  • 3x Connection leads (Rx & gyro).
  • 1x Instruction sheet.

Futaba DLPH-3 10-channel Dual Rx Link Power Hub Tech Specs:

  • Weight: 34.6g / 1.22oz
  • Shipping Weight: 0.11kg / 0.23lbs
  • Product Height: 19mm / 0.76in
  • Product Width: 44mm / 1.72in
  • Product Length: 66mm / 2.60in
  • Connector: Futaba / XT60
  • Age Recommendation: 14+
  • Colour: Black


    Key Info:
    • Brand: Futaba
    • Part No: FUT05102759-3
    • Barcode: 4513886040771
    • Frequency: 2.4Ghz
    • Channels: 9+ Channel
