Description

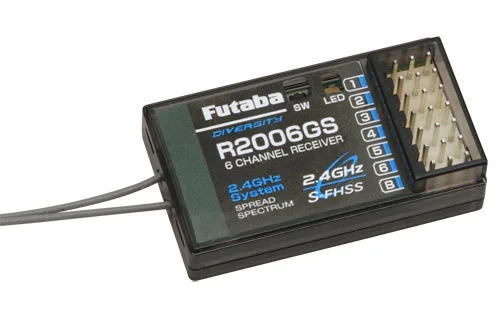

The Futaba R2006GS is a compact 6-channel 2.4 GHz receiver for aircraft models, combining S-FHSS/FHSS auto detection with a lightweight, slim form factor for easy installation. Weighing just 8.5 g and measuring approximately 25 × 43 × 9 mm, it suits space-conscious airframes while maintaining straightforward setup and operation. Part number FUT05102515-3.
Key Features
- S-FHSS/FHSS with auto detection
- 6 channels for air applications
- Dual antenna design
- High voltage operation: 4.8–7.4 V
- Current drain: 80 mA
- 2.4 GHz system
Technical Specifications
- Operating Voltage: DC 4.8–7.4 V
- Radio Protocol: S-FHSS [Air], FHSS
- Channels: 6
- Weight: 8.5 g (0.30 oz)
- Dimensions: Width 25 mm (0.98 in), Length 43 mm (1.70 in), Height 9 mm (0.35 in)
- Colour: Black
- Age Recommendation: 14+
Secured by Stripe
Futaba R2006GS 6 Channel Air Receiver Manuals & Guides
Manuals & Guides
Specifications
R2006GS– S-FHSS 2.4 GHz System 6-Channel Receiver
For Aircraft Models
S-FHSS/FHSS (Auto Detection)
Size:
25 x 43.1 x 8.8 mm
0.98 x 1.7 x 0.35 in
Weight:
8.5 g
0.3 oz
Operating Voltage:
DC 4.8V - 7.4V
Futaba R2006GS 6 Channel Air Receiver Key Features:
- Input Voltage: 4.8-7.4 V
- Dual Antenna
- High Voltage
- Current Drain: 80 mA
Manuals & Parts Explosions:
Futaba R2006GS 6 Channel Air Receiver Tech Specs:
- Weight: 8.5g / 0.30oz
- Shipping Weight: 0.05kg / 0.11lbs
- Product Height: 9mm / 0.35in
- Product Width: 25mm / 0.98in
- Product Length: 43mm / 1.70in
- Age Recommendation: 14+
- Channels: 6
- Radio Protocol: S-FHSS [Air], FHSS
- Colour: Black
Key Info:
- Brand: Futaba
- Part No: FUT05102515-3
- Barcode: 4513886022517
- Frequency: 2.4Ghz
- Channels: 6 Channel
