Futaba R3006SB 6ch S.BUS HV Receiver
Brand: Futaba
Part No: FUT05102624-3
Shadow Stock: Usually ships next day
Finance options available at checkout.
Description

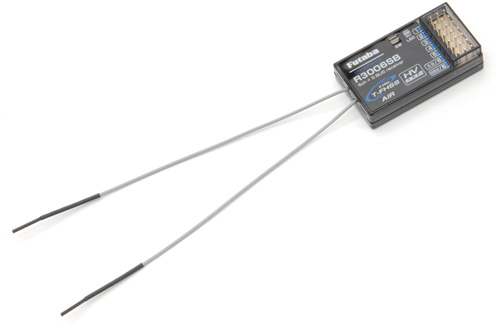

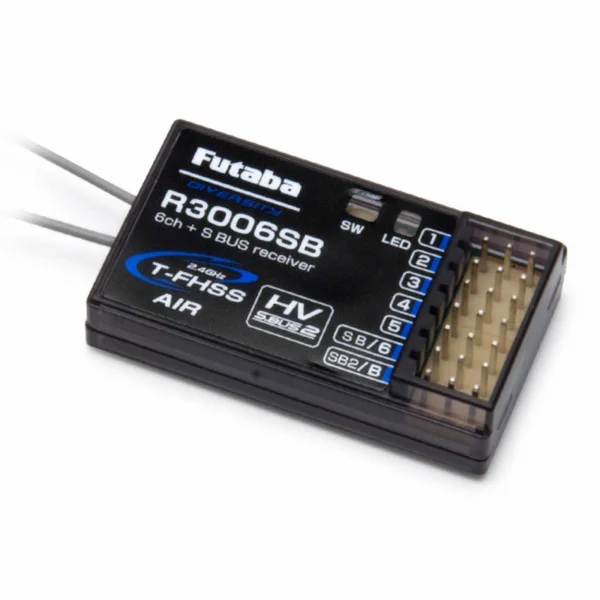

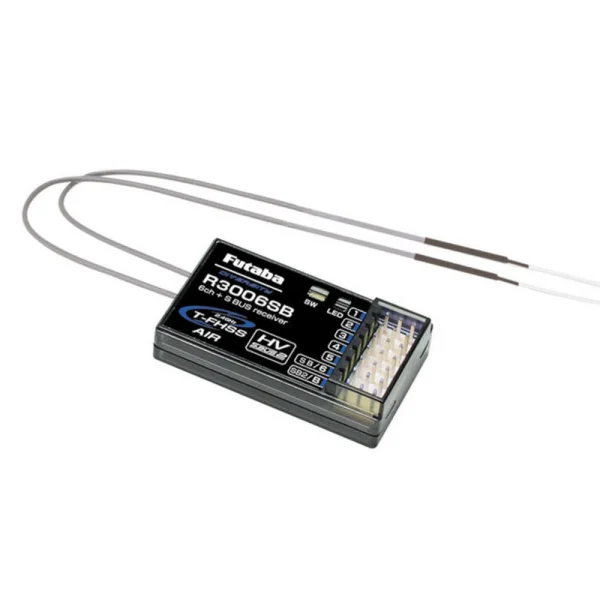

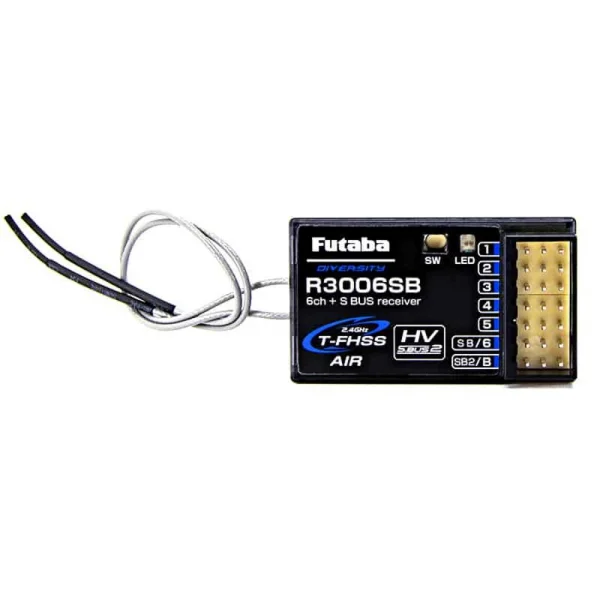

The Futaba R3006SB (FUT05102624-3) is a compact 6-channel HV receiver that utilises Futaba’s 2.4GHz T-FHSS modulation and provides both S.BUS and S.BUS2 connectivity. Alongside the serial bus options, it offers six standard PWM outputs, giving flexible wiring for a wide range of installations. Using the S.BUS2 port, the receiver supports bi-directional communication with a T-FHSS Air Futaba transmitter and allows the use of telemetry sensors.
Key Features
- 2.4GHz T-FHSS modulation
- S.BUS and S.BUS2 outputs
- Six standard PWM outputs alongside S.BUS/S.BUS2
- Bi-directional communication via S.BUS2 with a T-FHSS Air Futaba transmitter
- HV-ready input range: 3.5–8.4V
- Lightweight design at 8.5g
- Compact footprint: 25 x 43.1 x 8.9mm
Specifications
- Channels: 6
- Modulation: 2.4GHz T-FHSS
- S.BUS: Yes (S.BUS and S.BUS2)
- Voltage: 3.5–8.4V
- Dimensions: 25 x 43.1 x 8.9mm
- Weight: 8.5g
Suggested Compatibility
- Futaba T-FHSS Air transmitters
- Futaba S.BUS2 telemetry sensors
Secured by Stripe
Futaba R3006SB 6 Channel S-BUS HV Receiver Manuals & Guides
Manuals & Guides
How-To Guides & Articles
Specifications
The R3006SB receiver can use S.Bus as the main link/communication to the servos or a combination of S.Bus and the conventional outputs together. It features 6 standard PWM outputs in addition to S.Bus and S.Bus-2 outputs.Features bi-directional communication with a T-FHSS Air Futaba transmitter using the S.BUS2 port. Using the S.BUS2 port with an impressive array of telemetry sensors may be utilized.
| Specifications | |
|---|---|
| Modulation | 2,4GHz T-FHSS |
| S.BUS | Yes |
| Weight | 8.5g |
| Voltage | 3.5 - 8.4V |
| Channels | 6 |
| Dimensions | 25 x 43.1 x 8.9mm |
Key Info:
- Brand: Futaba
- Part No: FUT05102624-3
- Barcode: 4513886027581
- Frequency: 2.4Ghz
- Channels: 6 Channel
