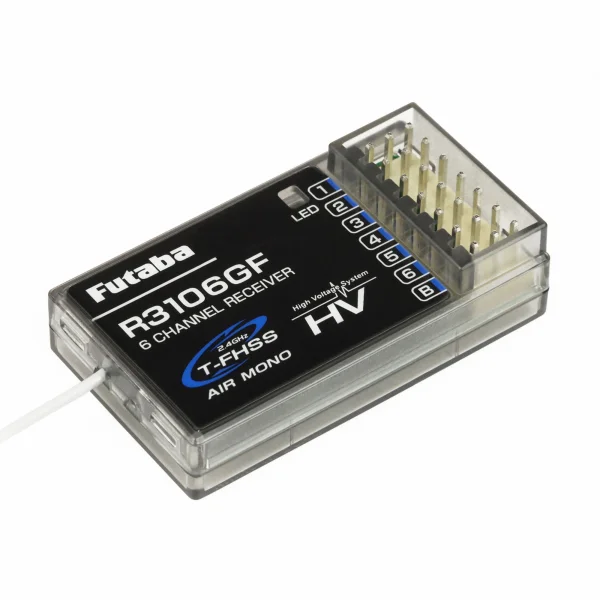

Futaba R3106GF 6-Channel T-FHSS Air Receiver FUT05102641-3

The Futaba R3106GF 6-channel Air Receiver T-FHSS, part number FUT05102641-3, is a mono-directional 2.4 GHz receiver designed for aircraft models. It provides six channels and works on the T-FHSS system, so it is a receiver for fliers who use T-FHSS Air equipment.

This is a no-telemetry receiver, meaning it receives control signals from the transmitter but does not send data back. It has a rated input voltage of 4.8 V to 7.4 V DC and can operate across a wider range of 4.0 V to 8.4 V DC. Compatibility with a particular transmitter or model should be treated as suggested only and checked against the transmitter's own documentation.

The receiver is black and is made in a compact, lightweight form, which can be useful where space and weight in an airframe are limited. Futaba recommends it for ages 14 and over.

Specifications

• Channels: 6
• Length and width: 43 x 25 mm
• Weight: 7.8 g
• Rated voltage: 4.8-7.4 V DC
• Voltage range: 4.0-8.4 V DC
• Telemetry: none
