Futaba R3204SB 4 Channel Air Receiver FUT05102738-3

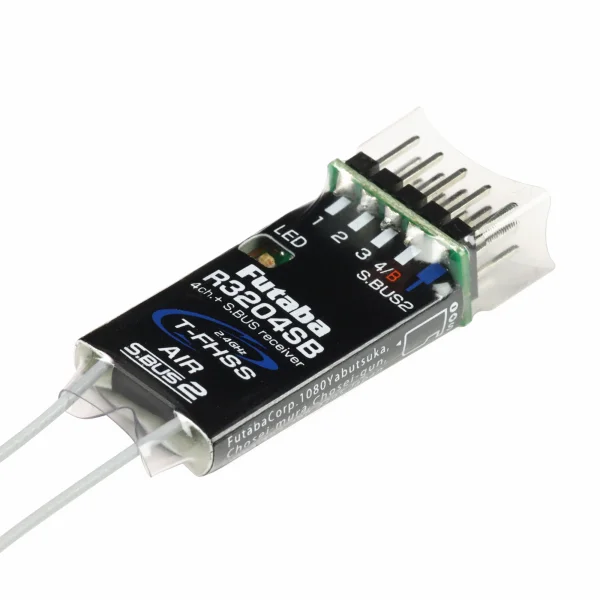

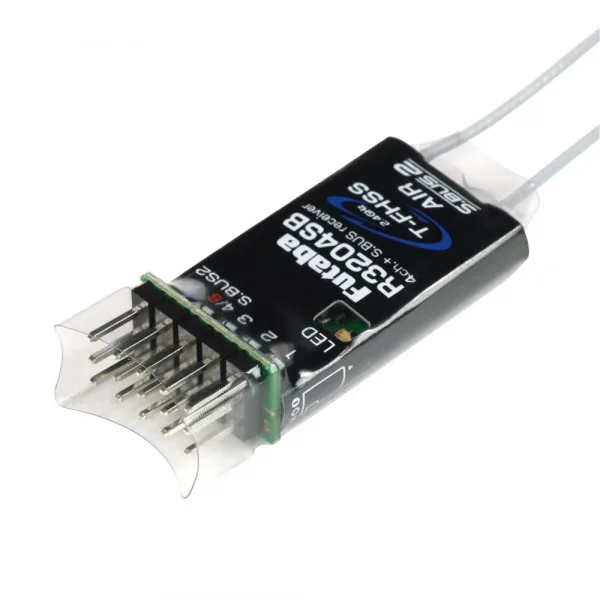

The Futaba R3204SB 4 Channel Air Receiver (18-channel S.Bus) T-FHSS, part number FUT05102738-3, is a four-channel air receiver for aircraft models.

It uses the T-FHSS Air telemetry system and supports an 18-channel S.Bus connection. The receiver also supports Link ID and is suitable for use with a 1S LiPo power supply. Its four channels provide the standard receiver channel count stated for this model, while the S.Bus system provides the additional channel capacity identified in the product name.

The receiver operates from the voltage ranges specified by the manufacturer, with a listed operating voltage of DC 3.7–7.4V and an input voltage specification of 3.5–8.4V. Its black housing measures 41.4 mm in length, 18 mm in width and 9.9 mm in height, with a weight of 4.8 g.

Specifications

• Receiver type: T-FHSS Air telemetry receiver
• Channels: 4
• S.Bus capacity: 18 channels
• Link ID: Supported
• Operating voltage: DC 3.7–7.4V
• Input voltage: 3.5–8.4V
• Dimensions: 41.4 x 18 x 9.9 mm
• Weight: 4.8 g
