Futaba R3306GY 6-Axis Gyro Receiver FUT05102766-3
Brand: Futaba
Part No: FUT05102766-3
Usually ships next day
Finance options available at checkout.
Description

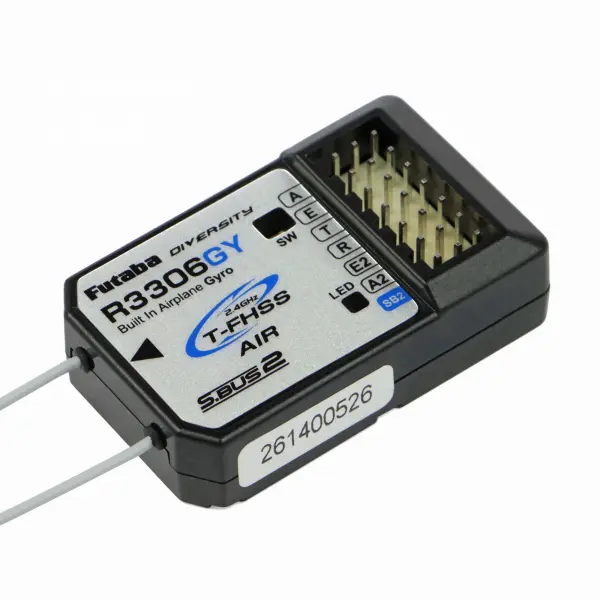

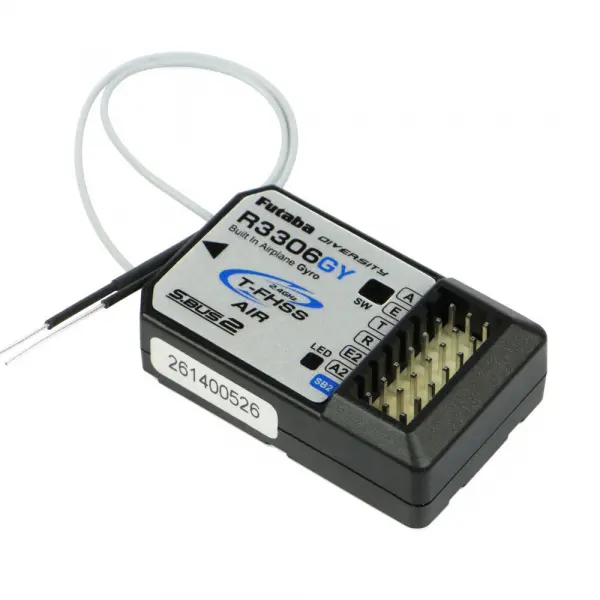

The Futaba R3306GY Receiver + 6 Axis Gyro With S.BUS2 (FUT05102766-3) is a combined T-FHSS receiver and six-axis gyro for fixed-wing radio-controlled aircraft. It provides six conventional PWM outputs for the primary flight controls, together with an S.Bus2 port for compatible equipment. Dual antenna diversity and full-range reception support the receiver function, while remote gain adjustment allows the gyro response to be adjusted from a compatible transmitter.
The gyro offers four flight modes: Normal, Recovery, AVCS and Off. Normal provides standard stabilisation, while AVCS supplies heading-hold operation. Roll-flat assistance can also be switched on to help keep the wings level, making it suitable as a beginner-focused co-pilot function. Gyro settings can be adjusted using the unit's push-button controls, a GBP-1 program box or, with compatible transmitters, through the transmitter screen.
Features
Suggested compatibility includes both electric and i.c.-powered fixed-wing aircraft, with support for numerous wing configurations. The receiver can accommodate four aileron functions and two elevator functions. When used with Futaba SBD-series S.Bus servo decoder modules, the system can support up to eight additional control functions, such as flaps, retracts and air brakes.
- Six conventional PWM channels
- S.Bus2 output
- Six-axis gyro
- T-FHSS protocol
- Dual antenna diversity
- Remote gain adjustment
- Four selectable flight modes
- Switchable roll-flat assistance
What's Included
- Futaba R3306GY receiver and gyro
- Four self-adhesive mounting pads
At 15.5 grams, the R3306GY combines the receiver and stabilisation functions in one unit. Its S.Bus2 connectivity provides a route to compatible Futaba equipment, while the conventional PWM outputs allow standard flight-control connections to be used alongside the gyro functions.
Secured by Stripe
Futaba R3306GY Receiver + 6 Axis Gyro With S.BUS2 Manuals & Guides
Specifications
Futaba's first combined fixed-wing receiver and gyro is a very welcome addition to the range, especially as it's so small, light and powerful. Packing T-FHSS protocol, a full range receiver, six conventional PWM outputs (covering the four primary flight controls), an S.Bus2 output and, of course, a 6-axis gyro, it also boasts remote gain, four flight modes, support for numerous wing configurations and provision for four aileron and two elevator functions. Used in conjunction with Futaba's SBD series S.Bus servo decoder modules, up to eight additional control functions (such as flaps, retracts and air brakes) can be accommodated with ease. With the option to set the gyro functions in any one of three ways either by a push-button on the unit, using a GBP-1 program box or, for compatible transmitters, on screen there's huge set-up flexibility here. With both normal and AVCS (heading hold) stabilisation, switchable 'roll flat' functionality (which acts as a beginner-friendly co-pilot, takes over aileron control and keeps the wings level) and compatibility with either electric or i.c. powered aircraft, there's every reason to give this highly sophisticated box of tricks a try. Not only will you love its ease of use, youll adore the way it benefits your flying and expands the flight envelope of your aircraft.
Futaba R3306GY Six (expandable) Channel T-FHSS Receiver / 6-axis Fixed-wing Gyro with S.Bus2 Output Features:
- Six conventional PWM channels.
- S.Bus2 port.
- 6-axis gyro.
- T-FHSS protocol.
- Dual antenna diversity.
- 15.5 grams.
- Four flight modes Normal; Recovery; AVCS; Off.
- SBD-series decoder compatible.
- Switchable beginner-friendly roll flat assistance.
- Suitable for electric & i.c. aircraft.
- Remote gain adjustment.
- 1x R3306GY Rx / Gyro.
- 4x Self-adhesive mounting pads.
Key Info:
- Brand: Futaba
- Part No: FUT05102766-3
- Barcode: 4513886041761
- Frequency: 2.4Ghz
- Channels: 6 Channel
- Extra Features: Stability System
