Description

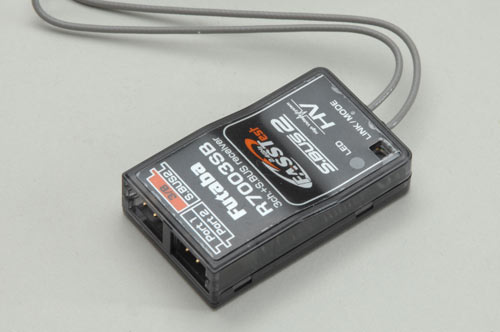

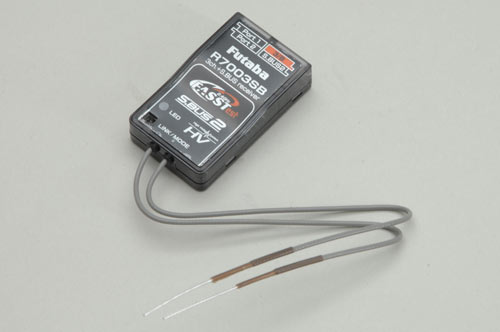

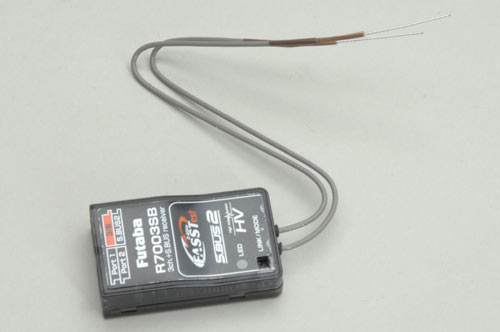

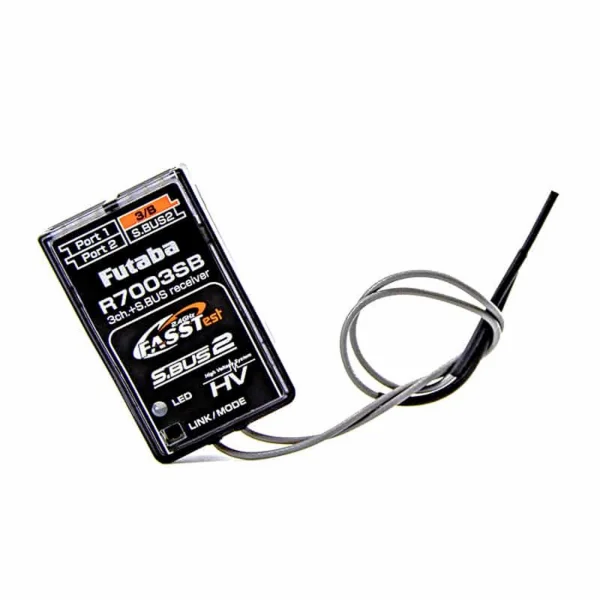

The Futaba R7003SB 3/18ch S-BUS HV Receiver (part number FUT05102574-1) is a tiny, full-range FASSTest unit tailored for S.Bus-based setups. Designed primarily for helicopters and drones, it is equally suited to fixed-wing models using the S.Bus system, or applications needing only three PWM channels (suggested compatibility). Weighing just 7.2 g and housed in a moulded plastic case, it offers robust performance with built-in telemetry and high-voltage capability.
Delivering up to 18 channels via S.BUS/S.BUS2 or 3 conventional PWM outputs, the R7003SB simplifies complex installations. It features dual-antenna diversity for reliable RF performance and integrates telemetry for receiver voltage, signal strength and external voltage, with an EXT-VOL sensor included in the box.
Key Features
- FASSTest (18ch & 12ch)
- Telemetry with built-in voltage sensor
- EXT-VOL external voltage sensor included
- PWM allows 3 channels; S.BUS allows up to 18 channels
- Supports S.BUS & S.BUS2
- Small and lightweight (7.2 g)
- Moulded plastic case
- Dual antenna diversity (coaxial antenna)
- Full range operation
Specifications
- Modulation: FASSTest (18ch & 12ch)
- Channels: 3 PWM (18 using S.BUS)
- S.BUS: S.BUS & S.BUS2
- Telemetry: Yes (EXT-VOL sensor included)
- Voltage: 3.7–7.4 V (3.7–8.4 V range)
- Dimensions: 37.4 x 22.5 x 9.3 mm (0.89 x 1.47 x 0.37")
- Weight: 7.2 g (0.25 oz)
- Aerial Length: 140 mm (20 mm tips)
- Fail Safe: Battery F/S voltage is set by the Tx
What’s Included
- Futaba R7003SB receiver (FUT05102574-1)
- EXT-VOL external voltage sensor
Secured by Stripe
Futaba R7003SB 3/18ch S-BUS HV Receiver Manuals & Guides
Specifications
The R7003SB was primarily developed for models using Futaba S.Bus system such as helicopters/drones but it equally suitable for fixed wing models using this system, or other models using only 3 channels. This tiny full range FASSTest receiver weighs in at only 7.2g and has a moulded plastic case for added durability. The S.Bus system allows for a simpler setup on complex/perfiormance models and has full support for S-Bus and S-Bus2 servos. The R7008SB is high voltage capable, meaning it can take power from sources such as 2S li-po batteries (3.7 - 7.4V supply).
As supplied the R7003SB receiver includes integral sensors for receiver voltage, signal strength and external voltage, with further separate sensors available seperatly.
• FASSTest (18ch & 12ch)
• Telemetry with built-in voltage sensor
• EXT-VOL external voltage sensor included (0.70V)
• PWM allows 3 channels
• S.BUS allows 18 channels
• Small and lightweight
• Moulded plastic case
• Dual antenna diversity (coaxial antenna)
• Full range operation
| Specifications | |
|---|---|
| Fail Safe | Battery F/S voltage is set by the Tx |
| Modulation | FASSTest (18ch & 12ch) |
| S.BUS | S.BUS & S.BUS2 |
| Telemetry | Yes (EXT-VOL sensor included) |
| Weight | 7.2g (0.25oz) |
| Channels | 3 PWM (18 using S-Bus) |
| Dimensions | 37.4 x 22.5 x 9.3mm (0.89 x 1.47 x 0.37") |
| Voltage | 3.7 - 7.4v (3.7 - 8.4V Range) |
| Aerial Length | 140mm (20mm Tips) |
Key Info:
- Brand: Futaba
- Part No: FUT05102574-1
- Barcode: 4513886024467
- Frequency: 2.4Ghz
- Channels: 9+ Channel
