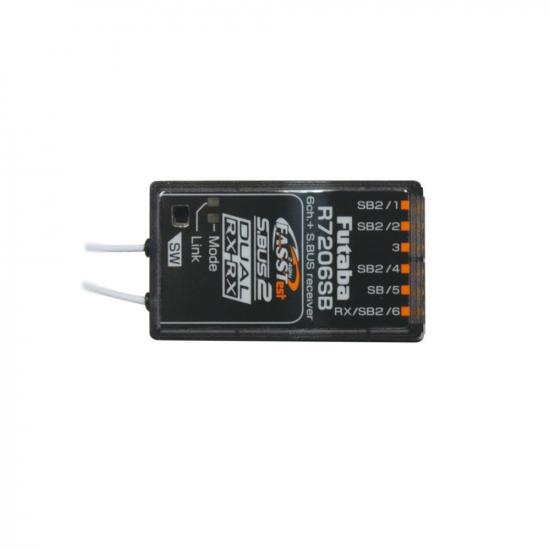

Futaba R7206SB 6ch Air Receiver (18ch S.Bus) FASSTest

The Futaba R7206SB is a FASSTest 6-channel air receiver with S.Bus/S.Bus2 port, designed for aircraft models and supplied under part number FUT05102739-3. Compact and lightweight, it offers a wide operating voltage range and a Dual Link bi-directional communication system, with S.Bus support for up to 18 channels as stated in the product name.

Key Features

• FASSTest Dual Link bi-directional communication system for aircraft models
• 6 channels with S.Bus/S.Bus2 port (supports up to 18 channels via S.Bus)
• Input/voltage range: 3.5–8.4 V
• Power requirements: DC 3.7–7.4 V
• Compact and lightweight receiver for streamlined installations
• Colour: Black
• Age recommendation: 14+

Technical Specifications

• Dimensions (approx): 38 mm (L) x 23 mm (W) x 12 mm (H)
• Size (manufacturer reference): 22.5 x 38.3 x 12.2 mm (0.89 x 1.5 x 0.48 in)
• Weight: approx 8.8 g (0.31 oz)
• Operating voltage range: DC 3.5–8.4 V
• Power requirements: DC 3.7–7.4 V
• Channels: 6

What's In The Box

• 1x R7206SB Receiver

Important Technical Note

• The servo and S.Bus connections are oriented with the Ground pin up and the signal wire toward the bottom of the receiver.
