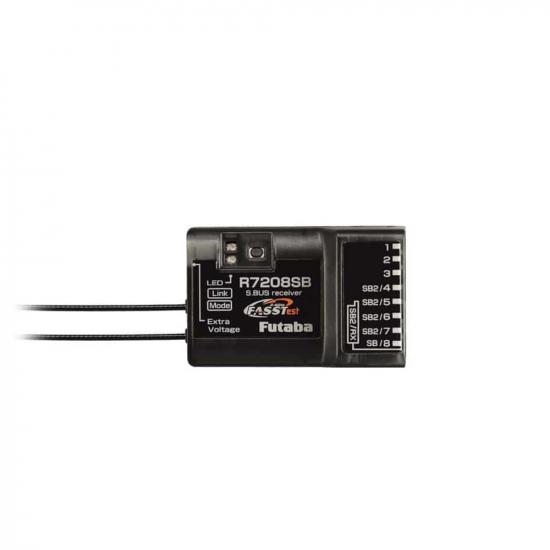

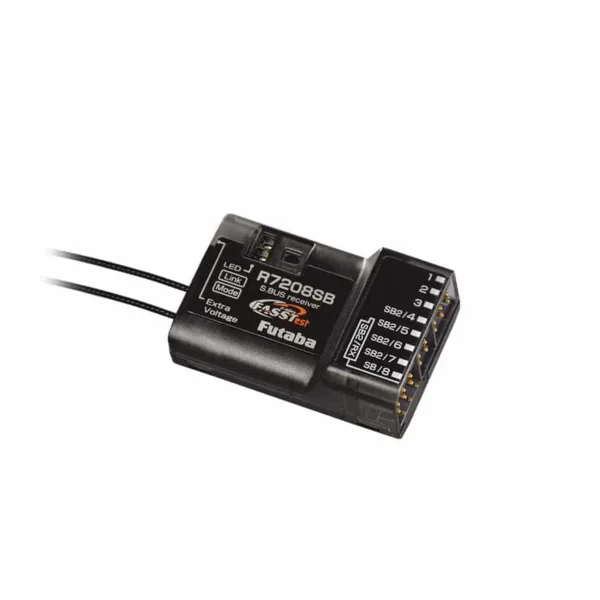

Futaba R7208SB FASSTest 8ch Air Receiver

The Futaba R7208SB 8-channel Air Receiver (18-channel S.Bus) FASSTest is a versatile aircraft receiver designed for models requiring both conventional PWM outputs and S.Bus/S.Bus2 connectivity. Featuring Futaba’s FASSTest bi-directional communication system, it offers flexible channel assignment via S.Bus while retaining eight standard servo outputs. Part number FUT05102713-3.

Key Features

• FASSTest bi-directional communication system
• S.Bus / S.Bus2 port for flexible channel assignment
• Eight conventional PWM channels
• 18-channel operation via S.Bus
• Input/operating voltage range: 3.5–8.4 V
• Power requirements: 3.7–7.4 V
• Extra voltage port rated 0–70 V DC
• Battery F/S voltage (FASSTest): set via the transmitter
• For aircraft models
• Colour: Black
• Age recommendation: 14+

Technical Specifications

• Channels: 8 PWM, 18 via S.Bus
• Input voltage (stated): 3.5–8.4 V
• Power requirements (stated): 3.7–7.4 V
• Size (stated): 24.9 x 47.3 x 14.3 mm (0.98 x 1.86 x 0.56 in)
• Product dimensions (tech specs): 39 x 25 x 14 mm (L x W x H)
• Weight (stated): 12.0 g (0.42 oz)
• Weight (tech specs): 9.9 g (0.35 oz)
• Shipping weight: 0.06 kg (0.12 lb)

Important Note

• Never use dry batteries for the power supply of the R7208SB as they may cause difficulties.
