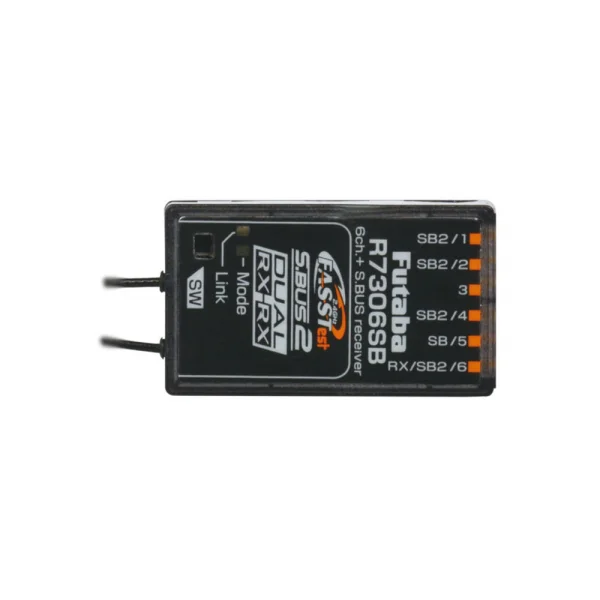

Futaba R7306SB 6-channel Air Receiver (18-channel S.Bus) FASSTest - High Gain Aerials
Brand: Futaba
Part No: FUT05102740-3
In Stock: Usually ships same day
The Futaba R7306SB is a compact, high-performance 6‑channel air receiver featuring the FASSTest‑2.4GHz system with 12/18‑channel modes via S.BUS/S.BUS2. It provides bi‑directional telemetry, dual‑antenna diversity with high‑gain aerials, and the option to use the Dual RX Link system for enhanced redundancy. Offering both conventional PWM outputs (CH1–6) and S.BUS2, it suits installations where reliable signal performance and flexible wiring are essential. Part number FUT05102740-3.
With a lightweight 9.8 g design and a broad operating voltage range, the R7306SB is well suited to space‑conscious airframes. Telemetry capability via S.BUS2 allows the use of a wide range of sensors, while battery failsafe voltage is configured at the transmitter.
Key Features
- FASSTest‑2.4GHz system (18‑channel/12‑channel modes)
- Bi‑directional communication (telemetry via S.BUS2)
- Dual RX Link system option
- S.BUS2 and S.BUS ports
- 6 channels for conventional PWM systems (CH1–6)
- Dual antenna diversity with high‑gain antennas
- Input voltage: 3.5–8.4 V
What's In The Box
- 1x R7306 6‑Channel Receiver
Technical Specifications
- Size: 38.3 x 22.5 x 12.2 mm (1.50 x 0.88 x 0.48 in)
- Weight: 9.8 g / 0.35 oz
- Power requirement: 3.7–7.4 V
- Voltage range: 3.5–8.4 V
- Battery F/S voltage: Set via transmitter
- Product length: 38 mm / 1.51 in
- Product width: 23 mm / 0.89 in
- Product height: 12 mm / 0.48 in
- Shipping weight: 0.05 kg / 0.12 lb
- Channels: 6
- Colour: Black
- Age recommendation: 14+
Secured by Stripe
The Futaba R7306SB FASSTest-2.4GHz compatible receiver features bi-directional communication with a Futaba FASSTest transmitter using the S-BUS port. Using the S.BUS2 port an impressive array of telemetry sensors may be utilised. It also includes both standard PWM output ports (CH1-6) and S.BUS2 output ports. The R7306SB can also be switched to the Dual RX Link system – this system can ensure safety by mounting two FASSTest receivers in the same aircraft.
- FASSTest 2.4GHz system (18-channel/12-channel modes)
- Bi-Directional communication system
- Dual RX link system
- S.BUS2 and S.BUS port
- 6-Channels for conventional PWM systems
- Dual antenna diversity (High Gain Antenna)
Size:
38.3 x 22.5 x 12.2 mm
1.50 x 0.88 x 0.48 in
Weight:
9.8 g
0.34 oz
Power Requirement:
3.7 - 7.4V
Voltage Range:
3.5 - 8.4V
Battery F/S Voltage:
Set up with the transmitter
Futaba R7306SB 6-channel Air Receiver (18-channel S.Bus) FASSTest - High Gain Aerials Key Features:
- Input Voltage: 3.5-8.4 V
- FASSTest-2.4GHz system (18ch/12ch modes)
- Bi-directional communication system
- Dual RX link system
- S.BUS2 and S.BUS port
- 6-channels for conventional PWM systems
- Dual antenna diversity (High Gain Antenna)
What's in the Box:
- 1x R7306 6-Channel Receiver
Futaba R7306SB 6-channel Air Receiver (18-channel S.Bus) FASSTest - High Gain Aerials Tech Specs:
- Weight: 9.8g / 0.35oz
- Shipping Weight: 0.05kg / 0.12lbs
- Product Height: 12mm / 0.48in
- Product Width: 23mm / 0.89in
- Product Length: 38mm / 1.51in
- Age Recommendation: 14+
- Channels: 6
- Colour: Black
Key Info:
- Brand: Futaba
- Part No: FUT05102740-3
- Barcode: 4513886038846
- Frequency: 2.4Ghz
- Channels: 6 Channel
