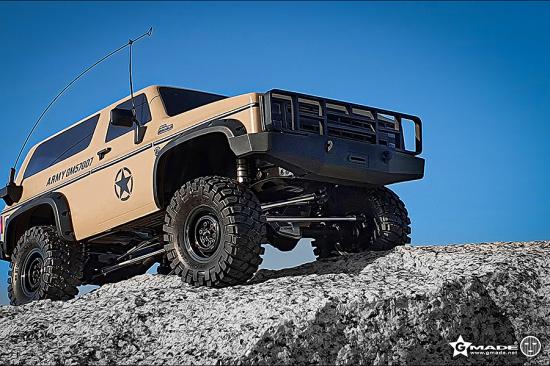

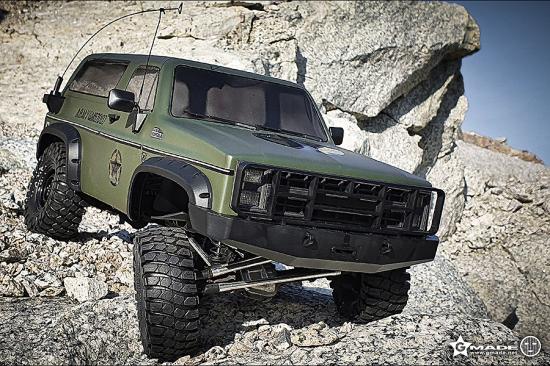

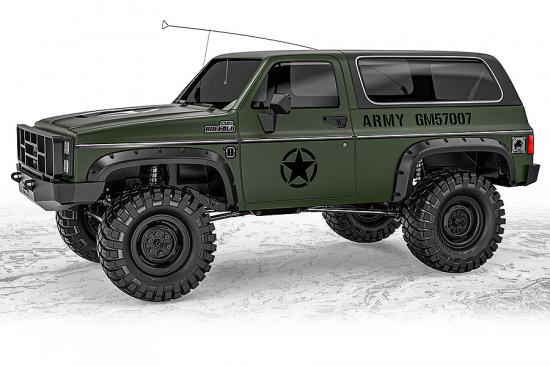

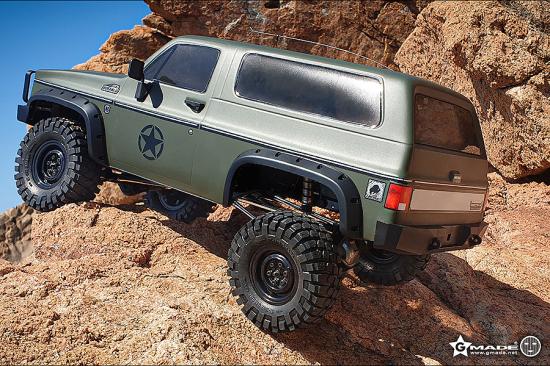

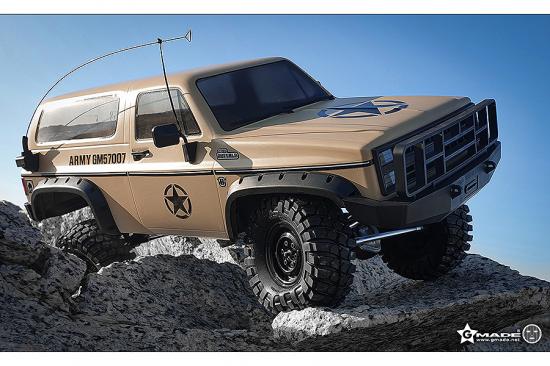

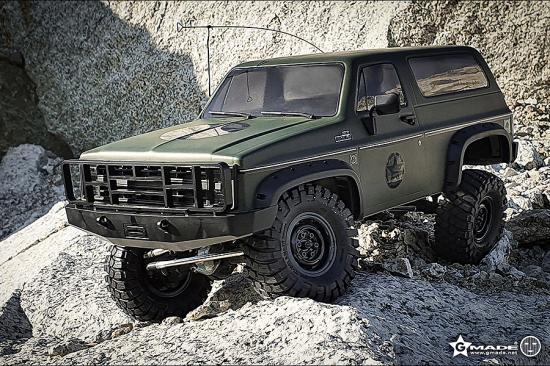

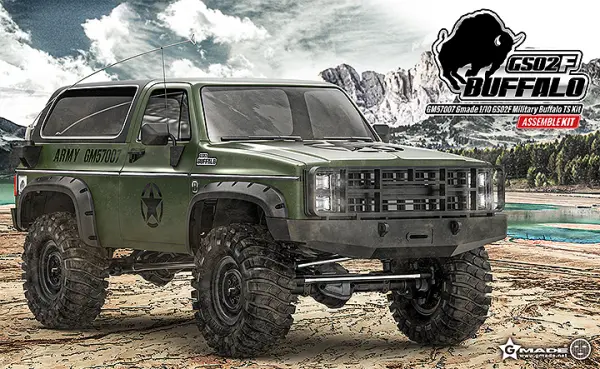

GMade GS02F Buffalo TS Kit (Military)

GMADE 1/10 GS02F BUFFALO TS KIT (Civilian)

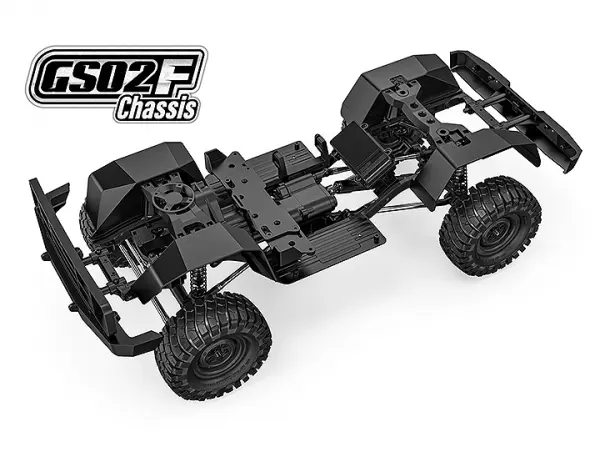

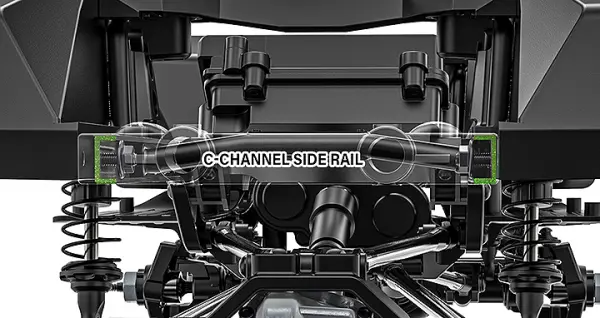

GS02F frame is designed to look as a chassis of a real car frame and the material of the frame is made of high strength steel, C-channel side rail and is with hex wrench bolted with cross members, which make it resistant to twisting or wraping. Also, steel parts are black powder coated finish to prevent rust.

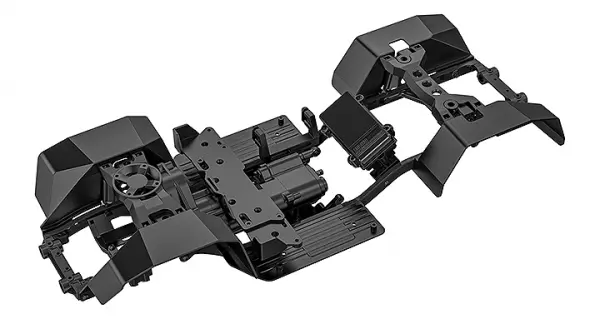

Inner Fenders

The inner fender is directly fixed to the frame to reduce the flex and bending of the chassis and parts, it also reduces external objects to entering to the chassis during driving.

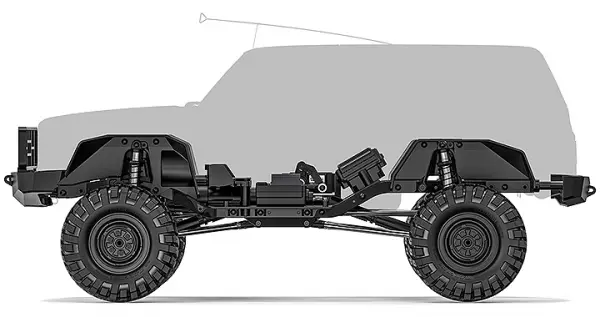

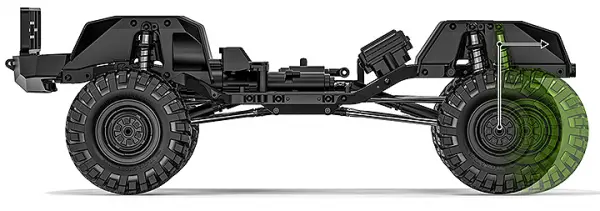

Adjustable Wheelbase

GS02F chassis allows three type of easy adjustment of wheelbase convert kit to use any type of 313 and 324mm custom bodies. (optional link kits are sold separately)

Front Weight Balance

GS02F's weight balance designed to be placed on the forward of the chassis.
This will increase the tire tracktion to the front wheel to provide better crawling on a high tilt angle rocks and better driving performance when hill climbing and this will help minimizing the vehicle's rolling over when climbing.

Front Mounted Motor

Able to use 540 or 550 size motor with cooling fan with option.
The motor is designed to mounted in front of the chassis, so it can increases more tire traction to the front side.

Multiple Battery Locations

GS02F can use all sizes of lipo batteries and Ni-MH batteries, and can be freely locate the battery position purpose of uses

Chassis Mounted Servo System With Panhard Bar

GS02F steering system has a steering servo on the frame just like a 1:1 real car.
It is designed to make it as closed to the zero bump steer so bump steer movement does not appear by front wheel suspension movements, so we ended up with maximizing the steering performance of the vehicle.
In addition, the Panhard-bar is designed to avoid interference with nearby parts, so that the front suspension and shocks can move freely without any loss.

Drive Train

Drivelines

The drive lines of the front and rear axles are arranged in straight-line to reduce the fatigue stress of the universal shaft and reduce the loss of driving power by providing efficient driving lines.

Transmission

The GS02F transmission is designed to look as a real 1:1 scale vehicle, and provides the best performance according to the driving situation.

Overdrive

Overdrive means, front and rear wheels rotate at the different speeds.
The GS02F transmission is designed to rotate the front wheel faster than the rear wheel.

2-Speed HI/LO Transmission

The 1st gear is for hardcore rock crawling and the 2nd gear is for hill climb or high-speed driving.

Torque Twist Reduce Transmission

GS02F transmission is designed to drive in a stable position without pulling the balance of power transmitted to the axle.
The front and rear universal shafts based on the transmitter each rotates clockwise and counterclockwise, this compensates for the forces acting on the opposite rotational forces due to the action(torque) and reaction(reverse torque) because of that this vehicle can run in a super stable conditions

Easy Adjust Motor Mount

You can easily replace and install the motor pinion gear to changing the gear ratio.

GA44 Axle

GA44 axle is designed with the hardcore rock crawler in mind.
Axles are made of high-strength meterials, and it will look and perform optimum off-road perfermance as real 1:1 vehicle when 4-Link suspensions added.
The GA44 axle housing is a durable one-piece type.
The angle of the differential cover is designed to reduce the risk of damage due to frontal impact and is therefore very suitable for off-road driving.

Kingpin Angle

Keeping the scrub radius to a minimum to let your steering servo work at it's full potential and increases the steering efficiency.

Zero Ackerman Steering

The GA44 axle is using Zero-ackerman steering system with CVA to ensure maximum performance with a short turn radius and smooth motion even on rough off-road terrain.

Suspension

SD Scaler Shock Absorber

SD Scaler Shock is a Coil-over styled oil shock absorber optimized for the scale trucks.
The oil filled inside the shock minimizes splash when the vehicle is driven, and provides a high-durability aluminum shock body with 3.5mm heavy duty shock shafts are added, these will help you to drive roughly on rough surfaces.
Beginners also can easily assemble this shock and change setups, and the adjustable nut makes it easy to adjust the ride-hight so you can quickly change your car setup even when driving condition changes.

Wheel & Tires

Exterior

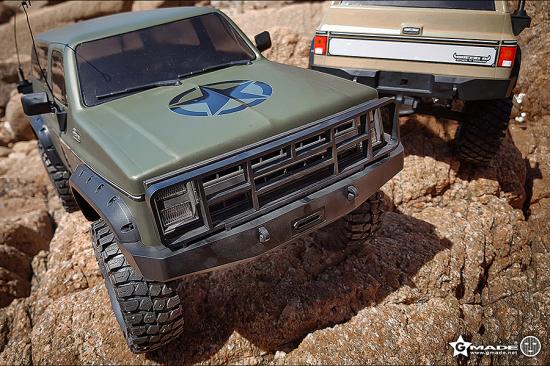

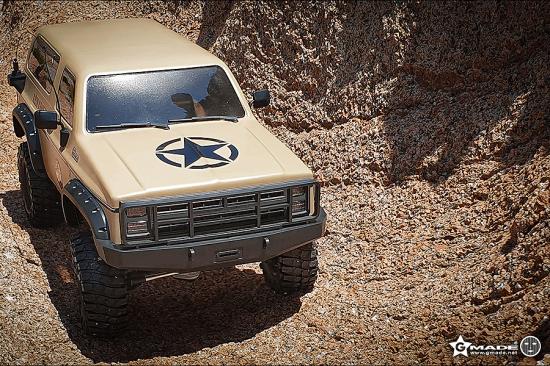

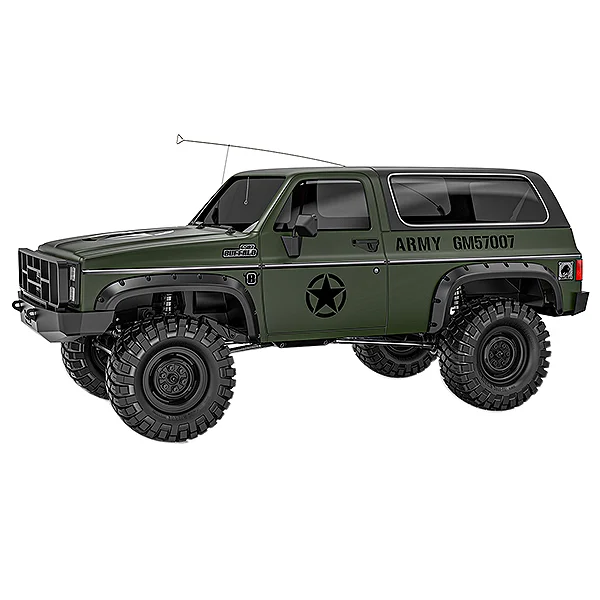

BUFFALO Lexan Body

The buffalo body is a SUV style body made of high quality 1.5mm lexan with high strength and details.
To add realism details it includes front grille, light bucket, side mirrors, wipers, door handles, overfenders and a roof rack & LED light bar so you can tune into a realistic off-road vehicle to matches the concept of off-road adventure.
The accessory parts are made of high-strength plastic so they are resistant from the highly impacts, and include decals with realistic details.

Stealth Body Mount

This mount allows the body to be secured to the chassis without drilling unnecessary holes in the body, increase the realistic scale of the vehicle.

Specification:

• Width : 240mm
• Height : 269mm
• Height(with out roof rack) : 246mm
• Length : 540mm
• Wheel base : 313mm
• Ground clearance : 77mm
• Weight (no electronics) : 2.22kg

Includes:

• Gmade GS02F Buffalo 1/10 TS Crawler Car Kit (1 set)

Requires:

• Radio System
• Servo
• ESC
• Motor
• Battery
• Receiver

• Brand: GMade
• Part No: GM57007
• Barcode: 8809631992911
• Scale: 1:10
• Power Source: Electric - No Motor
• Surface Type: Off Road
• Vehicle Type: Rock Crawler
• Build Level: Unassembled (Kit)
