Hitec HLS12-100380-6V 100mm Stroke 380:1 Linear Servo 12kg/1.2mm/s 4.0V - 8.4V
Brand: Hitec
Part No: 2212207
Shadow Stock: Usually ships next day
The Hitec HLS12-100380-6V linear servo delivers precise, powerful positioning with a 100mm stroke and a 380:1 gear ratio. Designed for applications that need maximum force over a short throw, it suits robotics, animatronics and industrial mechanisms where repeatable linear motion is essential. Operating from 4.0V to 8.4V and driven by a standard PWM command, it combines a compact footprint with dependable performance.
A programmable 32-bit digital amplifier enables stroke and speed tuning, while power-off position stability aids safety and repeatability. The actuator provides full excursion using a 1050–1950µs input range, helping achieve complete travel without extended transmitter rates. This offers suggested compatibility with standard PWM radio systems and controllers. With a 5mm lead screw, metal gearing and flange bearing support, the HLS12-100380-6V balances durability with smooth, controlled movement. Part number 2212207.
Key Features
- Command protocol: PWM
- Stroke: 100mm
- Gear ratio: 380:1
- Lead screw: 5mm
- Operating voltage: 4.0V–8.4V (tested at 6.0V)
- Motor type: Cored metal brush
- Servo amplifier: 32-bit programmable digital
- Programmable stroke and speed settings
- Power-off position stability
- Full excursion with 1050–1950µs input range
Performance Highlights
- No-load speed: 3.3 mm/s
- No-load current: 100 mA
- Maximum efficiency point: Load 6.5 kg / 64 N, Speed 2.5 mm/s, Current 200 mA
- Pear Power Point: Load 10.0 kg / 98 N, Speed 1.9 mm/s, Current 300 mA
- Max force (lifted): 12.0 kg / 118 N, Speed 1.2 mm/s, Current 400 mA
- Stall force: 5.0 kgf (49.03 N)
- Stall current: 500 mA
- Max static force: 20.39 kgf (200 N)
- Repeatability: ±0.5 mm
- Max side load (extended): 1.53 kgf (15 N)
Construction & Dimensions

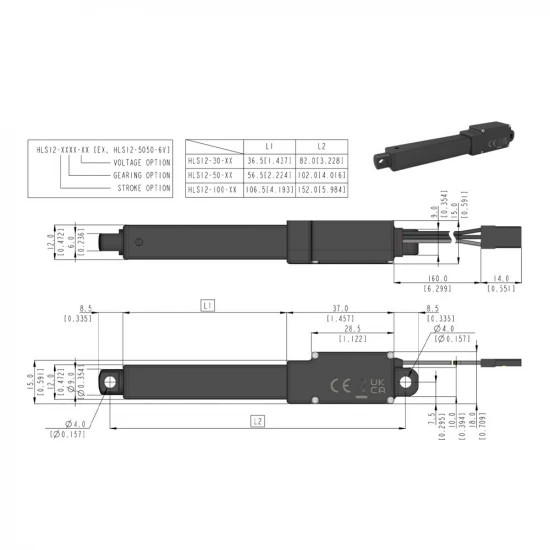

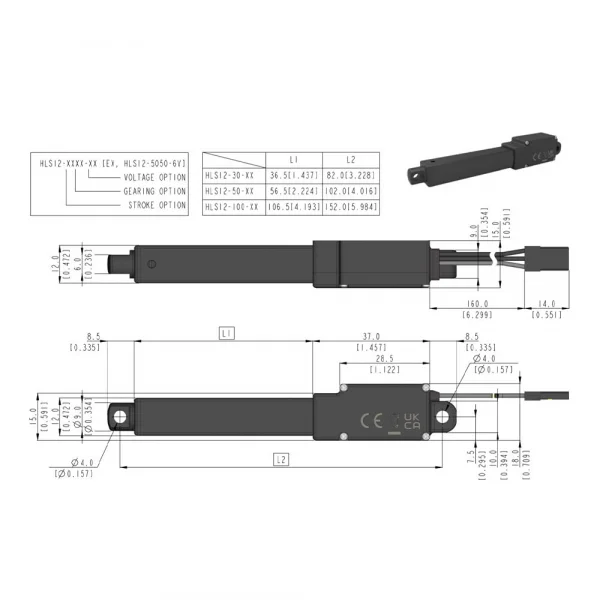

- Outline dimensions: 152.0 × 15.0 × 18.0 mm
- Weight: 56 g
- Case material: Engineering plastic & aluminium pipe
- Gear material: 4 metal gears
- Bearing type: Flange bearing
- IP rating: IP4X
- Connector wire length: 160 mm; 24 AWG
- Colour: Black
- Servo size: 100mm travel
- Application: Industrial
For projects requiring compact linear motion with fine control and robust force output, the Hitec HLS12-100380-6V provides a versatile solution with suggested compatibility across standard PWM-based control systems.
Secured by Stripe
With 100mm of travel and a 380:1 gear ratio, the HLS12-100380 is ideal for short stroke applications requiring maximum power.
Controlled using a traditional PWM servo signal, Hitec linear actuators provide optimised motion control for precise and powerful positioning. Whether your application demands a low-profile form factor, or extended linear throws, we have an actuator to suit your needs. Our linear actuators are popular for a myriad of uses including robotics and animatronics, as well as industrial mechanical applications. Programmable stroke and speed settings, power-off position stability, and a variety of mounting options, provide additional functionality and flexibility. Additionally, Hitec linear actuators provide full excursion using a 1050 - 1950µs input range. This feature allows fully compatible use with all radios, by eliminating the requirement for programming extended rates to achieve full motion.
Hitec HLS12-100380-6V 100mm Stroke 380:1 Linear Servo 12kg/1.2mm/s 4.0V - 8.4V Key Features:
- Command Protocol: PWM
- Lead Screw: 5mm
- Motor Type: Cored Metal Brush
- Operating Voltage (Volts DC): 4.0V ~ 8.4V
- Testing Voltage: 6.0V
- Gear Ratio: 380:1
- No Load Speed: 3.3mm/s
- No Load Current: 100mA
- Maximum Efficiency Point: Load (kg / N): 6.5 / 64 - Speed (mm/s): 2.5 - Current (mA): 200
- Pear Power Point: Load (kg / N): 10.0 / 98 - Speed (mm/s): - 1.9Current (mA):300
- Max Force (Lifted): Load (kg /N): 12.0 / 118 - Speed (mm/s): 1.2 - Current (mA): 400
- Stall Force: 5.0kgf (49.03N)
- Stall Current: 500mA
- Max Static Force: 20.39kgf (200N) (above)
- Stroke SPEC: 100mm
- Repeatability: ±0.5mm
- Max Side Load (Extended): 1.53kgf (15N)
- Outline Dimensions: 152.0 x 15.0 x 18.0mm (5.98 x 0.59 x 0.71 in.)
- Weight: 56g (1.975oz)
- Connector Wire Length: 160mm (6.29 in.)
- Connector Wire Gauge: 24AWG
- Bearing Type: Flange bearing
- Case Material: Engineering Plastic & Aluminium Pipe
- Gear Material: 4 Metal Gears
- IP Rating: IP4X
- Servo Amplifier Type: 32bit programmable Digital
Hitec HLS12-100380-6V 100mm Stroke 380:1 Linear Servo 12kg/1.2mm/s 4.0V - 8.4V Tech Specs:
- Weight: 56g / 1.97oz
- Shipping Weight: 0.12kg / 0.26lbs
- Product Height: 18mm / 0.71in
- Product Width: 15mm / 0.59in
- Product Length: 152mm / 5.98in
- Application: Industrial
- Servo Size: Linear
- Age Recommendation: 14+
- Colour: Black
- Material: Array
Key Info:
- Brand: Hitec
- Part No: 2212207
- Barcode: 0669962410274
