Hitec HLS12-10050-6V 100mm Stroke 50:1 Linear Servo 2.2kg/ 6.7mm/s 4.0V - 8.4V

Hitec HLS12-10050-6V 100mm Stroke 50:1 Linear Servo 2.2kg/ 6.7mm/s 4.0V - 8.4V

Brand: Hitec

Part No: 2212198

£98.99 ~~RRP £109.99~~

In Stock: Usually ships same day

Collect Instore

Request Price Match Ask a Question Write a Review

The Hitec HLS12-10050-6V linear actuator (part number 2212198) delivers precise, high-speed 100mm travel with a robust 50:1 gear ratio. Controlled via standard PWM, it offers programmable stroke and speed, power-off position stability, and flexible mounting options. A 1050–1950µs input range provides full excursion with typical radio gear, removing the need to set extended endpoints. Ideal for robotics, animatronics and industrial mechanisms, this Hitec linear servo balances speed, force and reliability in a compact package.

Key Features

Command protocol: PWM with full excursion on 1050–1950µs input range
100mm stroke for longer-throw applications
50:1 gearing for a strong blend of speed and force
Programmable stroke and speed settings
Power-off position stability
32-bit programmable digital amplifier
Flange bearing support and 4 metal gears
Engineering plastic case with aluminium pipe
IP4X rating

Technical Specifications

Operating voltage: 4.0V – 8.4V (tested at 6.0V)
Lead screw: 5mm
Motor type: Cored metal brush
No-load speed: 25.0 mm/s
No-load current: 100 mA
Maximum efficiency point: 1.0 kg (10 N) at 19.0 mm/s, 200 mA
Power point: 1.7 kg (17 N) at 14.0 mm/s, 300 mA
Max lifted force: 2.2 kg (22 N) at 6.7 mm/s, 400 mA
Stall force: 5.0 kgf (49.03 N); stall current: 500 mA
Max static force: 20.39 kgf (200 N)
Repeatability: ±0.5 mm
Max side load (extended): 1.53 kgf (15 N)
Connector: 160 mm lead, 24 AWG

Typical Uses

Robotics motion control
Animatronics mechanisms
Industrial mechanical actuation

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

With 100mm of travel and a 50:1 gear ratio, the HLS12-10050 is ideal for longer stroke applications requiring the fastest transit speeds.
Controlled using a traditional PWM servo signal, Hitec linear actuators provide optimised motion control for precise and powerful positioning. Whether your application demands a low-profile form factor, or extended linear throws, we have an actuator to suit your needs. Our linear actuators are popular for a myriad of uses including robotics and animatronics, as well as industrial mechanical applications. Programmable stroke and speed settings, power-off position stability, and a variety of mounting options, provide additional functionality and flexibility. Additionally, Hitec linear actuators provide full excursion using a 1050 - 1950µs input range. This feature allows fully compatible use with all radios, by eliminating the requirement for programming extended rates to achieve full motion.

Hitec HLS12-10050-6V 100mm Stroke 50:1 Linear Servo 2.2kg/ 6.7mm/s 4.0V - 8.4V Key Features:

Command Protocol: PWM
Lead Screw: 5mm
Motor Type: Cored Metal Brush
Operating Voltage (Volts DC): 4.0V ~ 8.4V
Testing Voltage: 6.0V
Gear Ratio: 50:1
No Load Speed: 25.0mm/s
No Load Current: 100mA
Maximum Efficiency Point: Load (kg / N): 1.0 / 10 - Speed (mm/s): 19.0 - Current (mA): 200
Pear Power Point: Load (kg / N): 1.7 / 17 - Speed (mm/s): 14.0 - Current (mA): 300
Max Force (Lifted): Load (kg /N): 2.2 / 22 - Speed (mm/s): 6.7 - Current (mA): 400
Stall Force: 5.0kgf (49.03N)
Stall Current: 500mA
Max Static Force: 20.39kgf (200N) (above)
Stroke SPEC: 100mm
Repeatability: ±0.5mm
Max Side Load (Extended): 1.53kgf (15N)

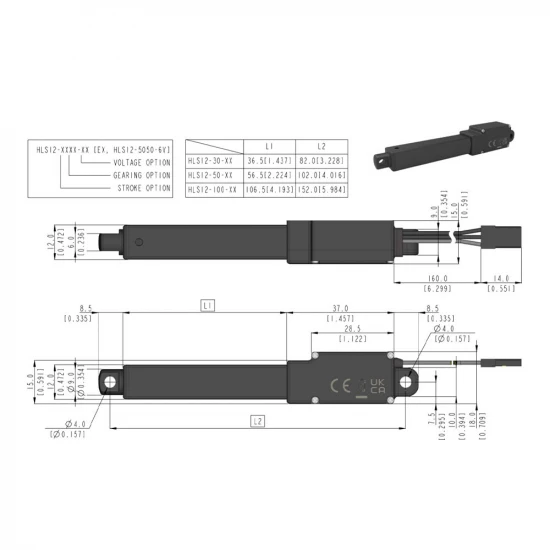

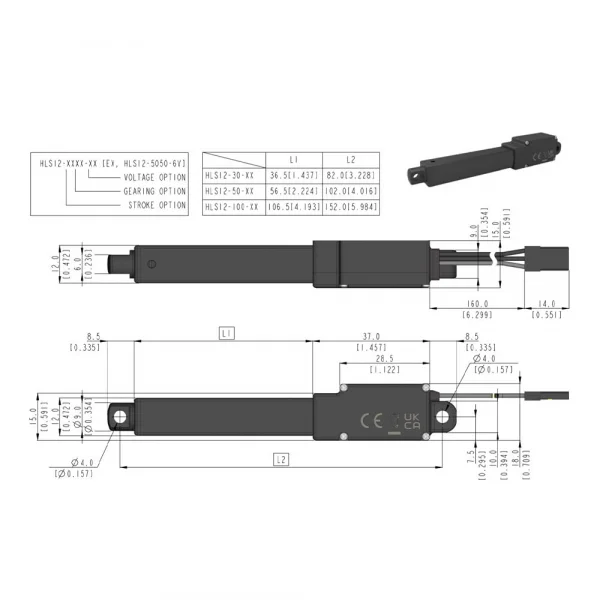

Outline Dimensions: 152.0 x 15.0 x 18.0mm (5.98 x 0.59 x 0.71 in.)
Weight: 56g (1.975oz)
Connector Wire Length: 160mm (6.29 in.)
Connector Wire Gauge: 24AWG
Bearing Type: Flange bearing
Case Material: Engineering Plastic & Aluminium Pipe
Gear Material: 4 Metal Gears
IP Rating: IP4X
Servo Amplifier Type: 32bit programmable Digital

Hitec HLS12-10050-6V 100mm Stroke 50:1 Linear Servo 2.2kg/ 6.7mm/s 4.0V - 8.4V Tech Specs:

Weight: 56g / 1.97oz
Shipping Weight: 0.12kg / 0.26lbs
Product Height: 18mm / 0.71in
Product Width: 15mm / 0.59in
Product Length: 152mm / 4.02in

Application: Industrial
Servo Size: Linear
Age Recommendation: 14+
Colour: Black
Material: Array

Key Info:

Brand: Hitec
Part No: 2212198
Barcode: 0669962410243
