Description

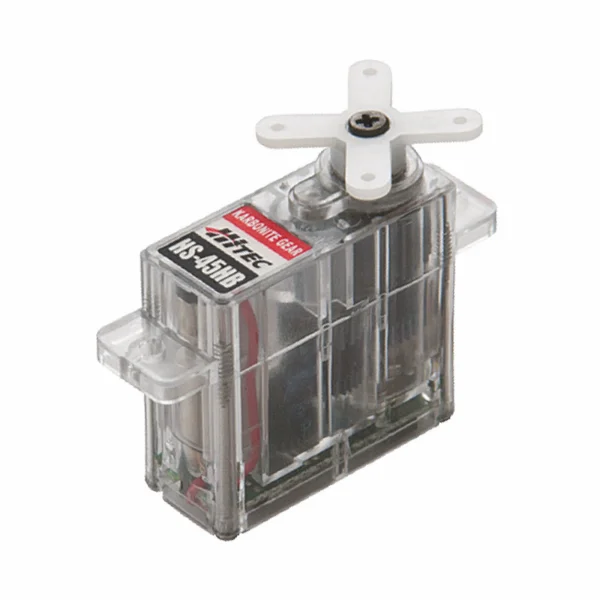

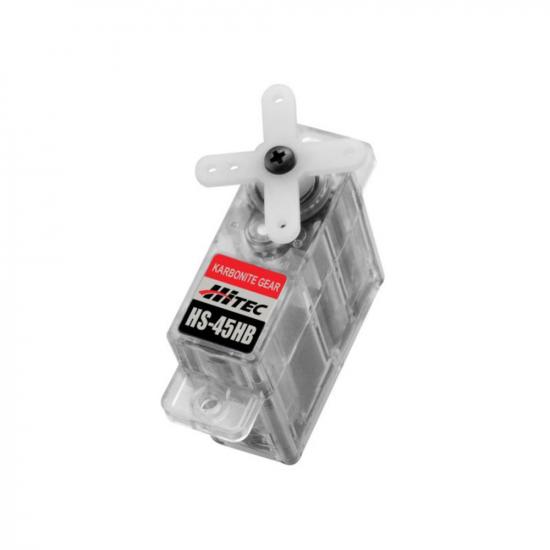

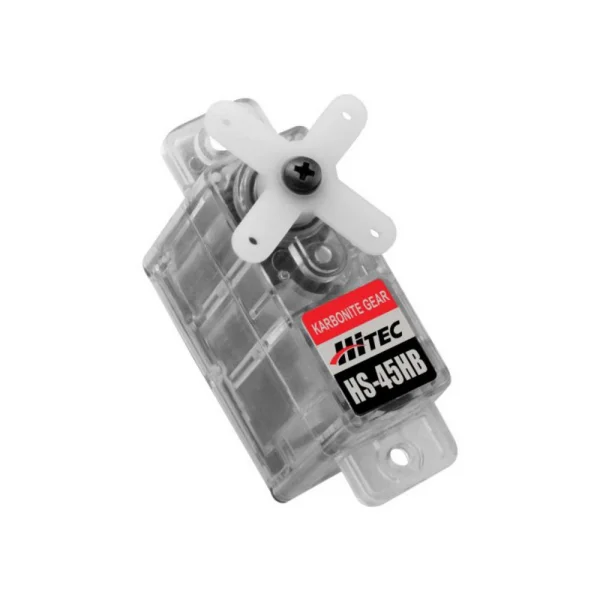

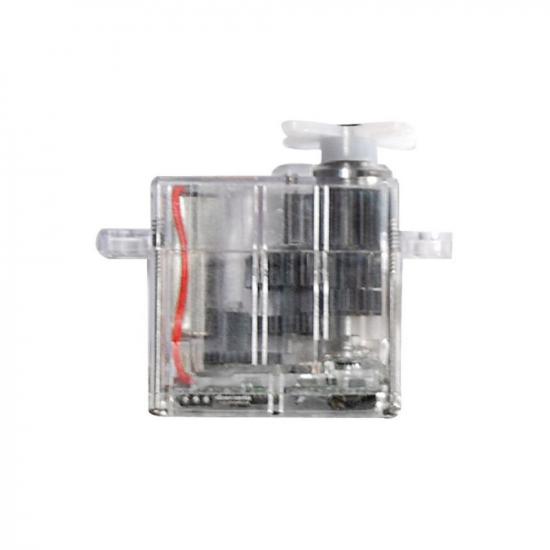

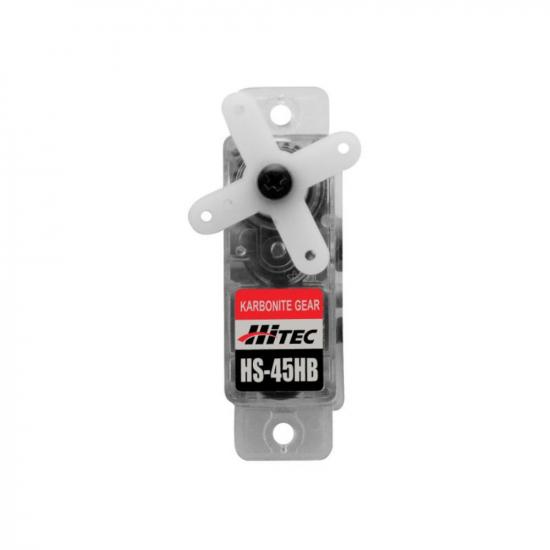

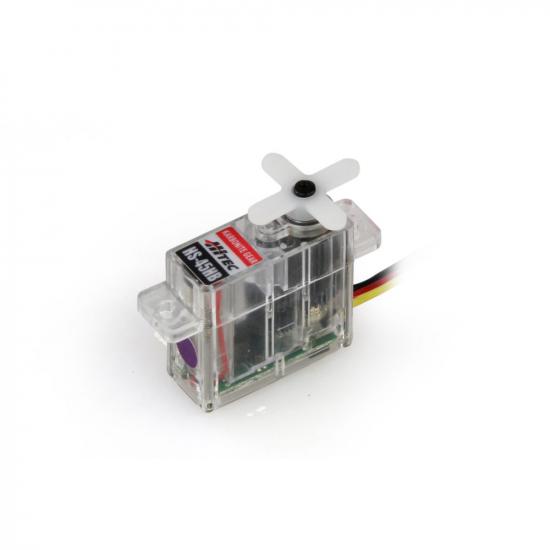

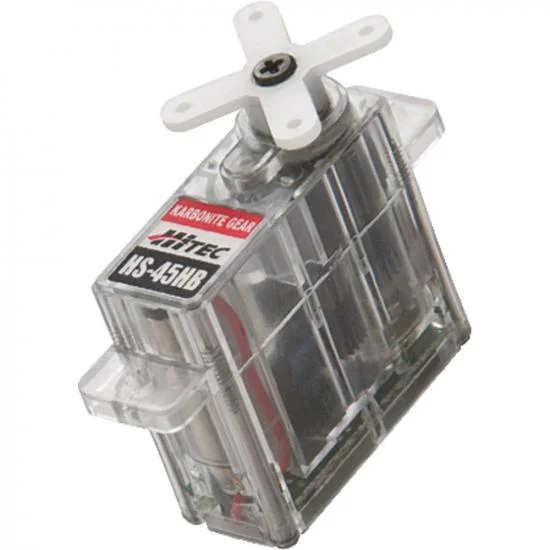

The Hitec HS-45HB Premium Feather micro servo (part number 2212040) combines durable Karbonite gears with a top ball bearing supported output shaft for smooth operation and long service life. Compact and lightweight, it offers dependable performance within a 4.8–6.0 V operating range.
At just 7.94 g and measuring 23.37 x 9.65 x 22.35 mm, the HS-45HB delivers quick transit speeds and reliable torque in a small footprint.
Key Features
- Karbonite gear train for durability
- Top ball bearing supported output shaft
- Lightweight 7.94 g micro servo
- 3‑pole motor and 5 μs dead band width
- Operating voltage range: 4.8–6.0 V
Specifications
- Motor type: 3‑pole
- Bearing type: Top ball bearing
- Speed (4.8 V / 6.0 V): 0.14 / 0.12 s @ 60°
- Torque (kg·cm, 4.8 V / 6.0 V): 1.0 / 1.2
- Torque (oz·in, 4.8 V / 6.0 V): 14 / 17

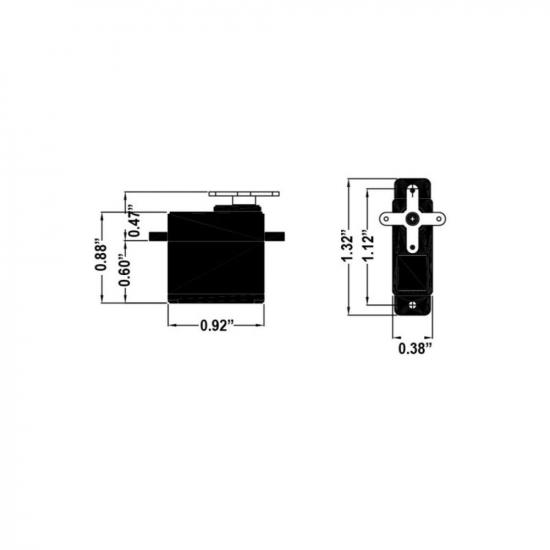

- Dimensions (mm): 23.37 x 9.65 x 22.35
- Dimensions (in): 0.92 x 0.38 x 0.88
- Weight: 7.94 g (0.28 oz)
- Gears: Karbonite
- Control system: +Pulse width control, 1500 μs neutral
- Operating temperature: −20°C to +60°C (−4°F to +140°F)
- Idle current: 8 mA
- Stall current (4.8 V / 6.0 V): 440 mA
- Potentiometer: 2 slider / direct drive
- Lead length: 250 mm (9.84 in), 28 AWG
The HS-45HB blends economy with robust construction, ideal where minimal weight and consistent performance are priorities.
Secure Payments
Secured by Stripe
Specifications
- Motor Type - 3 Pole
- Bearing Type - Top Ball Bearing
- Speed (4.8V/6.0V) - 0.14 / 0.12 sec @ 60 deg.
- Torque kg./cm. (4.8V/6.0V) - 1.0 / 1.2
- Size in Millimetres - 23.37 x 9.65 x 22.35
- Weight grams - 7.94
- Gears - Karbonite
Hitecs HS-45HB offers the economy and durability of our other famous micro servos, but now with a ball bearing supported output shaft and Karbonite gears.
Specifications
| Motor Type: | 3 Pole |
| Bearing Type: | Top Ball Bearing |
| Speed (4.8V/6.0V): | 0.14 / 0.12 sec @ 60 deg. |
| Torque oz./in. (4.8V/6.0V): | 14 / 17 |
| Torque kg./cm. (4.8V/6.0V): | 1.0 / 1.2 |
| Size in Inches: | 0.92 x 0.38 x 0.88 |
| Size in Millimeters: | 23.37 x 9.65 x 22.35 |
| Weight ounces: | 0.28 |
| Weight grams: | 7.94 |
Advanced Servo Specifications
| Control System: | +Pulse Width Control 1500usec Neutral |
| Operating Voltage Range: | 4.8V - 6V |
| Operating Temperature Range: | -20íC to +60íC (-4íF to +140íF) |
| Idle Current: | 8mA |
| No Load Running Current (4.8V/6.0V): | 100mA/60í |
| Stall Current (4.8V/6.0V): | 440mA |
| Dead Band Width: | 5usec |
| Potentiometer Type: | 2 Slider/Direct Drive |
| Connector Wire Length: | 250mm (9.84 in) |
| Connector Wire Gauge: | 28AWG |
Key Info:
- Brand: Hitec
- Part No: 2212040
- Barcode: 669962330459
- Fitment: Option Part
Additional Categories:
Delivery & Returns
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Customer Reviews
No specific product reviews yet, why not write one?Write a Review
All reviews are subject to moderation
Questions & Answers
Real questions from real customers. Why not ask your own?
is the hitec hs 45 hb servo anologue
Trevor Payne / 20th December 2019
I believe so yes
Ben @ Wheelspin Models
