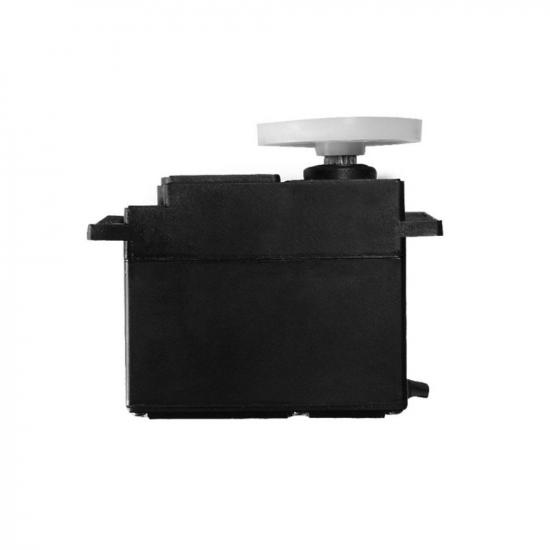

Hitec HS805MG Mega Quarter Scale Metal Gear Servo
Brand: Hitec
Part No: 2214540
£59.84
RRP £62.99
Shadow Stock: Usually ships next day
The Hitec HS805MG Mega Quarter Scale Metal Gear Servo (part no. 2214540) is a heavy-duty, supersized unit built to handle the punishment of large 1/5th scale models. With a big-case design, powerful motor and hardened metal gear train, it delivers dependable control in demanding, large-scale RC applications.
At 6.0V it develops up to 24.7 kg/cm of torque with a transit time of 0.14 s per 60°, supported by dual ball bearings for smooth, consistent output.
Key Features
- Large 8 mm output shaft
- Dual ball bearings
- Heavy-duty metal gear train
- Water- and dust-resistant case
Specifications
- Motor type: 3-pole ferrite
- Bearing type: Dual ball bearing
- Speed (4.8V/6.0V): 0.19 / 0.14 s @ 60°
- Torque (kg/cm, 4.8V/6.0V): 19.8 / 24.7

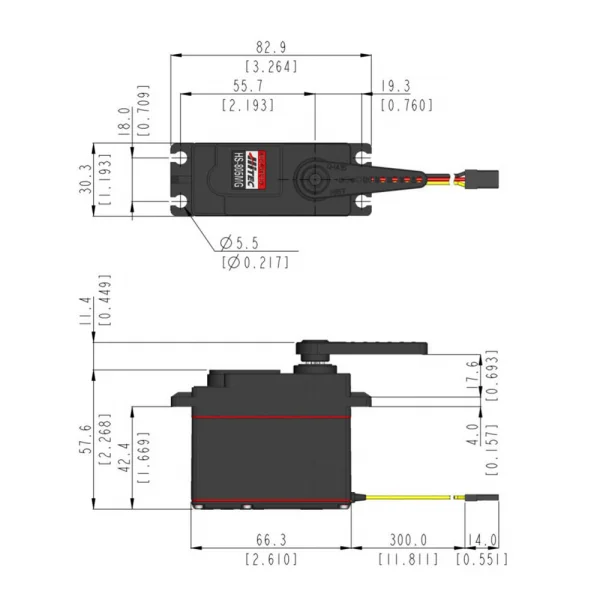

- Size (mm): 65.79 x 29.97 x 57.40
- Weight: 197.03 g
- Gears: Metal
Suggested Compatibility
- Large 1/5th scale RC vehicles and other heavy-duty large-scale applications
Secure Payments
Secured by Stripe
The HS-805MG heavy duty supersized servo was designed to handle the punishment dished out by the latest wave of large 1/5th scale vehicles. With big gears in a big case powered by a big motor this servos was designed to take abuse and keep on going.
Specifications:
- Motor Type - 3 Pole Ferrite
- Bearing Type - Dual Ball Bearing
- Speed (4.8V/6.0V) - 0.19 / 0.14 sec @ 60 deg.
- Torque kg./cm. (4.8V/6.0V) - 19.8 / 24.7
- Size in Millimetres - 65.79 x 29.97 x 57.40
- Weight grams - 197.03
- Gears - Metal
Features:
- Large 8mm Output shaft
- Dual Ball Bearings
- Heavy Duty Metal Gear Train
- Water and Dust Resistant Case
| Motor Type: | 3 Pole Ferrite |
| Bearing Type: | Dual Ball Bearing |
| Speed (4.8V/6.0V): | 0.19 / 0.14 |
| Torque oz./in. (4.8V/6.0V): | 275 / 343 |
| Torque kg./cm. (4.8V/6.0V): | 19.8 / 24.7 |
| Size in Inches: | 2.59 x 1.18 x 2.26 |
| Size in Millimeters: | 65.79 x 29.97 x 57.4 |
| Weight ounces: | 6.95 |
| Weight grams: | 197.03 |
Key Info:
- Brand: Hitec
- Part No: 2214540
- Barcode: 669962328050
- Max Voltage: 6v
- Gear Material: Metal
