Description

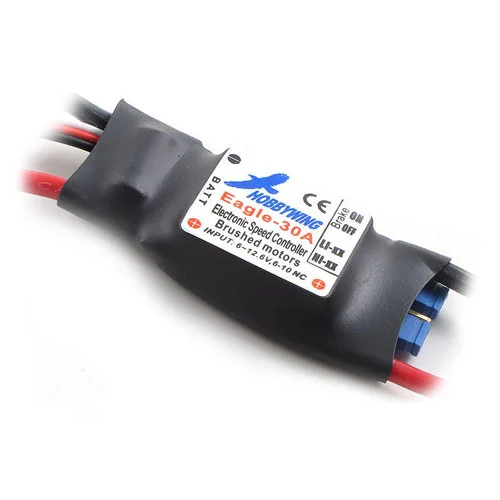

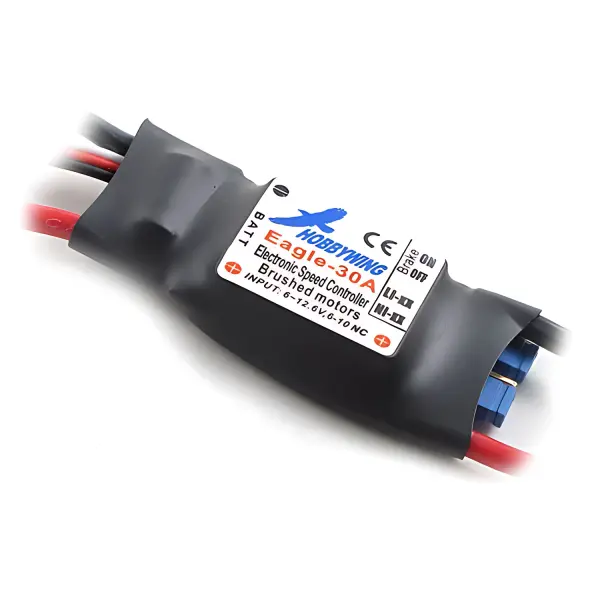

The Hobbywing Eagle 30A ESC (HW80050010) is a brushed speed controller designed for dependable, fuss-free operation. It supports 2–3 cell lithium packs or 4–10 cell NiCd/NiMH batteries and includes a linear 5V/1A BEC to power onboard electronics. Built-in protections and a compact 45 × 21 × 8 mm footprint make it a practical choice for a wide range of RC projects.
Features
- Safety arming feature
- Low-voltage cut-off to help prolong battery life
- Over-heat protection to help extend ESC life
- Throttle signal loss protection for safe operation
Specifications
- Motor Type: Brushed
- Continuous Current: 30A
- Burst Current: 40A (up to 10 seconds)
- Input Voltage: 2–3 cell lithium or 4–10 cell NiCd/NiMH
- BEC: 5V/1A (linear)
- PWM Frequency: 2 kHz
- Size: 45 × 21 × 8 mm
- Weight: 21 g
Secure Payments
Secured by Stripe
Hobbywing Eagle 30A ESC Manuals & Guides
How-To Guides & Articles
Specifications
HOBBYWING EAGLE 30A SPEED CONTROLLER
Key Info:
Compatible with lithium battery and nickel battery.
HobbyWing Eagle ESC Features:
- Safety Arming Feature
- Low voltage cut-off protection to prolong the battery life
- Over-heat protection to prolong the ESC life
- Throttle signal loss protection for safe flight
Spec Check:
- Motor: Brushed
- Output: Continuous 30A, Burst 40A up to 10 seconds
- Input Voltage: 2-3 cells lithium battery or 4-10 cells NiCd/NiMh battery
- BEC: 1A/5V (Linear mode).
- PWM Frequency: 2 kHz
- Size: 45mm (L) * 21mm (W) * 8mm (H)
- Weight: 21g
Key Info:
- Brand: Hobbywing
- Part No: HW80050010
- Barcode: 6938994402415
