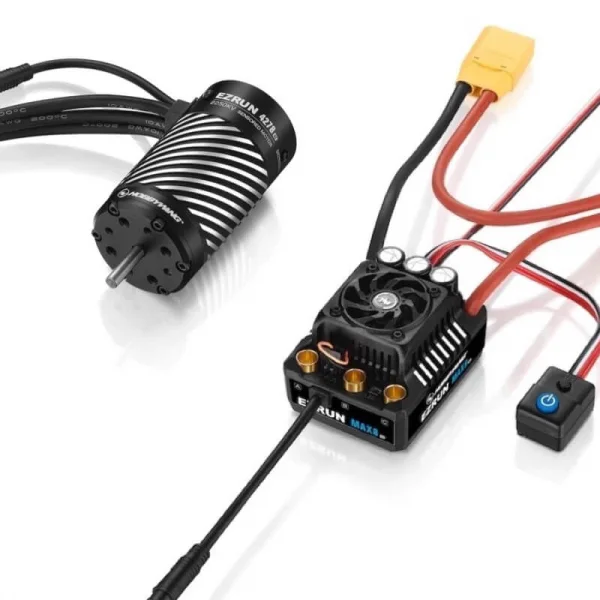

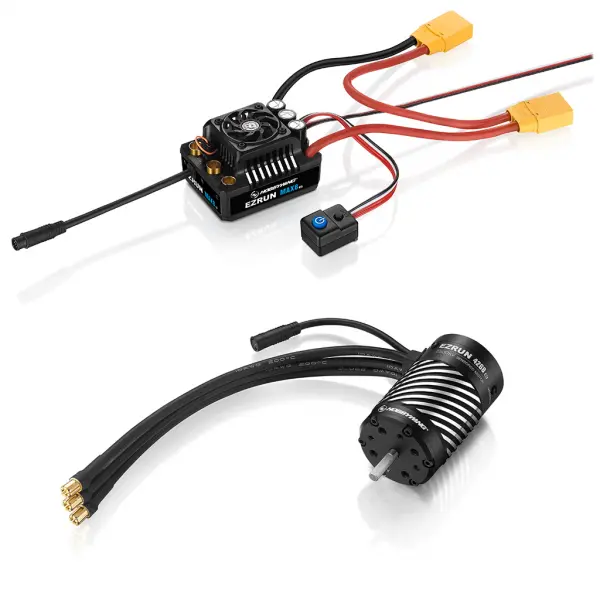

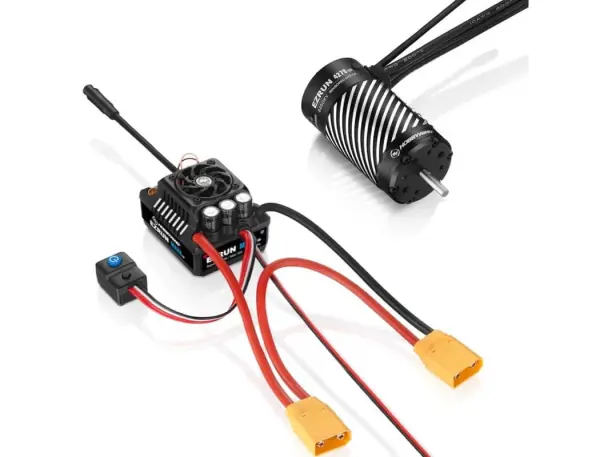

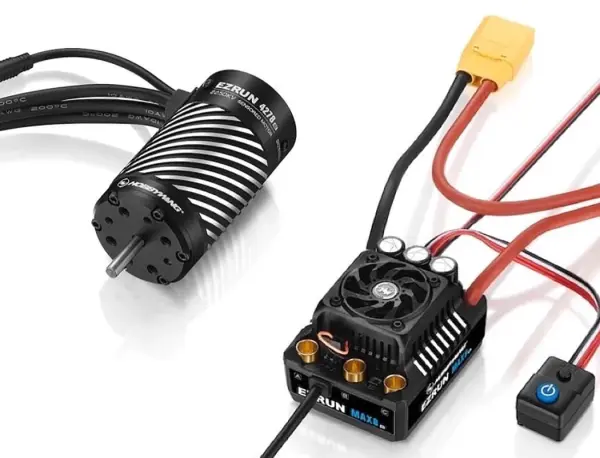

Hobbywing EZRUN MAX8 G2 ESC Combo With 4278SD 2250Kv G2 Motor
Brand: Hobbywing
Part No: HW38010405
THIS ITEM IS DISCONTINUED AND NO LONGER AVAILABLE.
PLEASE SEE ITEM #HW38020353 AS A REPLACEMENT
The Hobbywing EZRUN MAX8 G2 ESC Combo with 4278SD 2250Kv G2 motor delivers robust 1/8 scale performance with dependable waterproofing and advanced control. Designed for harsh conditions, this pairing provides smooth power delivery, comprehensive protection features and flexible tuning to suit demanding off-road use.
With selectable BEC voltage and extensive parameter options, the MAX8 G2 is ready for powerful and high-voltage servos. Real-time telemetry via the optional OTA Bluetooth module and HW LINK app helps you monitor and fine-tune performance. Turbo timing up to 32° can raise maximum rpm by around 25% when used with a matching EZRUN 4278SD motor.
Key Features
- Waterproof and dust-proof construction to handle sediment, ice, snow and standing water.
- High-power switch-mode BEC with selectable 6V / 7.4V / 8.4V outputs for powerful, high-voltage servos.
- Advanced electronic power switch resists dust, moisture and impacts to help prevent accidental shutdowns.
- Up to 32° turbo timing; with a matching EZRUN 4278SD motor, maximum rpm increase of around 25%.
- Multiple protections: low-voltage, ESC and motor overheat, signal loss and current protection.
- Parameter setup via LED Program Card, LCD G2 Program Box or OTA Programmer (optional).
- Real-time data logging in the HW LINK app via the optional OTA Bluetooth module.
- Firmware upgradeable via LCD G2 Program Box or OTA Programmer.
ESC Specifications
- Scale Vehicles: 1/8th
- Continuous / Peak Current: 160A / 1050A
- Motor Mode: Sensored and sensorless brushless
- Input: 3–6S LiPo
- Motor Limit: 4S LiPo KV ≤ 3000; 6S LiPo KV ≤ 2400 (4278 size)
- BEC Output: 6V / 7.4V / 8.4V adjustable, continuous current 10A (switch-mode)
- Programming Port: Shared with fan interface
- Switch Mode: Electronic switch
- Capacitor Protection: Yes
- Waterproof: Yes
- Size (L × W × H): 60 × 48 × 40.5 mm
- Weight: 192 g
- Connectors: Input XT90; Output 6.5 mm female gold plugs
Motor Specifications
- Model: 4278SD
- Poles: 4
- KV (no-load): 2250KV
- Resistance: 0.0048 Ω
- No-load Current: 5.0 A
- Motor Diameter / Length: 42 mm / 78 mm
- Shaft Diameter / Length (projecting): 5 mm / 18.5 mm
- LiPo: 3–6S
- Weight: 455 g (no wire)
- Application: 1/8 truck, crawler
- Best Match With: MAX8 G2 ESC
Suggested Compatibility
- 1/8 scale platforms using 3–6S LiPo systems
- 1/8 trucks and crawlers (as per manufacturer application)
Hobbywing part number: HW38010405.
Secured by Stripe
HOBBYWING COMBO EZRUN MAX8 G2 ESC 4278SD-2250KV MOTORFeatures
- The ESC uses a special process, coupled with an innovative waterproof design, to increase waterproofing and dust-proofing performance in different climates. It is easy to deal with the harsh conditions containing sediment, ice, snow, and water accumulation.
- Built-in ultra-powerful switch mode BEC with a continuous current of 6A, an instant 15A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.
- Equipped with the most advanced and safe electronic switches. The traditional mechanical switch protects and prevents dust, humid and other harsh environments, contact rust, and violent impact (such as flying slope landing) caused by the automatic closure of mechanical switches and other issues.
- Support the 32-degree turbo timing setting. When used with the matching motor (such as EZRUN 4278SD), the maximum rpm can be increased by about 25%, easily winning your rival. Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, and current protection.
- Support LED program card, LCD G2 program box, OTA programmer (Note: optional) to set the parameters of the ESC.
- Real-time data logging to view various running data on the HW LINK app using the OTA Bluetooth module.
- Supports the firmware upgrade of the ESC (The multi-function LCD G2 program box or OTA Programmer is needed to be purchased), so you can enjoy the latest functions.
ESC Specifications
Scale Vehicles: 1/8th
Cont./Peak Current: 160A / 1050A
Motor Mode: Sensored and sensorless brushless motor
Input: 3-6S Lipo
Motor Limit: 4S Lipo: KV≤3000; 6S Lipo: KV≤2400 4278 size motor
BEC Output: 6V / 7.4V / 8.4V adjustable, continuous current 10A (Switch-mode)
Programming Port: shared with fan interface
Switch Mode: Electronic Switch
Capacitor protection: Yes
Waterproof: Yes
Size (L.W.H)mm: 60(L) x 48(W) x 40.5(H)mm
Weight (g): 192g
Input/Output: Input: XT90 Output: 6.5mm gold plug female)
Motor Specifications
Model: 4278SD
Pole: 4
KV(No-load): 2250KV
R. (Ω): 0.0048Ω
Current No-load(A): 5.0A
Motor D.&L(mm): 42mm / 78mm
Shaft D&L of the projecting part (mm): 5mm / 18.5mm
LiPo(S): 3-6S Lipo
Weight (g): 455g (no wire)
Application: 1/8 truck, crawler
Best match with: MAX 8 G2 ESC
Key Info:
- Brand: Hobbywing
- Part No: HW38010405
- Barcode: 6938994416740
