Hobbywing MAX10 ESC Combo With 3652Sl 4000Kv Brushless Motor
Brand: Hobbywing
Part No: HW38010204
No longer available
This item has been discontinued. Contact our team and we'll help you find an alternative.
Description

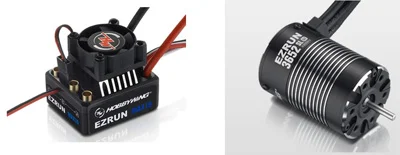

HOBBYWING COMBO MAX10 ESC 3652SL 4000KV MOTOR
Built with high-quality components and coupled with cutting-edge firmware, the MAX10 is able to deliver unmatched power and performance for even the most extreme racing applications, but it is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.
The MAX10 features an electronic switch with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design.
The waterproof and dust-proof design allows the MAX10 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.
The built-in switch mode BEC with a maximum output of 6A and voltage adjustable between 6V and 7.4V allows the use of various high voltage servos.
When pairing the MAX10 with a Hobbywing matching motor (i.e. EzRun 3652/3660 G2 motor), the temperature sensor cable on the ESC will monitor the motor temperature and protect the motor from irreversible damage due to overheating in real time.
Hobbywing EzRun MAX10 ESC Features:
- Capacitor Thermal Protection
- High Reliability & Durability
- Super Internal BEC
- Applicable to All Weather Conditions
- Advanced and Secure Electronic Switch
- Regular Firmware Updates
Spec Check:
- Scale: 1/10th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensorless
- Waterproof: Yes
- Cont./Peak Current: 60A/450A
- Input: 2-3S LiPo/6-9 Cells NiMH
- BEC Output: Switch Mode 6V/7.4V,3A
- Input Wires: Red-14AWG-200mm*1/Black-14AWG-200mm*1
- Output Wires: Black-14AWG-200mm*3
- Input Connectors: No
- Output Connecotors: 3.5 Bullet Connectors (Female)
- Fan Size: 25.0x25.0x10.0mm
- Voltage Range: 5-7.4V
- Powered by BEC
- SET Button on ESC: Supported
- LED Program Box: Supported
- LCD Program Box: Supported
- WiFi Module: Supported
- Size: 39.4x32.8x23.1mm
- Weight: 67.8g
The HobbyWing EzRun 3652 G2 motor features an Innovative 4-pole-8-magnet "staggered pole" rotor (Hobbywing-patented). It has low cogging effect and torque pulsation for improved control feel around corners. The built-in temperature sensor and sensor port protect the motor from damage due to overheating when pairing with an EzRun Max10/Max10 SCT ESC.
HobbyWing EzRun 3652 G2 4000KV SL Motor Features:
- Innovative 4-pole-8-magnet "staggered pole" rotor
- Built-in temperature sensor and sensor port
- O-ring seal fitted between the front end bell and motor case
- Special design motor case (the end attaches to the front end bell) isolates inner coils from outside to protect winding from being damaged by overlong screws
- Special technology for temperature control for less heat and more efficiency (efficiency rate of up to 90%)
- CNC machined aluminium housing, high purity copper windings and advanced rotor structure
- Rebuild-able design for easy routine maintenance
Spec Check:
- Scale: 1/10th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensorless
- Pole Count: 4
- KV Rating: 4000
- LiPo Cells: 2-3S
- No-load Current(A): 5.2
- Timing: 0 Degrees(Fixed)
- O.D.(mm): 36.00
- Length (mm): 52.00
- Shaft Diameter (mm): 3.175
- Weight (g): 216
Secured by Stripe
Hobbywing MAX10 ESC Combo With 3652Sl 4000Kv Brushless Motor Manuals & Guides
How-To Guides & Articles
Specifications
- Brand: Hobbywing
- Part No: HW38010204
- Barcode: 6938994407427
Delivery & Returns
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Customer Reviews
Amazing combo!
I installed it on my ARRMA Senton as a replacement for the original brushed system and it took the car to another level.
I have still to reprogram the ESC and I'm still using the stock pinion and spur. I'm sure it is going to accelerate the wear of these parts, but until then it will be a lot of fun.
Bottom line is, if you're looking for a combo for the same or similar car, don't look any further, buy - install - bash!
Questions & Answers
No they come with xt60 only.
Yes these come with xt60 connectors on them.
Yes that would work well.
This would work with that car but the KV rating is a little high for what we would recommend for a Tamiya car, try looking at the 3300kv version. HW38010203
It woul;d fit but we would not recomend this one for a Tamiya kit, we would look at the lower KV 3300 version # HW38010203
Yes this would fit that car for you.
Yes this would work in that car for you.
It would fit yes but we would recommend the 3300KV version for an off road car HW38010203
This would go in that car yes, but we woulod not normally advise a motor and esc this powerfull for that car as it is a basic car.
Yes, pricing looks to be correct on these
There are no connectors on these so you can solder on a deans if required
Any good 2S lipo would work well - eg say VZ0317
Yes, but it would need to be in a lightweight vehicle and geared appropriately.
For 3S, you'd be better with say HW38010203 or HW38010200
Yes that would fit - they are standard 540 size
You'd want something bigger in the limitless - MAX8 or even MAX6
These would still run on NiMh - but you will get better performance on LiPo
Yes you'd need to solder together motor and ESC
I'd probably go for the HW38010200 or HW38010203 over this in the granite
Either would work, but I'd say the 3300kv may be better suited
Yes, that would work well in there.
Yes that would fit
Depends more on your vehicle, but something like VZ0341 would fit most cars
No, you can solder on your choice of connector
Pretty sure from memory those took standard 540 size motors, so yes this should fit
Yes that would work nicely in there -
Yes that would fit
These come without connectors, so you could solder on a Traxxas connector if you wish
I'd go for a lower KV in that car
Yes, that would work fine in that car
It'll certainly fit in the TRX4 as it's standard size. It's not really a crawler system though - it's likely a bit fast. You really want a lower KV motor for lower RPM.
An ideal crawler system would be the HW AXE systems say the HW38020252 or HW38020253
Yes it will fit - but it's a bit high KV wise for a 4X4 SCT such as that.
This will work with them all, led, lcd and the wifi box for your phone. So HW30502000 HW86020020 and HW30503000
Yes, that would work OK in a Bugsta.
