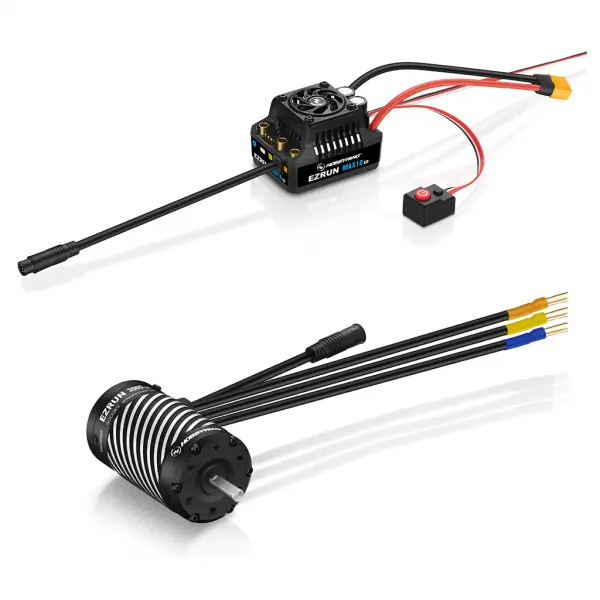

Hobbywing MAX10 G2 80A ESC Combo With 3652SD 5400Kv G3 Motor
Brand: Hobbywing
Part No: HW38020348
Shadow Stock: Usually ships next day
The Hobbywing MAX10 G2 80A ESC Combo pairs the MAX10 G2 ESC with the EzRun 3652SD G3 5400KV motor to deliver smooth, sensored control with robust protection for demanding conditions. Enhanced efficiency, intelligent cooling and comprehensive telemetry support make this brushless system a strong choice for high-performance running. Part number HW38020348.
With an upgraded waterproof sensored interface and refined sensored mode, throttle response is precise and consistent. Turbo timing adjustment up to 32 degrees, when used with EzRun 3652/3665 G3 motors, can increase maximum speed by up to 25%. Smart start–stop fan control reduces noise and power draw, while increased onboard capacitance and overheating protection bolster reliability.
Key Features
- Improved waterproof sensored cable interface and upgraded sensored mode for refined control; ideal match with EzRun 3652/3665 SD G3 motors.
- Turbo timing adjustment up to 32 degrees; with EzRun 3652/3665 G3 motors, maximum speed can be up to 25% higher.
- Smart start–stop technology: frameless fan engages only when temperature rises, reducing noise and saving power.
- 74% increase in total capacitor capacitance over the previous MAX10 generation, plus overheating protection for improved power delivery.
- Smart Freewheeling technology for higher drive efficiency and significantly lower operating temperatures (approximately 25°C lower than the previous generation).
- Connect the ESC with the OTA Bluetooth module to view real-time data (throttle, voltage, current, temperature, speed, etc.) and access data logging via the mobile app.
- IP67 waterproof and dustproof design for confident running on mud, sand, ice, snow and water.
Specifications
- Series: EzRun 3652 SD G3
- KV Rating: 5400KV
- Motor P/N: 30402606
- LiPo: 2S
- Resistance (R): 0.00477Ω
- No‑Load Current: 6.8A
- Timing (deg.): 0
- Motor Size (Diameter x Length): Φ37 x 53mm
- Shaft Size (Diameter x Length): Φ3.17 x 15mm
- Poles: 4
- Weight: 227.9g
This combo integrates the MAX10 G2 80A ESC with the EzRun 3652SD G3 5400KV motor (P/N 30402606) to provide a balanced brushless power system with sensored control, intelligent cooling and comprehensive telemetry support.
Secured by Stripe
- The EzRun Max10 G2 features an improved waterproof sensored cable interface and an upgraded sensored mode to achieve a great sense of control feel and perfectly matches the EzRun 3652/3665 SD G3 motors.
- Supports Turbo timing adjustment of up to 32 degrees, and in combination with the EzRun 3652/3665 G3, the maximum speed is 25% more with greater effect.
- The smart start-stop technology is introduced to the Max10 G2 ESC. The frameless fan will not be enabled to reduced noise and saving power. The fan will only work when the temperature rises to a certain level.
- Compared with the previous generation of the MAX10 ESC, the total capacitance of the capacitor is increased by 74% and is overheating protected. The functions improve the power delivery from the battery to the ESC to avoid it from overloading and causing capacitors to explode.
- Smart freewheeling technology enables the MAX10 G2 to have higher drive efficiency than the previous generation, resulting in lower operating temperatures and a minimum temperature of approximately 25°C lower than the previous generation.
- After connecting the ESC with the OTA Bluetooth module, you can view the data (throttle amount, voltage, current, temperature, speed and etc) in real time through the mobile app to know the running status; The history of the running status can also be viewed by data logging.
- The IP-67 waterproof system guarantees excellent waterproofing and dustproofing protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.
Ezrun Series:3652 SD G3
KV: 5400
P/n: 30402606
LiPo: 2S
R. (Ω): 0.00477Ω
No-load Current: 6.8A
Timing (deg.): 0
Motor Diameter & Length: Φ=37 / L=53
Shaft Diameter & Length: Φ=3.17 / L=15
Pole: 4
Weight (g): 227.9g
Key Info:
- Brand: Hobbywing
- Part No: HW38020348
- Barcode: 6938994407540
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
That would be a bit hot we would recommend the lower kv ones like this HW38020346 that will run on 2s or 3s lipo and be much stronger
No that is too high kv with not enough torque.
I would use this HW38020343
That is an XT60 connector that is fitted and they are ready to run.
