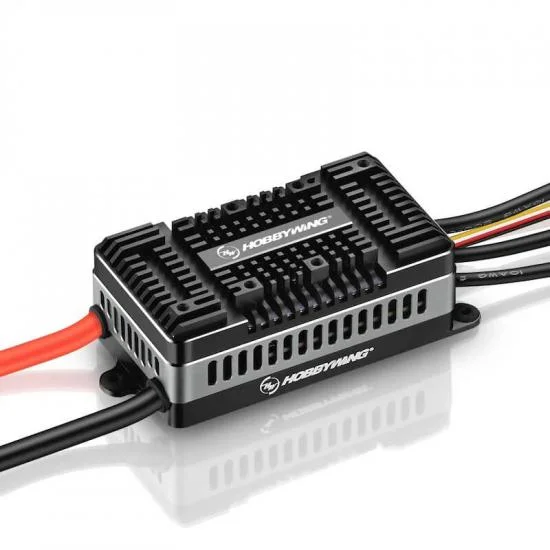

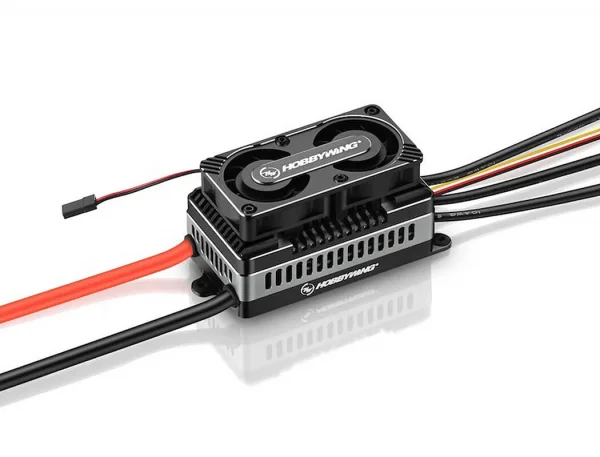

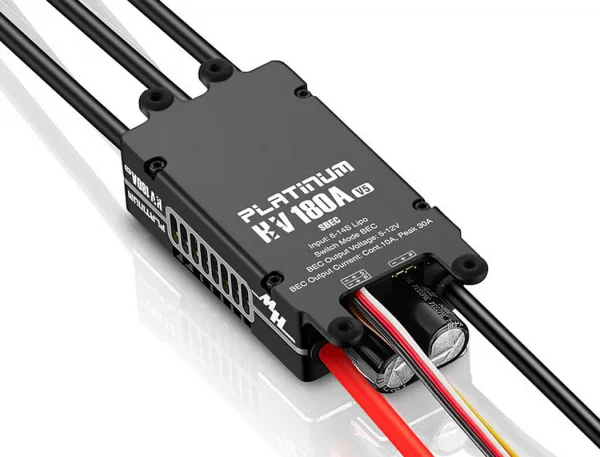

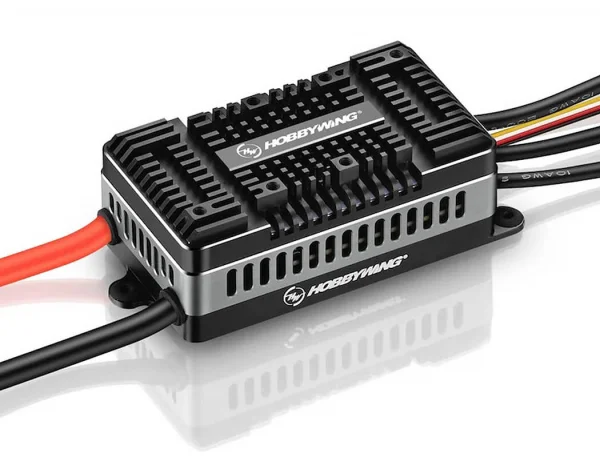

Hobbywing Platinum 180A HV SBEC V5 ESC

The Hobbywing Platinum 180A HV SBEC V5 ESC (HW30209103) is a high-current controller designed for larger RC aircraft. It supports 6–14S LiPo power systems and delivers 180A continuous current (260A peak for 10s). An integrated switch‑mode SBEC provides a wide 5–12V adjustable output in 0.1V steps, rated at 10A continuous and 30A peak to power onboard electronics.

Setup is streamlined via a separate programming port compatible with the Hobbywing Tunalyser, LCD Program Box and OTA Programmer. Installation is aided by robust 10AWG leads, gold output connector, M3 mounting holes, and a compact case size for flexible placement. Physical dimensions and wiring lengths are listed below for planning your build.

Specifications

• Model: 180A HV
• Application: 550–700 class electric helicopter (main rotor length 550–700mm), or fixed-wing
• Input (V) LiPo: 6–14S
• Continuous/Peak Current (10s): 180A / 260A
• BEC (Switch Mode): 5–12V adjustable (step: 0.1V), 10A/30A Cont./Peak
• Separate Programming Port: Tunalyser / LCD Program Box / OTA Programmer
• Input Wires: Red 10AWG 150mm / Black 10AWG 150mm
• Output Wires: Black 10AWG 100mm
• Output Connector: Gold connector
• Mounting Holes: M3, 16.5* 90x34mm
• Size: 100.6 x 45.5 x 26.1 mm
• Weight: 250.6g (without fan)

Suggested Compatibility

• 550–700 class electric helicopters (main rotor length 550–700mm)
• Fixed-wing aircraft
