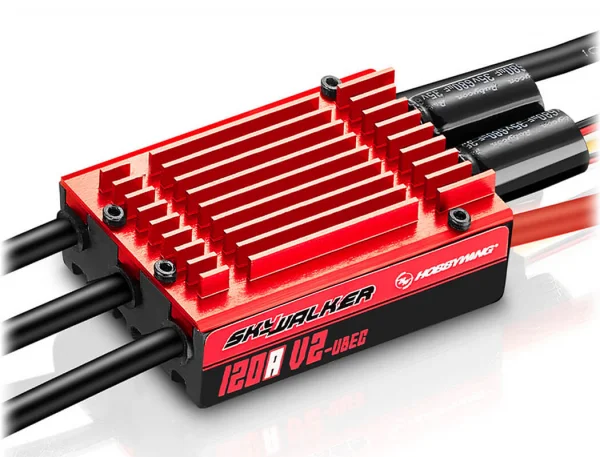

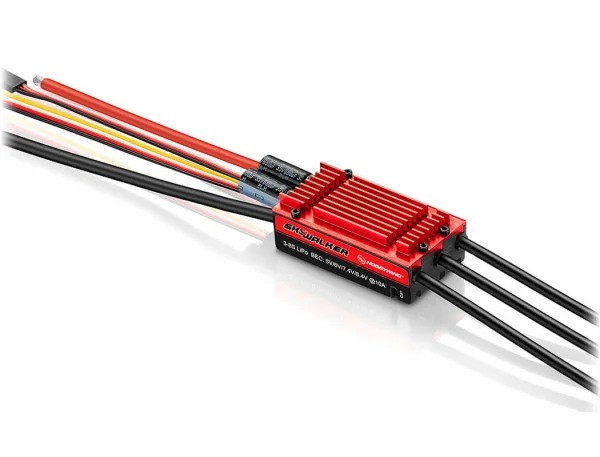

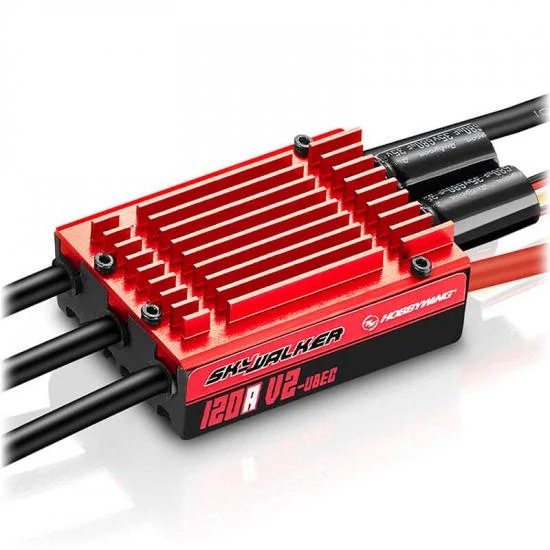

Hobbywing Skywalker 120A 8S V2 Speed Control

The Hobbywing Skywalker 120A 8S V2 Speed Control (HW30205450) is a brushless ESC designed for fixed‑wing RC aircraft, delivering 120A continuous current with support for 3–8S LiPo setups. A 32‑bit ARM M0 processor running up to 120MHz and Hobbywing’s DEO technology help provide crisp throttle response while keeping temperatures in check. An adjustable high‑current switch‑mode BEC offers 5V, 6V, 7.4V or 8.4V output to suit a wide range of servos and receivers.

Pilots benefit from programmable normal/reverse brake modes to shorten landing distance, plus protective features including low‑voltage cutoff, thermal protection and signal‑loss fail‑safe. A built‑in search mode can aid locating a downed model with audible beeps. Setup can be carried out via your transmitter or the optional LED Program Box (HW30501003).

Features

• Compatible with various brushless motors
• 32‑bit ARM M0 microprocessor running up to 120MHz
• DEO (Driving Efficiency Optimisation) for improved throttle response and lower ESC temperatures
• Normal and reverse braking modes to help reduce landing distance
• Protections: low‑voltage shutdown, overheat protection and throttle signal‑loss protection
• Search mode with alarm beeps to help locate the aircraft
• Programmable via transmitter or LED Program Box (HW30501003)

Key Specifications

• Type: Brushless, regular voltage
• Continuous / peak current: 120A / 150A (up to 10s)
• Input: 3–8S LiPo
• BEC: Switch‑mode 5V / 6V / 7.4V / 8.4V, 10A continuous / 30A peak
• Input wires: Red 10AWG 150mm ×1 / Black 10AWG 150mm ×1
• Output wires: Black 12AWG 100mm ×3
• Input connectors: None
• Motor connectors: 4.0mm female gold connectors (on ESC)
• ESC programming: Transmitter or LED Program Box only
• Firmware upgrade: Not supported
• Dimensions: 85 × 35 × 22 mm
• Weight: 117 g

Suggested Compatibility

• Fixed‑wing RC aircraft using brushless motors on 3–8S LiPo power
