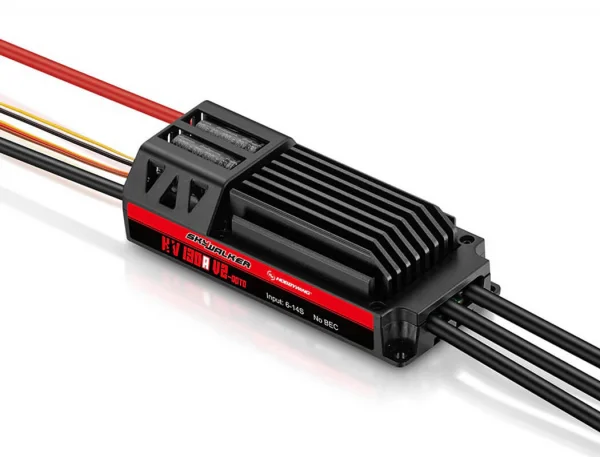

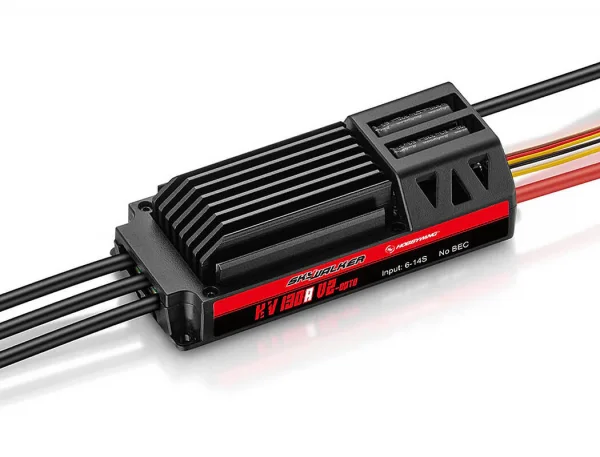

Hobbywing Skywalker 130A HV 14S Opto V2 ESC

The Hobbywing Skywalker 130A HV 14S OPTO V2 ESC (HW30222300) is a high-voltage brushless speed controller designed for demanding aircraft applications. A 32-bit ARM M4 MCU running at up to 120MHz delivers precise control, while Hobbywing’s DEO technology enhances throttle response, improves efficiency and helps keep operating temperatures lower. As an OPTO ESC, it has no internal BEC, making it well suited to high-cell-count power systems where a separate receiver power source is preferred.

Refined flight-oriented functions include a reverse brake mode to help shorten landing distance and a search mode that emits alarm beeps to help locate a downed model. A separate programming cable enables quick setup via a compatible LED Program Box or directly from your transmitter.

Features

• High-performance 32-bit ARM M4 microprocessor (up to 120MHz) compatible with various brushless motors.
• DEO (Driving Efficiency Optimisation) technology improves throttle response, boosts driving efficiency and reduces ESC temperature.
• Separate programming cable for connecting the ESC to an LED Program Box for convenient setup.
• Normal/Reverse brake modes help shorten aircraft landing distance.
• Search mode emits alarm beeps to help find an aircraft after an off-field landing.
• Multiple protections: start-up, ESC thermal, capacitor thermal, over-current, over-load, abnormal input voltage and throttle signal loss.

Key Specifications

• Type: Brushless, High Voltage
• Continuous/Peak Current: 130A / 160A
• Input: 6–14S LiPo
• BEC Output: No BEC (OPTO)
• Input Wires: Red 10AWG 300mm ×1; Black 10AWG 300mm ×1
• Output Wires: Black 10AWG 150mm ×3
• Input Connectors: None
• Output Connectors: None
• Size: 104 × 48 × 29mm
• Weight: 253.2g

Programming Options

• Transmitter: Supported
• LED Program Box: Supported
• LED Program Card: Not supported
• LCD Program Box: Not supported
• WiFi Module: Not supported
• OTA Programmer: Not supported
• Program Port: Program wire
