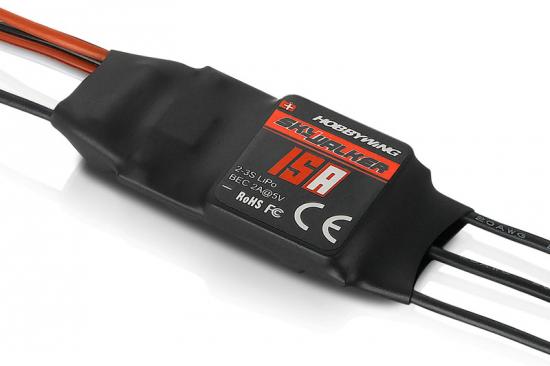

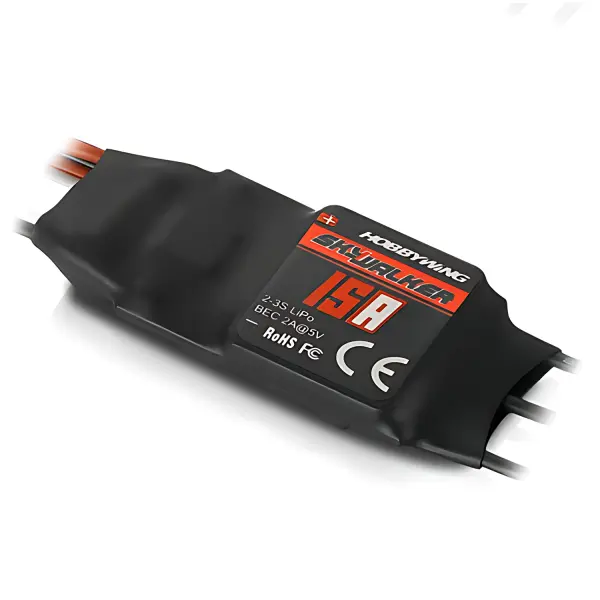

Hobbywing Skywalker 15A ESC (HW30205150)
Brand: Hobbywing
Part No: HW30205150
Shadow Stock: Usually ships next day
Finance options available at checkout.
Description
The Hobbywing Skywalker 15A ESC (HW30205150) is a compact, reliable brushless speed controller for RC aircraft. Built with quality components, it delivers dependable power management, useful programmability and robust protection features to help safeguard your model and electronics.
Key Features
- 15A continuous current with 20A peak capability
- 2–3S LiPo input support
- Linear BEC: 5V, 2A for receiver and servos
- Programmable parameters; LED Program Card supported
- Multiple protections: abnormal input voltage, ESC thermal, throttle signal loss (Fail Safe) and low voltage cutoff
- Lightweight, low-profile design: 48.0 x 22.5 x 6.0 mm, 17 g
Specifications
- Type: Brushless (BL)
- Continuous/Peak Current: 15A / 20A
- Input: 2–3S LiPo
- BEC Output: Linear 5V, 2A
- Input Wires: Red 20AWG 100mm x1, Black 20AWG 100mm x1
- Output Wires: Black 20AWG 100mm x3
- Input Connectors: None
- Output Connectors: None
- LED Program Card: Supported
- WiFi Module: Not supported
- Size: 48.0 x 22.5 x 6.0 mm
- Weight: 17 g
Combining ease of setup with essential safety features, the Skywalker 15A is a practical choice for lightweight aircraft builds that need smooth throttle response and simple, reliable control.
Secured by Stripe
Hobbywing Skywalker 15A ESC Manuals & Guides
Specifications
HOBBYWING SKYWALKER 15A SPEED CONTROLLER
Good quality comoponents guarantees the high quality and reliability of SkyWalker series of aircraft ESCs. Multiple protection features include abnomal input voltage, ESC thermal, throttle signal loss (or Fail Safe), and low voltage cutoff effectively prolongs the service life of the ESC.
HobbyWing Skywalker Series Features:
- High Quality & Reliability
- Programmable Parameters
- Multiple Protections
Spec Check:
- Brushed/Brushless: BL
- Cont./Peak Current: 15A/20A
- Input: 2-3S LiPo
- BEC Output: Linear mode:5V,2A
- Input Wires: Red-20AWG-100mm*1, Black-20AWG-100mm*1
- Output Wires:Black-20AWG-100mm*3
- Input Connectors: No
- Output Connecotors: No
- LED Program Card: Supported
- WiFi Module: Not Supported
- Size: 48.0x22.5x6.0mm
- Weight: 17g
Key Info:
- Brand: Hobbywing
- Part No: HW30205150
- Barcode: 6938994402095
