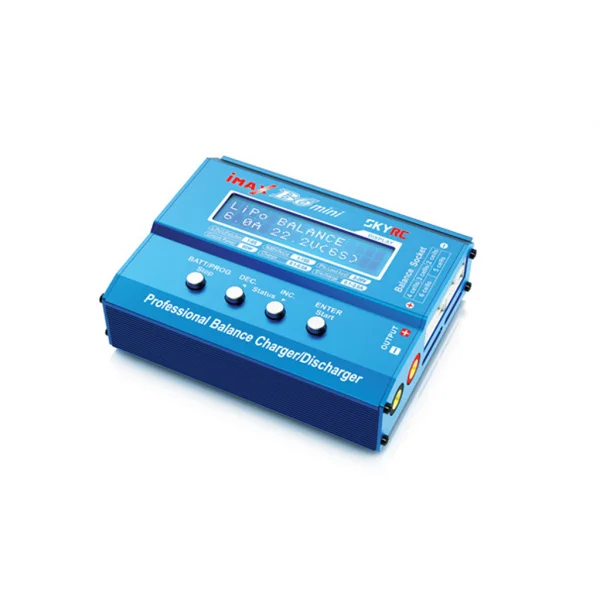

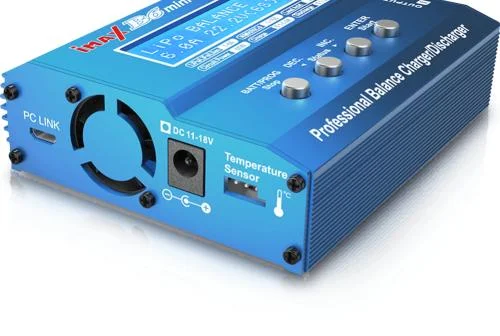

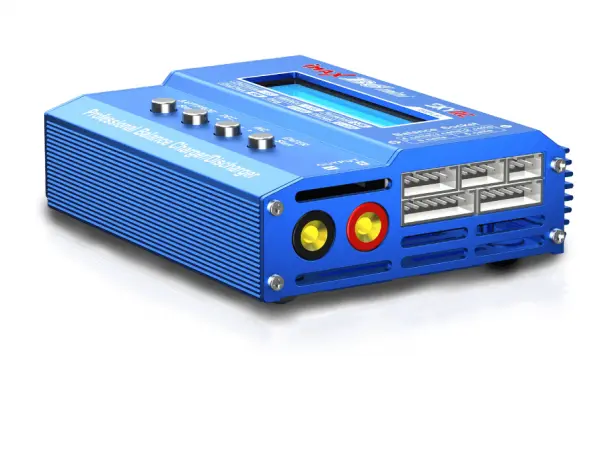

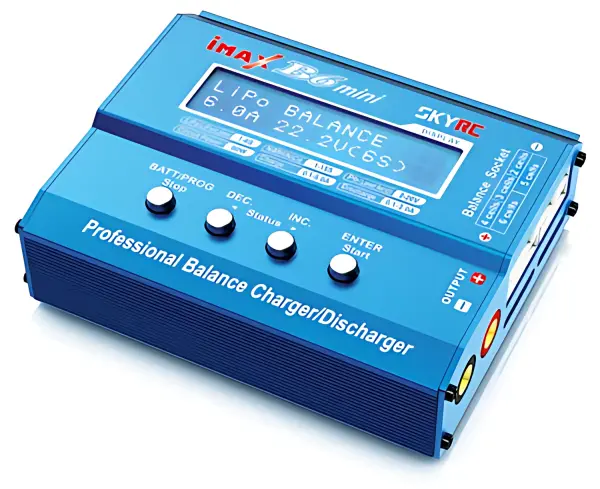

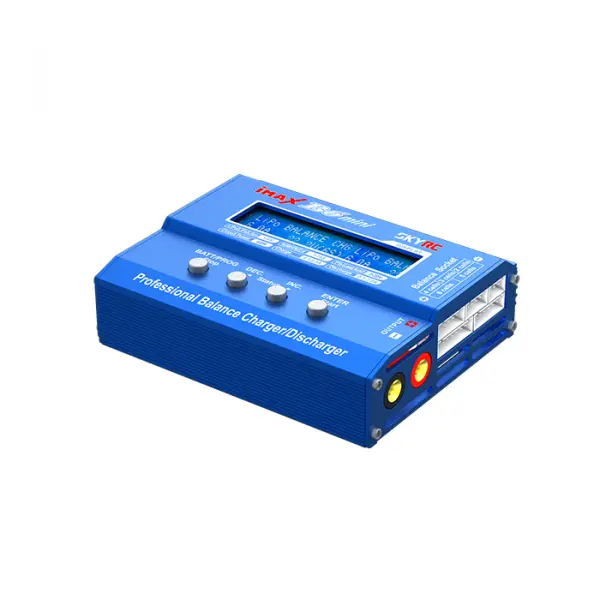

Imax B6 Mini Charger 6A 60W DC
Brand: SkyRC
Part No: SCH-SK-100084
In Stock: Usually ships same day
The SkyRC Imax B6 Mini Charger 6A 60W DC (SkyRC part SCH-SK-100084) is a compact, multi-chemistry charger designed for RC battery care at home or at the field. Delivering up to 6A charge current with 60W output and 11–18V DC input, it adds advanced tools such as terminal voltage control, a battery meter and an internal resistance tester. USB connectivity enables PC control and firmware upgrades, while the optional WiFi module (SK-600075) allows smartphone monitoring.
Features
- Compact size for field or bench use
- Terminal Voltage Control (TVC)
- Re-Peak mode for NiMH/NiCd batteries
- Battery meter and internal resistance tester
- PC communications via USB for control and firmware upgrades
- Smartphone control/monitoring via optional WiFi module (SK-600075)
Specifications
- Charge circuit power: 60W
- Max charge current: 6A
- Discharge circuit power: 5W
- Discharge current: 0.1–2A
- DC input voltage: 11–18V
- LiPo/LiFe/LiIon cells: 1–6S
- NiMH/NiCd cells: 1–15S
- Pb battery: 1–10P (2–20V)
- Dimensions: 102 x 84 x 29 mm
- Weight: 231 g
What’s Included
- DC input lead with crocodile clips
- XT60 charge lead
- Deans charge lead
- Crocodile clip charge lead
- JST charge lead
Secured by Stripe
-Compact size
-Terminal voltage control
-Re-Peak mode for NiMH/NiCd Battery
-Battery meter
-Battery internal resistance tester
-PC Communications: USB Port for PC Control & Firmware Upgrade
-Smart phone control and monitor via Wifi module (SK-600075 Optional Part)
Specifications
DC Input Voltage - 11-18v
Charge circuit power - 60w
Discharge circuit power - 5w
Charge Currunt - Max 6A
Discharge current - 0.1-2A
Lipo/Life/Lilon Battery cell count - 1-6S
NiMH/NiCd Battery cell count - 1-15s
Pb battery - 1-10P (2-20v)
Dimension - 102x84x29mm
Weight - 231g
Instruction Manual
Includes DC input lead with crocodile clips. XT60, deans, crocodile and JST charge leads.Key Info:
- Brand: SkyRC
- Part No: SCH-SK-100084
- Barcode: 5051294088767
- Input Voltage: 12V
- Included Connectors:
• 4mm Banana Sockets
• Deans
• Receiver
• XH LiPo Balancers
• XT60 - Chemistry: LiPo
Additional Categories:
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
Yes we only deal with u.k distributors.
0-fs-ps201 will be ideal as a power supply for this.
No this is DC ,you would need to buy a power supply to use at 240v or a different charger like this
Yes this can charge NiMH and Lipo batteries
Lipo/Life/Lilon Battery cell count - 1-6S
NiMH/NiCd Battery cell count - 1-15s
You would need a power supply, I'd buy the RC6-VCR charger instead.
Not sure I understand your query? These will take a 12v input - eg say from a 240v to 12v power supply ,or a 12v source (eg a car battery)
Yes it'll charge 6S
Max charge rate is 6A, so it would charge most packs in around 1 hour / just under
It comes in the box with a crocodile type connection.
This is an original version imported through schumacher UK
No, these are 12v input
Includes charge leads for:
- Deans
- Alligator Clips
- XT60
- Futaba
- JST
No, this is 12v DC input.
