Description

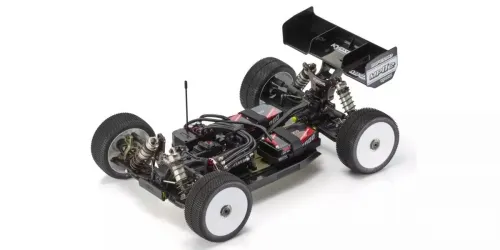

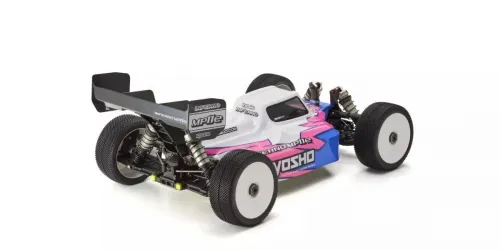

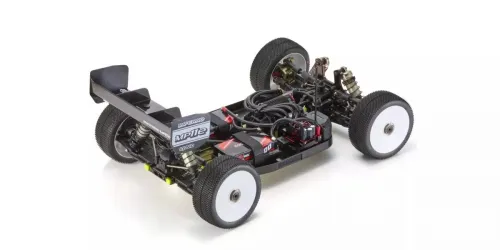

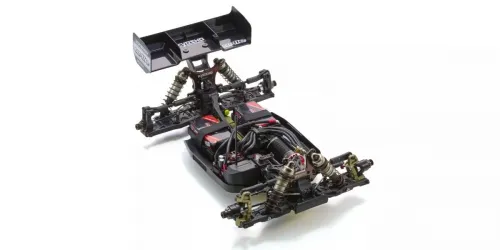

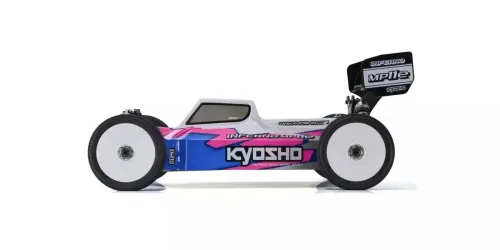

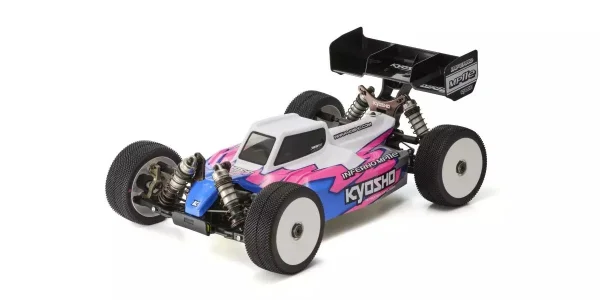

The Kyosho Inferno MP11E K.34119B is a 1/8-scale electric racing buggy kit with a shaft-driven 4WD drivetrain. Based on the MP11 platform, this electric version uses a dedicated chassis, body and battery layout for brushless-powered racing. Its front-motor, split-battery arrangement is designed around short and mid-size battery packs, with the motor positioned closer to the chassis centreline for balanced handling.

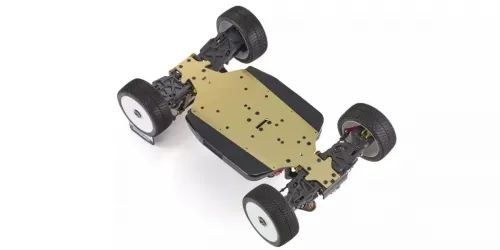

The centre gearbox accepts adjustable spur gear heights, while 0.8-module pinion and spur gears allow gear ratio tuning for different setups. The chassis uses an A7050 duralumin main plate, with A7075 duralumin front and rear shock stays. Long diaphragm oil shocks, MP11 front and rear suspension geometry and a 12-degree front kingpin angle are included in the design. The steering wiper rod mount uses a bushing arrangement to allow Ackermann adjustment, and the rear wing position can be changed using different spacers.
Specifications
- Length: 490 mm
- Width: 307 mm
- Height: 180 mm
- Wheelbase: 325 mm, adjustable with rear hub collars
- Approximate weight: 3,390 g
What's Included
- Unassembled buggy kit
- Clear body, wing, window mask sheet and logo decal
- Ring gear grease
- Hexagonal, cross and wheel wrenches
- Body and wing components for assembly
Required to Complete
- 2-channel car radio system and steering servo
- Two 2S LiPo batteries are recommended, plus a suitable charger
- Brushless motor and ESC
- 1/8 buggy tyres, inner sponges and wheels
- Silicone oil for the shocks and differentials
- Polycarbonate body paint, instant adhesive, tools and screw-lock material
Secured by Stripe
Kyosho Inferno MP11E Manuals & Guides
Specifications
- Latest model in the high-end 1/8-scale EP Inferno buggy series.
- Shares components with the race-proven GP MP11.
- Shaft-driven 4WD system ensures excellent driving efficiency and high reliability.
- High-strength A7050 duralumin main chassis delivers optimal flex for RC buggies.
- Revised electronics and battery layout for optimal weight balance. Supports modern mid-size batteries (full-size packs not supported).
- Newly designed body and rear wing enhance aerodynamic performance.
- Rear wing position can be changed by replacing the spacer between the rear wing stay and the rear wing.
- 0.8 module pinion and spur gears enable efficient drive transmission and precision gear ratio tuning.
- Dogbone style center drive shaft effectively improves traction performance.
- Adopts the new MP11 front and rear suspension geometry.
- Aluminum front hub carrier with 12° kingpin angle equipped as standard for improved high-speed stability.
- Long diaphragm oil shocks on front and rear provide smooth and reliable running stability.
- Front and rear shock stays are made of highly rigid A7075 duralumin. Rear shock stays are also lightweight design.
- Steering wiper rod mount changed to bushing type for Ackermann adjustment.
- Assembly kit features specifically designed body and wing.
- Length 490mm
- Width 307mm
- Height 180mm
- Wheelbase 325mm (Can be changd by replacing rear hub collars）
- Tread（F/R）254mm
- Tires（F/R）sold separately
- Gear Ratio 10.14: 1
- Weight 3,390g (approx.)
- Unassembled kit set
- Wing
- Clear body
- Window mask sheet
- Logo Decal
- Ring gear grease
- Hexagonal wrench (1.5/2.0/2.5/3.0mm)
- Cross wrench
- Wheel wrench
- 2-channel 2-servo R/C system for cars
- Servo
- Battries for chassis(2S Lipo x2 Recommendation）
- Charger
- Motor
- ESC
- Tire & Inner sponge (for 1/8 Buggy)
- Wheel
- Silicone oil for Shock
- Silicone oil for Diff
- Paint for coloring body (*spray paint for polycarbonate)
- Instant adhesive
- Tools
- Screw lock material
Key Info:
- Brand: Kyosho
- Part No: K.34119B
- Barcode: 4548565518937
- Scale: 1:8
- Vehicle Type: Buggy
- Power Source: Electric - No Motor
- Surface Type: Off Road
- Build Level: Unassembled (Kit)
