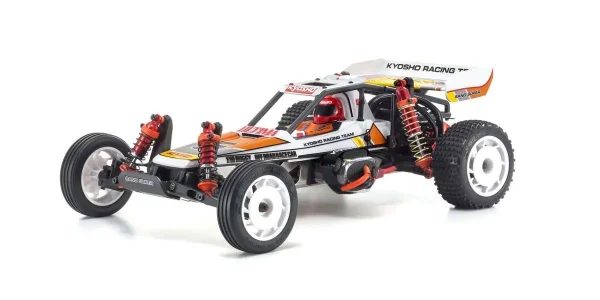

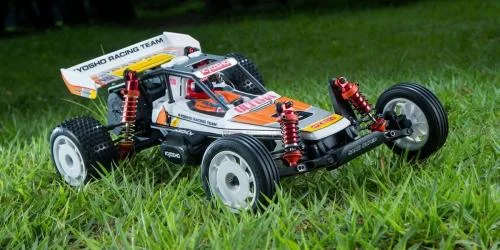

Kyosho Ultima Legendary Series 2WD Buggy K.30625B
Brand: Kyosho
Part No: K.30625B
In Stock: Usually ships same day
Finance options available at checkout.
Save with a Combo Package
Our recommended kit, bundled at a combined priceAdd a radio system, steering servo, batteries and charger to your new model. Note, you may also wish to choose some bodyshell paint from our range.
1× eTronix Pulse EX2 Sport - 2 Channel 2.4Ghz Radio Set
1× EP Super Duty 3000mAh NiMh Stick Pack - 7.2v - Tamiya Connector
1× Power HD 1812MG Waterproof Metal Geared Servo - 18kg - 0.12s
1× Team Orion IQ801 1 AMP NiMh Charger With Deans to Tamiya Adapter
Add a better specification radio system, steering servo, higher capacity battery and fast charger to your new Tamiya model. Note, you may also wish to choose some bodyshell paint from our range.
2× HPI Plazma 1.5V Alkaline AA Battery (4Pcs)- 1× eTronix Pulse EX2 Sport - 2 Channel 2.4Ghz Radio Set
1× Voltz 5300mAh NiMh Stick Pack - 7.2v - Tamiya Connector
1× eTronix Power Pal Peak Detect NiMh Fast Charger - Mains/12v Input
1× Savox SW0231MG+ Waterproof Metal Gear Digital Servo - 15kg - 0.17s
Frequently Bought With
Other items customers often buy with the Kyosho Ultima Legendary Series
Description
The Kyosho Ultima Legendary Series (part number K.30625B) returns as the 8th model in the Kyosho Vintage Series, celebrating the Ultima’s TQ and 1-2-3 finish at the 1987 Electric Off-Road World Championship in England. First released in 1986, this iconic 2WD electric buggy has been updated in its 2019 reissue to meet the demands of modern circuits and power sources while preserving its classic character and silhouette.

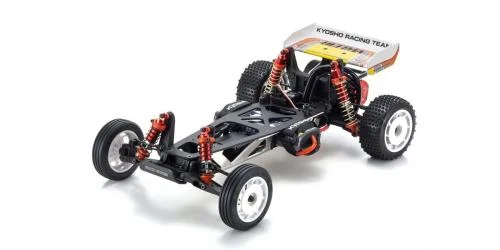

A monocoque frame made from aircraft grade A60601T6 aluminium alloy, full ball bearing specification and high-durability sintered alloy metal gears form a robust, efficient drivetrain. Protection comes courtesy of a slipper clutch, motor guard and crash-resistant resin rear wing, while multi-pin block pattern rear tyres enhance performance on contemporary off-road tracks. The clear polycarbonate body with driver cockpit recreates the look of the original Ultima.
Features
- Faithfully recreated design with component upgrades for suggested compatibility with modern power sources.
- Polycarbonate body with driver cockpit captures the original Ultima style.
- Full ball bearings (14) minimise drive loss.
- Battery guard helps prevent battery short circuit during a crash.
- Aircraft grade A60601T6 aluminium monocoque frame.
- Multi-pin block pattern rear tyres suited to modern off-road tracks.
- High-durability sintered alloy metal gears.
- Slipper clutch and motor guard for drivetrain protection.
- Crash-resistant resin rear wing included.
Specifications
- Length: 370mm
- Width: 244mm
- Height: 106mm
- Wheelbase: 260-263mm
- Tread (F/R): 206mm / 208mm
- Tyre (F/R): 75f x 20mm / 82f x 36mm
- Gear Ratio: 8.64:1
- Weight: approx. 1,500g
- Motor: 540 class size
What’s In The Box
- Pre-assembled kit
- Polycarbonate clear body
- Decals
- Chassis parts
- Cross wrench
- Shock wrench
- Grease
Required To Complete
- 2ch 1 servo R/C system for cars
- 540 class motor
- ESC compatible with motor used
- Battery for chassis compatible with ESC used
- Battery charger
- Paint for polycarbonate body
- Batteries for transmitter
Secured by Stripe
Kyosho Ultima Legendary Series Manuals & Guides
Manuals & Guides
- K.30625B Kyosho Ultima Legendary Series Manual (Part 1)
- K.30625B Kyosho Ultima Legendary Series Exploded View (Part 1)
- K.30625B Kyosho Ultima Legendary Series Exploded View (Part 2)
- K.30625B Kyosho Ultima Legendary Series Manual (Part 2)
- K.30642 Kyosho Ultima 87 JJ Replica - 60th Anniversary Ltd Edition Exploded View
- K.30642 Kyosho Ultima 87 JJ Replica - 60th Anniversary Ltd Edition Manual
Specifications
- ULTIMA has been faithfully recreated, with component upgrades for compatibility with modern power sources.
- Polycarbonate body with driver cockpit recreates the style and atmosphere of the original ULTIMA.
- Full ball bearing specifications (14)
- Equipped with battery guard that prevents battery short circuit during a crash.
Specifications:
- Length: 370mm
- Width: 244mm
- Height: 106mm
- Wheelbase: 260-263mm
- Tread (F/R): 206mm / 208mm
- Tire(F/R): 75f x 20mm / 82f x 36mm
- Gear Ratio: 8.64:1
- Weight: approx. 1,500g
- Motor: 540 class size
What's in the Box:
- Pre-assembled kit
- Polycarbonate clear body
- Decals
- Chassis parts
- Cross wrench
- Shock wrench
- Grease
Required to Complete:
- 2ch 1 servo R/C system for cars
- 540 class motor
- ESC compatible with motor used
- Battery for chassis compatible with ESC used
- Battery charger
- Paint for polycarbonate body
- Batteries for transmitter
Key Info:
- Brand: Kyosho
- Part No: K.30625B
- Barcode: 4548565369539
- Scale: 1:10
- Vehicle Type: Buggy
- Power Source: Electric - No Motor
- Surface Type: Off Road
- Build Level: Part Assembled (ARTR)
