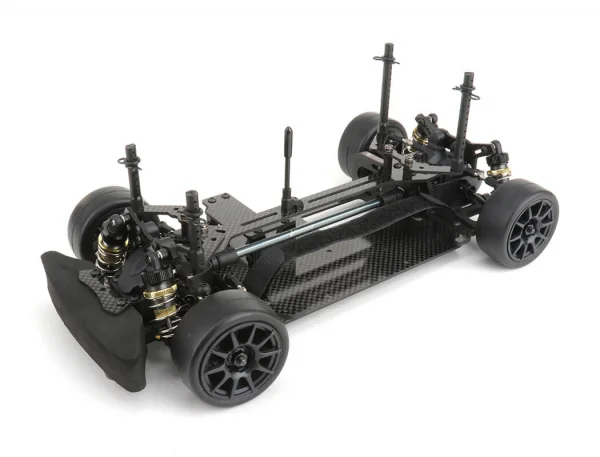

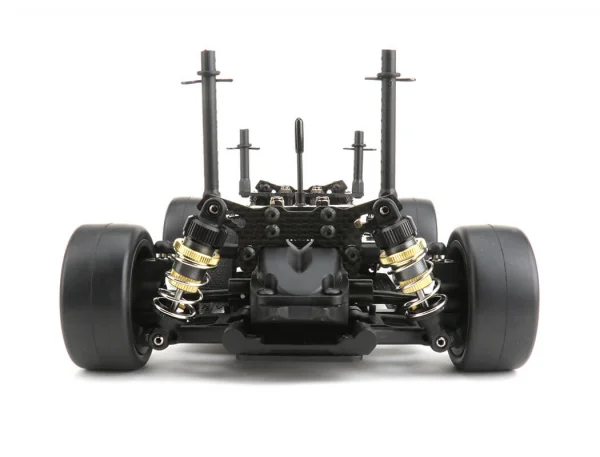

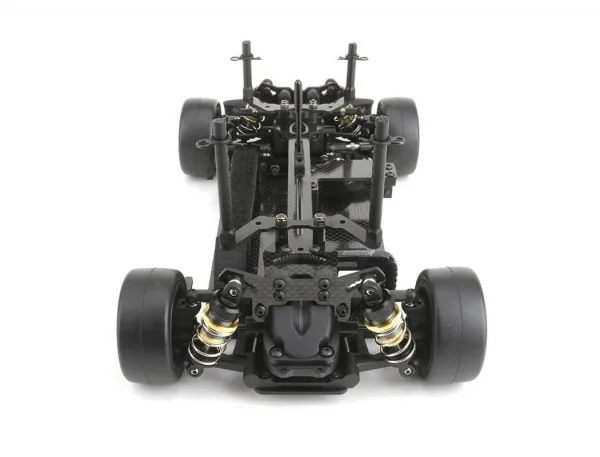

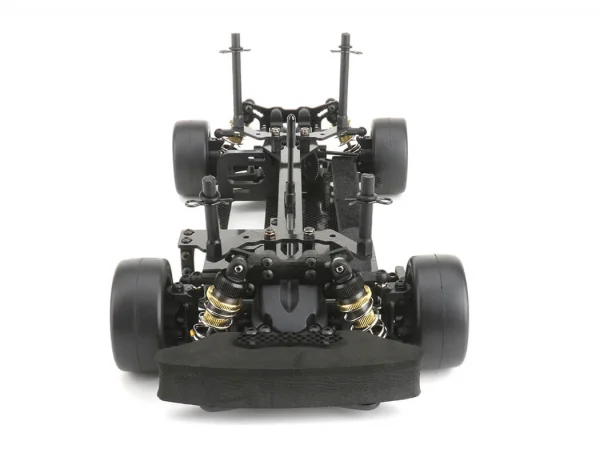

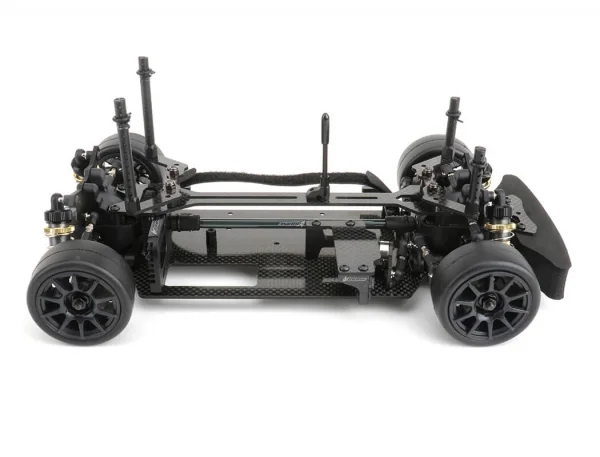

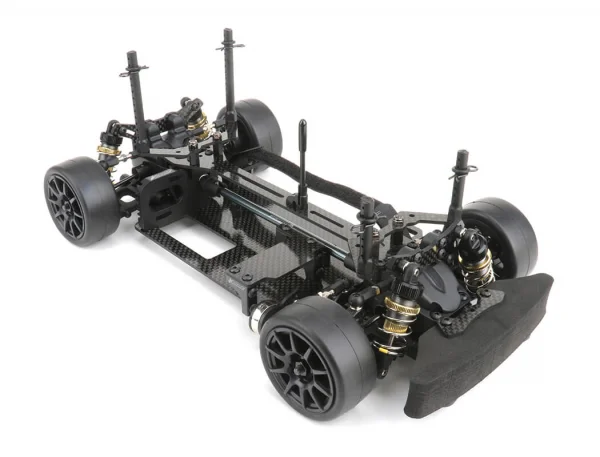

Louise RC LMX M Rally Kit

The Louise RC 1:10 LMX Rally Kit (M-Chassis), part number LNBA101, delivers a high-spec mini chassis platform built for precision and durability. A shaft-drive 4WD drivetrain sits at the heart of the car, with carbon fibre main chassis components and extensive aluminium hardware for a robust, lightweight build. Full bearings throughout, CVD drive shafts and a metal gear differential complete a specification aimed at smooth, efficient running.

Engineered for adjustability and control, the LMX M-chassis features aluminium shocks and full turnbuckles to help dial in handling. An aluminium motor mount, servo mount, centre drive shaft and spur gear hub provide solid, reliable foundations for the powertrain. With a compact 166 mm track width and an adjustable 208–210 mm wheelbase, this chassis is well suited to tight layouts where responsive handling is key.

Features

• Full bearing
• CVD drive shaft
• Carbon fibre chassis, upper deck, shock tower
• Aluminium motor mount
• Aluminium servo mount
• Aluminium centre drive shaft
• Aluminium spur gear hub
• Aluminium shocks
• Aluminium 12mm hex hub
• Metal gear diff
• Full turnbuckle

Specifications

• Drivetrain: Shaft drive 4WD

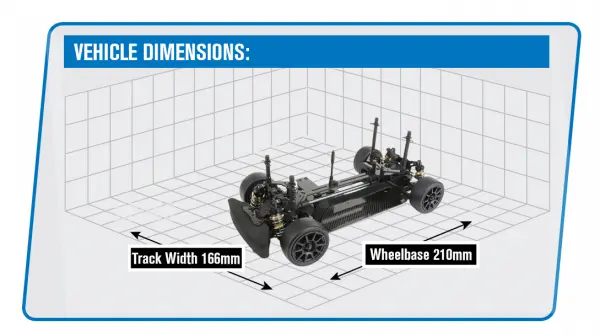

• Track width: 166 mm
• Wheelbase: 208–210 mm
• Internal ratio: 2.47
• Gear ratio: 4.56
• Tyre diameter: 55 mm
