Maverick Strada XT RED Brushless

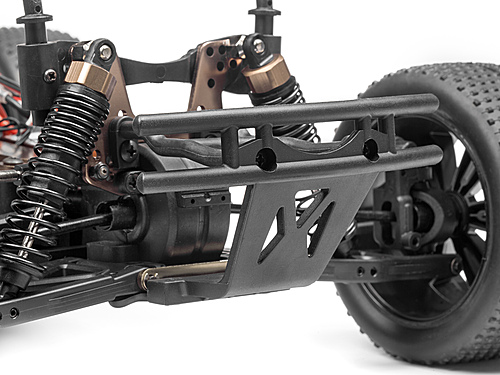

The Strada XT 4WD truggy is for the person that wants ground-hugging performance and the toughness to get over any obstacle! The Strada XT features a moulded tub chassis that provides durability and a stable and tough platform for a strong 4WD shaft drivetrain. Pre-built oil-filled shock absorbers and dual-wishbone independent suspension front and rear, give you supreme confidence on all driving surfaces. The MS-22 servo controls the steering through a dual-point steering system that features an integrated servo saver to protect the servo against crash damage. The Strada 4WD drivetrain uses efficient ball bearings throughout to give drivers maximum runtime and efficiency, and features a molded gear cover to keep dirt and debris away from the gears. Front and rear gear differentials easily transfer the motor's power to the pre-mounted tires at all four corners.

Maverick Strada Red XT Kit Features:

• MM-22BL 3215KV brushless motor with 4mm gold-plated plugs
• MSC-30BL-WP brushless FWD/Brake/Reverse Waterproof ESC with deans connector
• MBP-26 3000mAh Ni-MH battery
• MS-22 high-strength steering servo
• MTX/MRX-243 2.4GHz transmitter and receiver with built-in failsafe

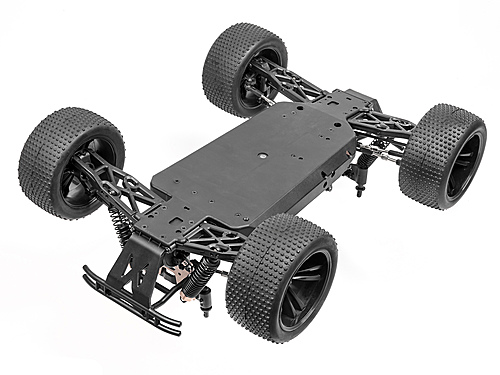

• Moulded tub chassis with optimised weight distribution
• Fully adjustable suspension
• Battery strap will accept both stick packs and side-by-side cells

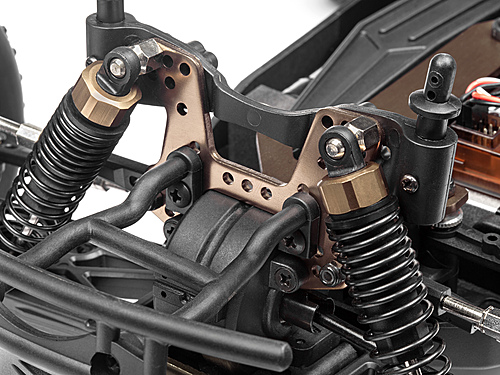

• 4 oil-filled rebuildable shocks with coil-over springs
• Aluminum gold anodised shock tops
• Fully independent double wishbone suspension
• Tough C-hub front steering knuckles
• Tough efficient 4wd shaft drive train
• Fully ballraced drive train
• Aluminum gold anodised upper deck
• Aluminum gold anodised lightweight centre shaft
• Pre-cut body factory-finished
• Fully adjustable turnbuckles all round
• Front and rear moulded bumpers
• Twin-point steering with integrated servo saver
• Moulded protective gear cover

Includes:

• 7.2V 3000mAh Ni-MH battery stick pack
• Multi-region wall battery charger

Items Required:

• 4 x AA Batteries

Specification:

• Length: 420mm
• Width: 310mm
• Height: 165mm
• Wheelbase: 270mm
• Weight: 1.85kg

Download PDF instructions for #MV12622 (21.6 MB)
