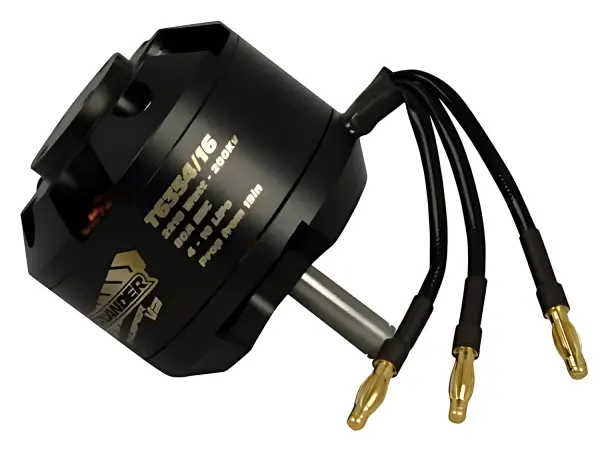

Overlander Tornado Thumper V3 6354/16 200 KV - Brushless Outrunner RC Motor

Brand: Overlander

Part No: OL-3103

£80.73 ~~RRP £84.98~~

Shadow Stock: Usually ships within 4-5 days

Request Price Match Ask a Question Write a Review

The Overlander Tornado Thumper V3 6354/16 200 KV (OL-3103) is a high-torque 63 mm brushless outrunner designed to deliver dependable, high-output performance. Rated at 2210 W and weighing 471 g, this 200 KV powerplant supports wide cell counts and larger propellers, making it a solid choice for robust electric power setups where smooth throttle response and efficiency are essential.

Precision manufacturing and material quality are at the core of the Thumper range. Components are CNC-machined and finished in Overlander’s signature black coating to aid heat dissipation. Premium neodymium magnets and high-temperature winding wire help ensure reliability and long service life under demanding loads.

Key Specifications

KV: 200 KV
Power: 2210 W
Battery cells: 4–10S LiPo or 10–28 NiMH
Recommended ESC: 80A
Idle current: 0.9 A
Motor diameter: 63 mm
Shaft diameter: 10 mm
Weight: 471 g
Configuration: Brushless outrunner
Suggested propellers: 18×10 (10S) to 20×10 (4S)

Build And Design Highlights

CNC-machined construction for accuracy and strength
Exclusive black finish to support heat dissipation
High-grade neodymium magnets
High-temperature winding wire for durability
Manufactured to Overlander’s demanding standards

Notes

The larger the propeller, the lower the recommended number of cells.
Always verify propeller load with a watt meter to confirm current draw is within safe limits.

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

Brushless Outrunner RC Motor - Tornado Thumper V3 6354/16 200KV

• 2210 watt motor
• 10-28 NiMh cells
• 4-10 LiPo cells
• Prop size from 18x10in to 19x10in (larger prop with less cells)
• Shaft Diameter 10mm Shaft
• Motor weight 471gm
• Speed Controller Recommended 80A ESC

The sheer power of Thumper brushless motors far exceeds many motors costing 2 - 3 times their price. All of the Overlander Thumper V2 motors are manufactured to Overlanders demanding standards, using the finest quality components. Our High Tech manufacturer uses state of the art CNC machine tools, giving the unique Overlander Thumper V2 design, this design means a lower weight motor with our exclusive black finish for better heat dissipation.

Every component of the motors are manufactured from the highest quality materials, only the best Neodym magnets are used along with special high temperature wire for windings, giving these motors reliability normally associated with much more expensive products.

Overlander Thumper motors are designed to provide reliable power for your model at respectable prices, a total performance package when used in conjunction with our XP2 Speed Controllers.

Product SKU KV (rpm/v) LiPo Cells (S) NiMH Cells (S) Idle Current (a) ESC (a) Power (w) Weight (g) Prop Size Shaft (mm) From To T2822/27 V3 2973 1200 2 - 4 6 - 12 0.5 20 85 28 7 x 5 (4S) 8 x 5 (2S) 3.2 T2826/09 V3 2974 1900 2 - 4 6 - 12 1.5 20 105 49 7 x 5 (4S) 8 x 4 (2S) 3.2 T2826/18 V3 2975 1000 2 - 4 6 - 12 0.5 20 140 40 8 x 5 (4S) 9 x 4.7 (2S) 3.2 T2836/08 V3 2976 1120 2 - 4 6 - 12 1.2 20 270 67 9 x 6 (4S) 11 x 5.5 (2S) 4 T3530/14 V3 2977 1110 2 - 4 6 - 12 1.5 30 340 70 9 x 5 (4S) 10 x 4.7 (2S) 4 T3536/05 V3 2978 1500 2 - 4 6 - 12 2.8 30 408 98 8 x 4 (4S) 10 x 6 (2S) 4 T3536/06 V3 3100 1300 2 - 4 6 - 12 2.4 30 442 98 9.5 x 4 (4S) 10 x 5 (2S) 4 T3536/08 V3 2979 1050 2 - 4 6 - 12 1.5 30 442 98 9.5 x 5 (4S) 11 x 5.5 (2S) 4 T3542/05 V3 3101 1250 2 - 4 6 - 12 2 60 710 129 9 x 5 (4S) 11 x 6 (4S) 5 T3548/05 V3 2980 900 2 - 4 6 - 12 1.5 60 710 157 11 x 8 (4S) 14 x 7 (2S) 5 T4240/10 V2 1412 890 3-7 10 - 20 2.6 60 540 127 12 x 6 (7S) 14 x 8 (3S) 5 T4260/06 V3 2985 500 3-7 10 - 20 4.3 60 900 264 13 x 6 (7S) 15 x 8 (3S) 5 T5045/10 V3 2986 720 3-8 10 - 22 1.7 80 860 188 12 x 6 (8S) 14 x 8 (3S) 6 T5055/06 V3 2987 580 3-8 10 - 22 2.3 80 1280 279 14 x 6 (8S) 17 x 10 (3S) 6 T5065/08 V2 857 320 3-8 10 - 22 1.9 80 1600 382 16 x 8 (8S) 19 x 10 (3S) 8 T6354/16 V3 858 200 4-10 10 - 28 0.9 80 2210 471 18 x 10 (10S) 20 x 10 (4S) 10 BM400 V3 1688 2100 2 - 4 6 - 12 0.8 30 220 114 6 x 4 (2-4S) 3.2 BM600 V3 848 1500 3-5 10 - 16 1.4 60 450 177 8 x 6 (5S) 9 x 4 (3S) 5

NOTE: Propellers should always be checked with a Watt Meter to determine the correct diameter snd pitch. The larger the propeller, the lower the number of cells.

Overlander Tornado Thumper V3 6354/16 200 KV - Brushless Outrunner RC Motor Specification:

SKU: 3103
Motor Diameter (mm): 63
Weight (g): 471
KV: 200
Wattage: 2210
Inrunner/Outrunner: Outrunner
ESC: 80A

Key Info:

Brand: Overlander
Part No: OL-3103
Barcode: 5060470210427

Standard Shipping

£3.95 to most of the UK

Express Shipping

£6.95 to most of the UK

Worldwide Shipping

Available at checkout

Reviews

No specific product reviews yet, why not write one?

WRITE A REVIEW

Name

Rating

Your Review

All reviews are subject to moderation

Questions & Answers

Real questions from real customers. Why not ask your own?

I bought this motor but just realised the shaft is 12mm, do you have a prop (preferably wooden) to fit this diameter without drilling a bigger hole? or if not which tool or adaptor is best to use.

Dinis / 14th September 2022

We do not do any props with 12mm holes but you can use this SCH-CR797

Steve W @ Wheelspin Models

Which esc would you recommend for the Overlander Tornado Thumper V3 6354/16 200 KV - Brushless outrunner rc motor https://wheelspinmodels.co.uk/i/271454/

Steve Langley / 26th July 2020

An 80+ Amp ESC should be fine.

EG say OL-2720 or HW30203200

Ben @ Wheelspin Models

ASK A QUESTION
